Product Description

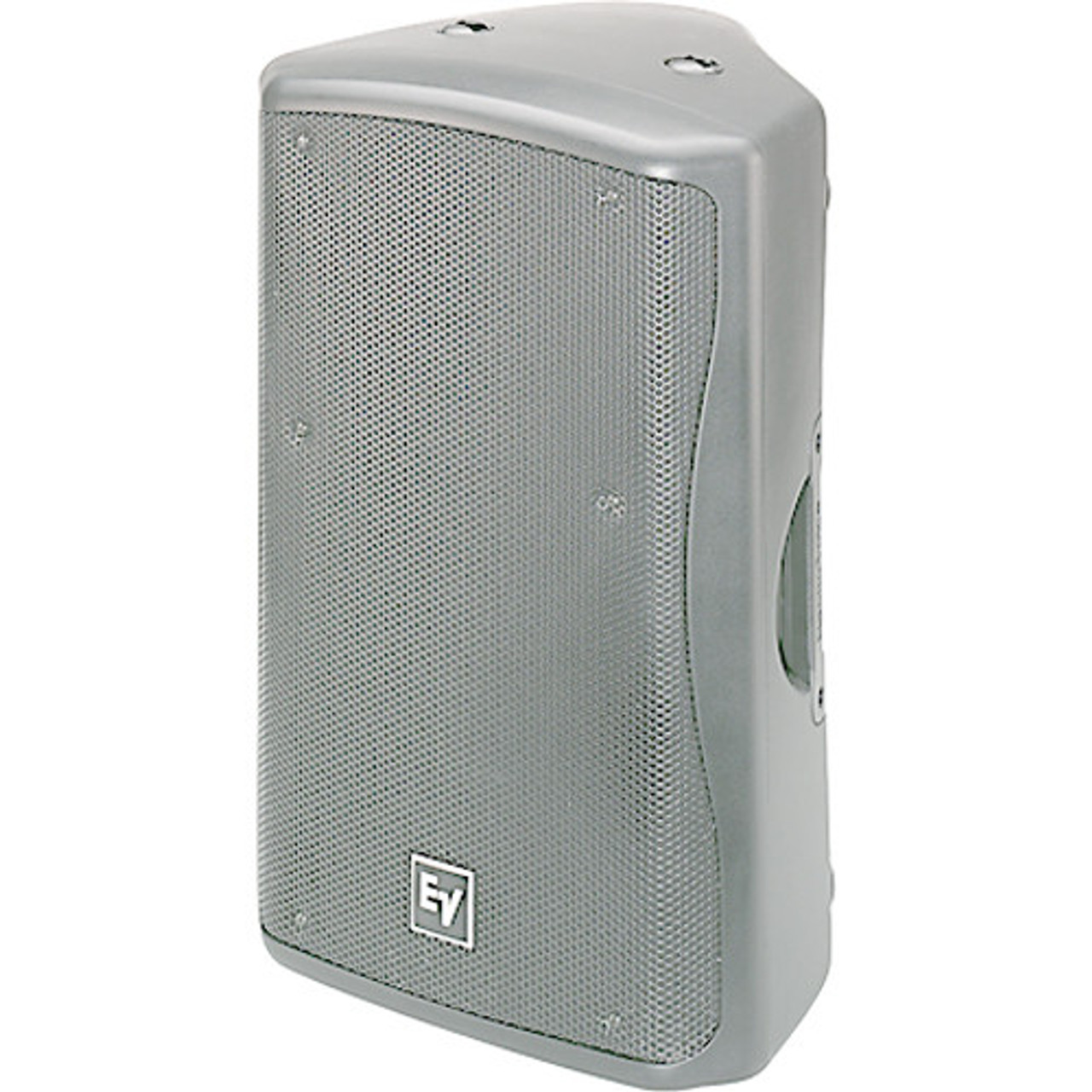

Electro-Voice ZX5-60W 15" 2-Way 600W Passive Loudspeaker with 60° x 60° Horn (White)
Overview
The white Electro-Voice ZX5-60 is a 15" 2-way 600W passive loudspeaker offering high-performance, full-range sound reinforcement for installed applications in houses of worship, concert venues, arenas, and stadiums. Use it in your main PA system, expand your fills, or treat it as a floor monitor on stage. The ZX5-60's 15" woofer and neodymium/titanium high-frequency compression driver yield a 58 Hz to 18 kHz frequency response and boast a 600W continuous power handling rating (2400W peak). The high-frequency driver is mounted in a 60° x 60° horn for long-throw and cluster applications.
The ZX5-60 features selectable bi-amp or passive crossover operation, allowing it to be properly driven by one or two power amplifiers. The two Neutrik speakON inputs are wired in parallel to ensure simple, secure connectivity to your power amps and other speakers. The lightweight polypropylene cabinet is outfitted with anchor plates, suspension points, and a carry handle to accommodate a variety of mounting configurations.
Features
- For Demanding Live Stage Applications
- 15" Woofer, Neodymium/Titanium HF Driver
- 600W Continuous Power Handling
- 58 Hz to 18 kHz Frequency Response
- 60° x 60° Coverage Pattern
- Adjustable Angle for Floor Monitor Use
- Dual Neutrik speakON Inputs
- Passive / Bi-Amp Selectable
- Anchor Plates, Suspension Points, Handle
- Lightweight Polypropylene Cabinet
Specifications
Enclosure Type | |
Total Power Capacity | |
System Impedance |
HF Driver | |
HF Voice Coil | |
LF Driver |
Frequency Range | |
Frequency Response | |
Maximum SPL | |
Coverage Angle | |
Speaker Sensitivity | |
Protections |
Audio I/O |
Crossover |
Mounting | |
Handles | |
Cooling | |
Environmental Resistance | |
Construction Material | |
Dimensions | |
Weight |
