Product Description

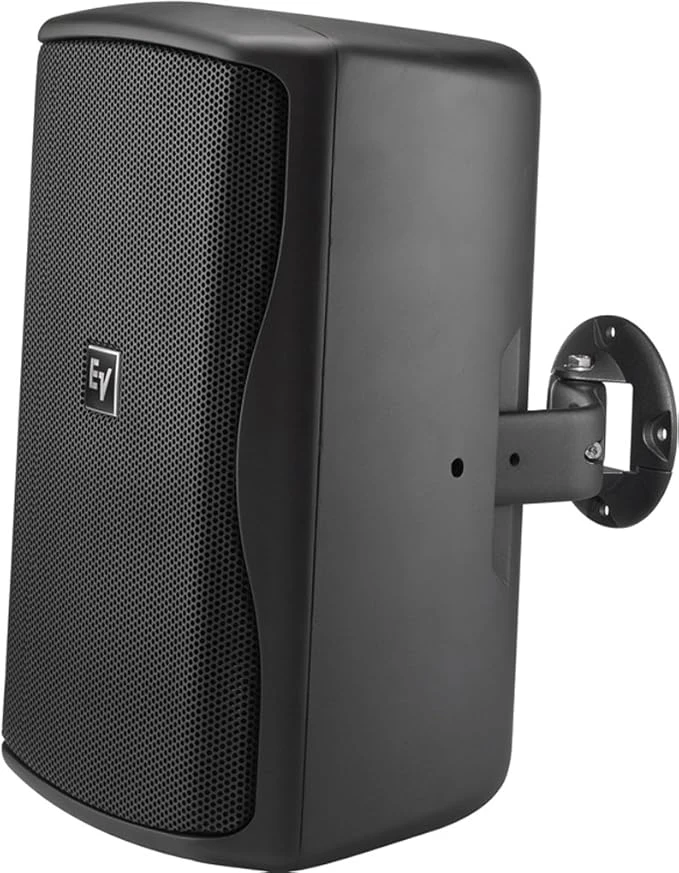

Electro-Voice ZX1I-100 8" 2-Way 200W Weather-Resistant Passive Loudspeaker with 100 x 100° Horn
Overview

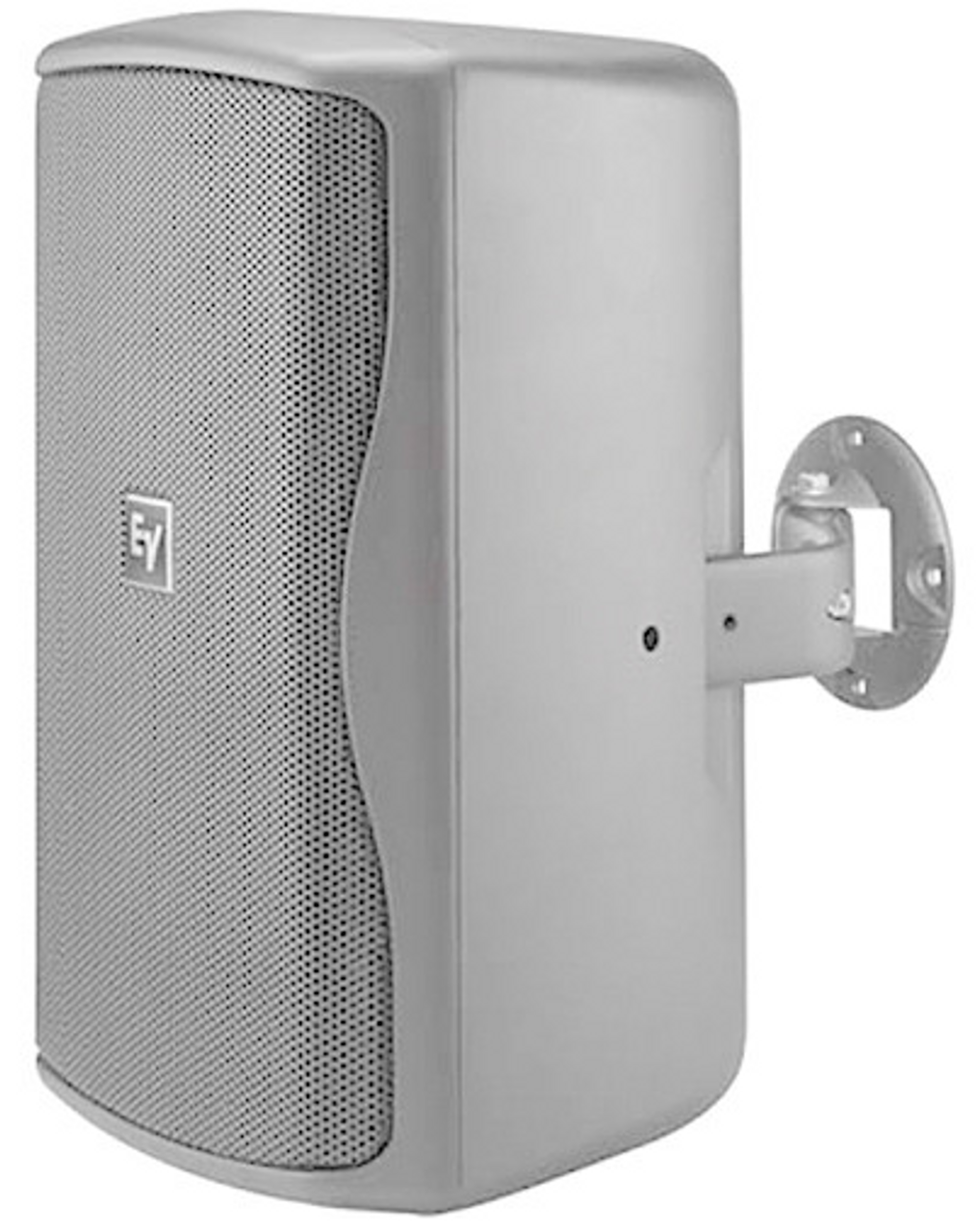

The Electro-Voice ZX1i-100 is an 8" 2-way 200W weather-resistant passive loudspeaker offering high-performance, full-range sound reinforcement for indoor and outdoor installed applications in arenas, stages, and patios. The ZX1i-100's 8" woofer and titanium high-frequency compression driver yield a 60 Hz to 20 kHz frequency response and boast a 200W continuous power handling rating (800W peak). The high-frequency driver is mounted in a rotatable 100 x 100° horn for broad, even dispersion.
The input to the loudspeaker—provided by a removable 4-pin Euroblock connector—is fed to an internal crossover that properly distributes frequencies to the drivers. The lightweight ABS resin cabinet is outfitted with a heavy-duty QuickSAM mounting system, which enables fast and secure installation. With its molded enclosure design, two-layer grille, and IEC 529 and MIL-SPEC-810 ratings, the ZX1i-100 loudspeaker is built to withstand the stress of outdoor use
Features
- For Indoor/Outdoor Sound Reinforcement
- 8" Woofer, 1.25" Titanium HF Driver
- 200W Continuous Power Handling
- 60 Hz to 20 kHz Frequency Response
- Rotatable 100 x 100° Coverage Pattern
- Weather-Resistant Design
- Internal Crossover
- 4-Pin Euroblock Connector
- Heavy-Duty Strong-Arm Mounting Bracket
- ABS Resin Cabinet with 2-Layer Grille
Specifications
Configuration | |
Enclosure Type | |
Total Power Capacity | |
System Impedance |
HF Driver | |
HF Voice Coil | |
LF Driver |
Frequency Range | |
Frequency Response | |
Maximum SPL | |
Coverage Angle | |
Speaker Sensitivity | |
Protections |
Audio I/O | |
Network I/O | |
USB I/O | |
Wireless Connectivity |
Crossover | |
EQ |
Mounting | |
Handles | |
Construction Material | |
Dimensions | |
Weight |
