Product Description

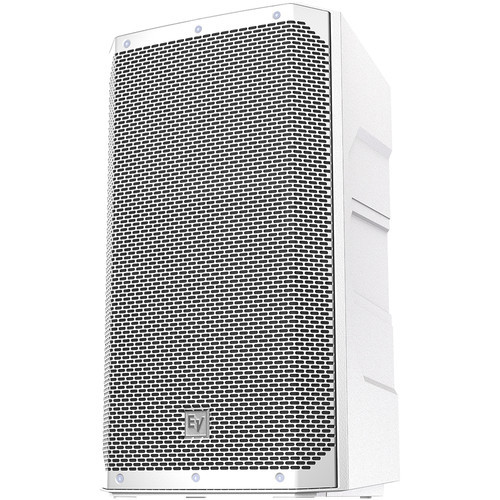

Electro-Voice SX300WE 12" 300 Watt 2 Way Passive Loudspeaker - White
Features
- Compact, portable sound reinforcement
- Designed for use alone or in arrays
- Cast-frame DL12BFH woofer
- 1.25-inch DH3/2010A titanium HF compression driver
- 65º x 65º Constant-directivity Varipath horn
- Ring-Mode Decoupling (RMD) for increased intelligibility
- Power handling: 300 W continuous, 1200 W peak
- Dual Neutrik Speakon (R) high-current connectors
- Trapezoidal black or white polypropylene enclosure
- Rubber feet and mating sockets for stacking
- Integral handles, pole mount
Specs
| Frequency Range (-10 dB) | 50 - 20000kHz |
| Weight Net | 39.02lbs (17.7kg) |
| Depth | 12.28" (312mm) |
| Width | 16.89" (429mm) |
| Height | 23.07" (586mm) |
| Available Color | Black or white |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 99dB |
| Chassis Size | 304.8 mm |
| Coverage (Nominal -6 dB) H | 65° (Const.-dir. horn) |
| Coverage (Nominal -6 dB) V | 65° (Const.-dir. horn) |
| Crossover Frequency | 1500Hz |
| Directivity Index | 11.1dB (+2.4/-4.1 dB) |
| Enclosure Material | Copolymer Composite |
| Family | Sx |
| Flying | Yes |
| HF Transducer | 1.25-inch DH3/2010A |
| Input Connections | 2 four-pin Speakon |
| Internal Crossover | Yes |
| LF Transducer | 12-inch DL12BFH |
| Max. SPL/1m (calc) | 131/123dB (Low Z/100V) |
| Minimum Impedance | 5Ω |
| Nominal Impedance (Passive) | 8Ω |
| Powered or Passive | Passive |
| Sensitivity 1 W/1 m | 99dB |
| Speaker Type | Full-Range, Mid-High, Two-Way |
| System Power Handling (Continuous/Program/Peak) | 300/1200Watts (Long-Term/Short-Term) |
| Weatherized | No |
| Woofer Size | 12inch |
