Product Description

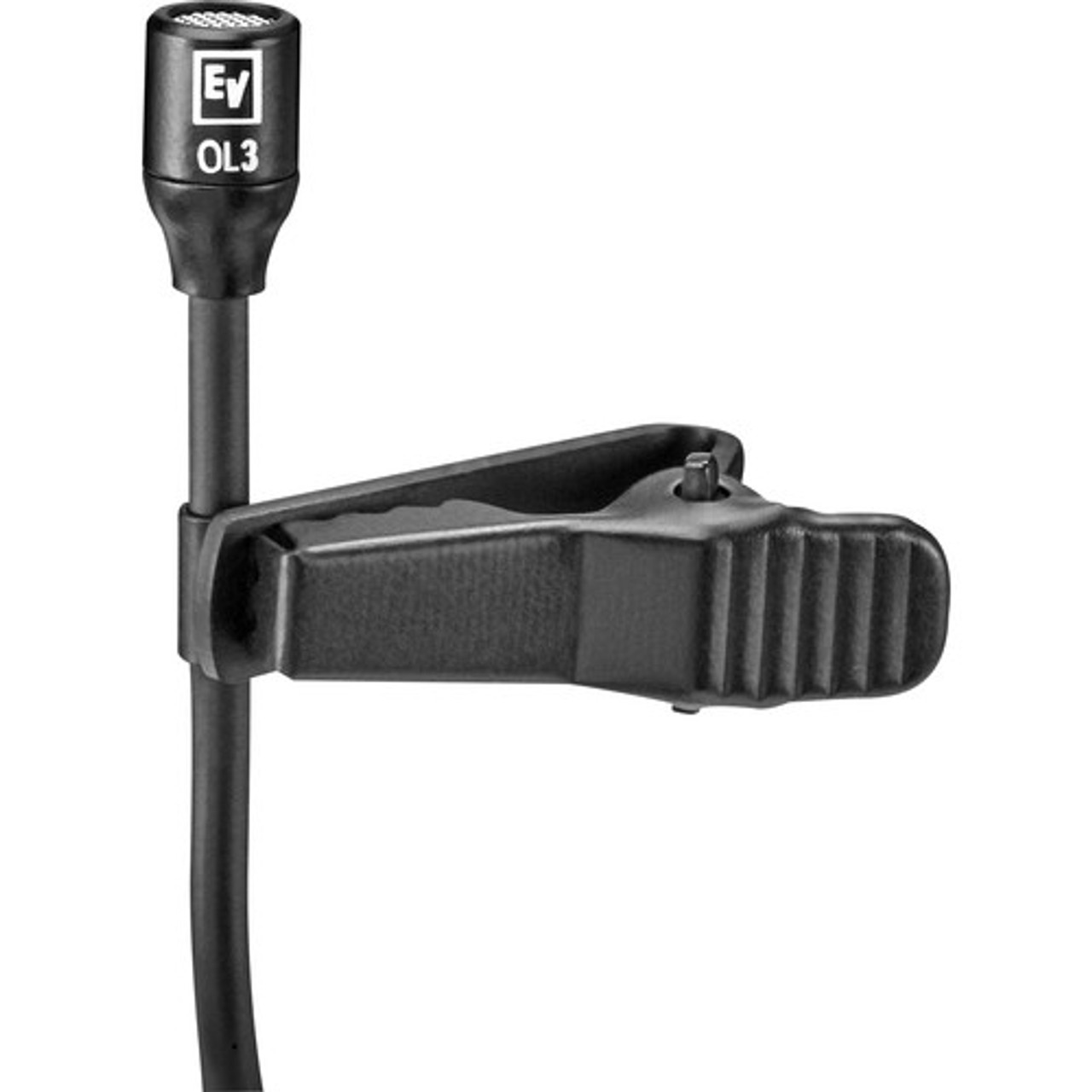

Electro-Voice RE3-ACC-OL3 Omnidirectional Lavalier Microphone with TA4F Connector
Overview
The RE3-ACC-OL3 Omnidirectional Lavalier Mic with TA4F Connector from Electro-Voice is a robust, general-purpose lavalier microphone. It can be used to capture audio suitable for presentation and public speaking applications where its sonic characteristics, coupled with its feedback-rejecting polar pattern, deliver a clear and intelligible voice.
The RE3-ACC-OL3's cardioid polar pattern provides acoustic isolation and gain whilst preventing situations where the ambient sound reinforcement system volume might cause other microphones to feedback. The 4- pin mini plug is compatible with all current Electro-Voice bodypack transmitters as well as many other brands that use the 4-pin mini connector convention.
In addition, the small clothing clip attaches the microphone securely to clothing items or surfaces, and the included foam windscreen is effective in reducing wind noise.
Features
- For Stage and Presentations
- Omnidirectional Polar Pattern
- Wide Dynamic Range
- Wide Frequency Response
- Foam Windscreen Reduces Wind Noise
- Includes Clothing Clip
Specifications
Microphone Type |
Lavalier
|
Polar Pattern |
Omnidirectional
|
Frequency Range |
60 Hz to 15 kHz
|
Maximum SPL |
130 dB SPL Peak
|
Output Connector |
1x TA4F/Mini-XLR 4-Pin Female
|
Power Sources |
Plug-In Power
|
Color |
Black
|
Microphone
Microphone Type |
Lavalier
|
Sound Field |
Mono
|
Polar Pattern |
Omnidirectional
|
Included Tone Caps |
No
|
Performance
Frequency Range |
60 Hz to 15 kHz
|
Maximum SPL |
130 dB SPL Peak
|
Sensitivity |
17.5 mV/Pa (Open Circuit Voltage, 1 kHz)
|
Connectivity
Output Connector |
1x TA4F/Mini-XLR 4-Pin Female
|
Cable Length |
57.1" / 145.03 cm
|
Power
Power Sources |
Plug-In Power
|
Operating Voltage |
3 to 9 V
|
Physical
Color |
Black
|
Dimensions |
ø: 0.2 x L: 0.36" / ø: 5.08 x L: 9.14 mm (Capsule)
|
Weight |
0.62 oz / 17.58 g
|
Other Details
Bosch Security Systems (d/b/a Bosch Building Technologies) (“Bosch Building Technologies”) provides a product warranty for DYNACORD products. The product warranty covers the material and workmanship of the products. Warranty terms and conditions are laid down in section A.
A: Product warranty
Bosch Building Technologies (in the following “warranty provider”) provides a warranty to the final customer (consumer) under the conditions stated herein that the products are free of defects in material and workmanship. The warranty period for DYNACORD products is as follows and from the invoice date: Five years for IPX and TGX Multi-channel amplifiers Three years for other electronic products One year for accessories & hardware The product warranty applies exclusively to DYNACORD products of Bosch Building Technologies
B: Warranty conditions
1. General 1.1 DYNACORD products from Bosch Building Technologies are sold in the United States and Canada through a network of authorized distributors, dealers, resellers and other authorized sources selected by Bosch Building Technologies. If the product is purchased from an unauthorized distributor, including retailers, online sellers, or mail order sellers, it will void the manufacturer’s warranty. To verify whether the distributor or seller is an authorized distributor of Bosch Building Technologies, please contact Bosch Building Technologies Customer Service at (800) 289-0096.
1.2 Warranty is granted only to the final customer. Warranty does not apply to distributors, and installation companies or second-hand purchasers of the products. In the case of the product being installed, the warranty is transferrable to second customers as long as the products stay in the same installation (e.g. building or campus). Final customers are all parties who have purchased products for their own needs (not for the purpose of resale) or who have purchased a building in which the products were first installed. The products must be installed in the installation in which it was first operated.
1.3 This warranty shall exist independently of legal warranty claims against the vendor of the products irrespective of non-contractual claims. This warranty is an independent, voluntary and complementary service provided by Bosch Building Technologies to the final customer. It does not affect the quality agreements between vendor and purchaser.
1.4 This product warranty shall apply within the United States and Canada. Claims arising from or in connection with this warranty must be filed in writing within the applicable warranty period.
