Product Description

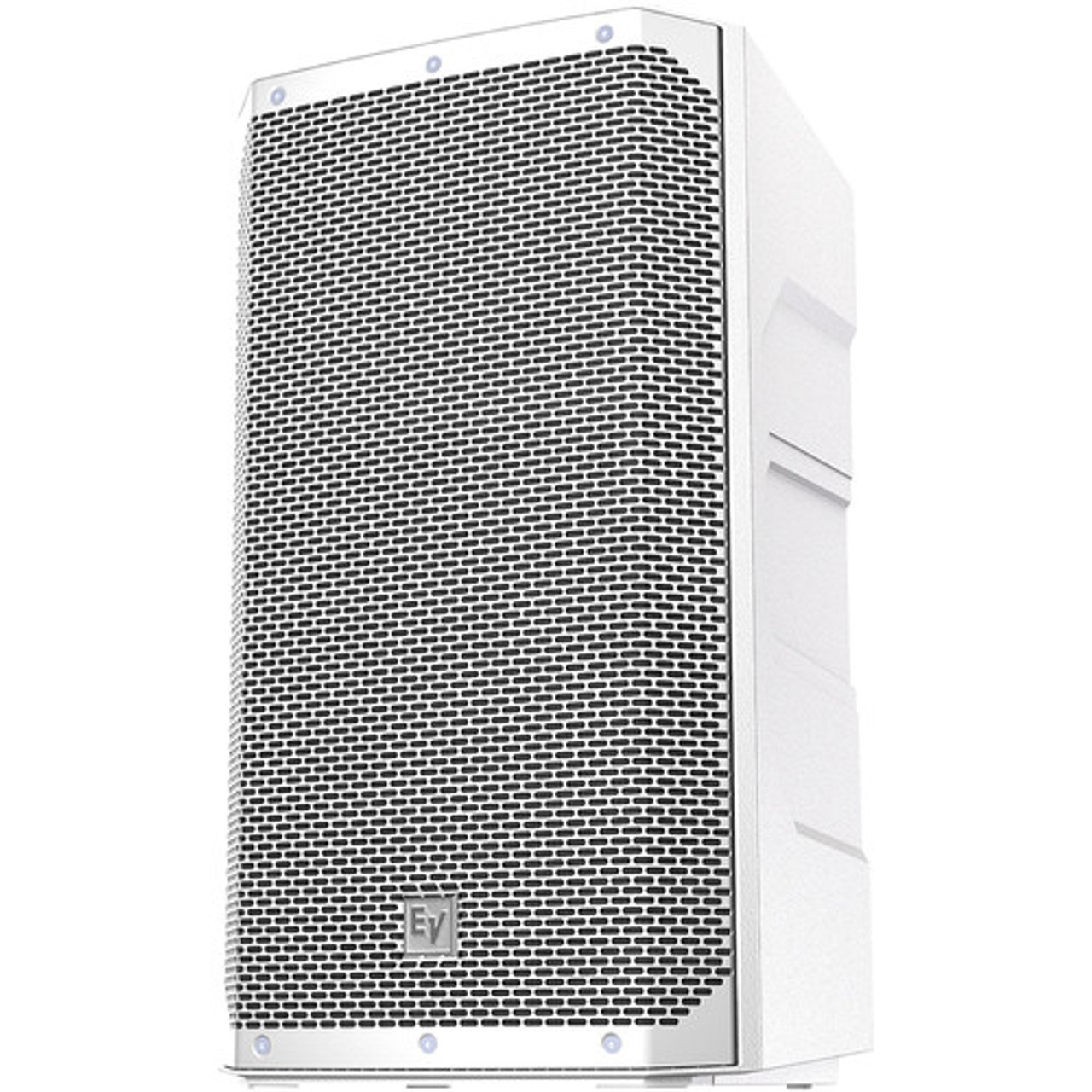

Electro-Voice ELX200-12-W 12" 2-Way 1200W Passive Loudspeaker (White, Single)
Overview
The white Electro-Voice ELX200-12 is a 12" 2-way 1200W passive speaker designed to provide reliable, full-range frequency reproduction and flexible installation for sound engineers and performers in live stage applications, theaters, DJ setups, and mobile rigs. It has a 1200W power rating and features a 12" woofer and a 1" titanium high-frequency compression driver, yielding a frequency range of 51 Hz to 20 kHz (-10 dB) and a frequency response of 77 Hz to 17 kHz (-3 dB).
Connect the output of your amplifier to either of the two NL4 speakON input jacks. Being passive, the ELX200-12 requires no power source; only the audio connection is necessary. The polypropylene enclosure and steel grille ensure a combination of durability and light weight. Three carry handles allow easy loading and unloading at gigs. The loudspeaker can be placed vertically or horizontally and integrated pole mounts and three M10 suspension points enable versatile mounting and orientation.
Features
- For Live Stage, DJ Setups, Mobile Rigs
- 12" Woofer, 1" HF Driver
- Handles up to 1200W Peak
- 51 Hz to 20 kHz Frequency Range
- 77 Hz to 17 kHz Frequency Response
- Dual NL4 speakON Connectors
- Polypropylene Enclosure
- Integrated Handles and Suspension Points
Specifications
Configuration | |
Enclosure Type | |
Total Power Capacity | |
System Impedance |
HF Driver | |
LF Driver |
Frequency Range | |
Frequency Response | |
Maximum SPL | |
Coverage Angle | |
Speaker Sensitivity |
Audio I/O |
Crossover |
Mounting | |
Construction Material | |
Dimensions | |
Weight |
