Product Description

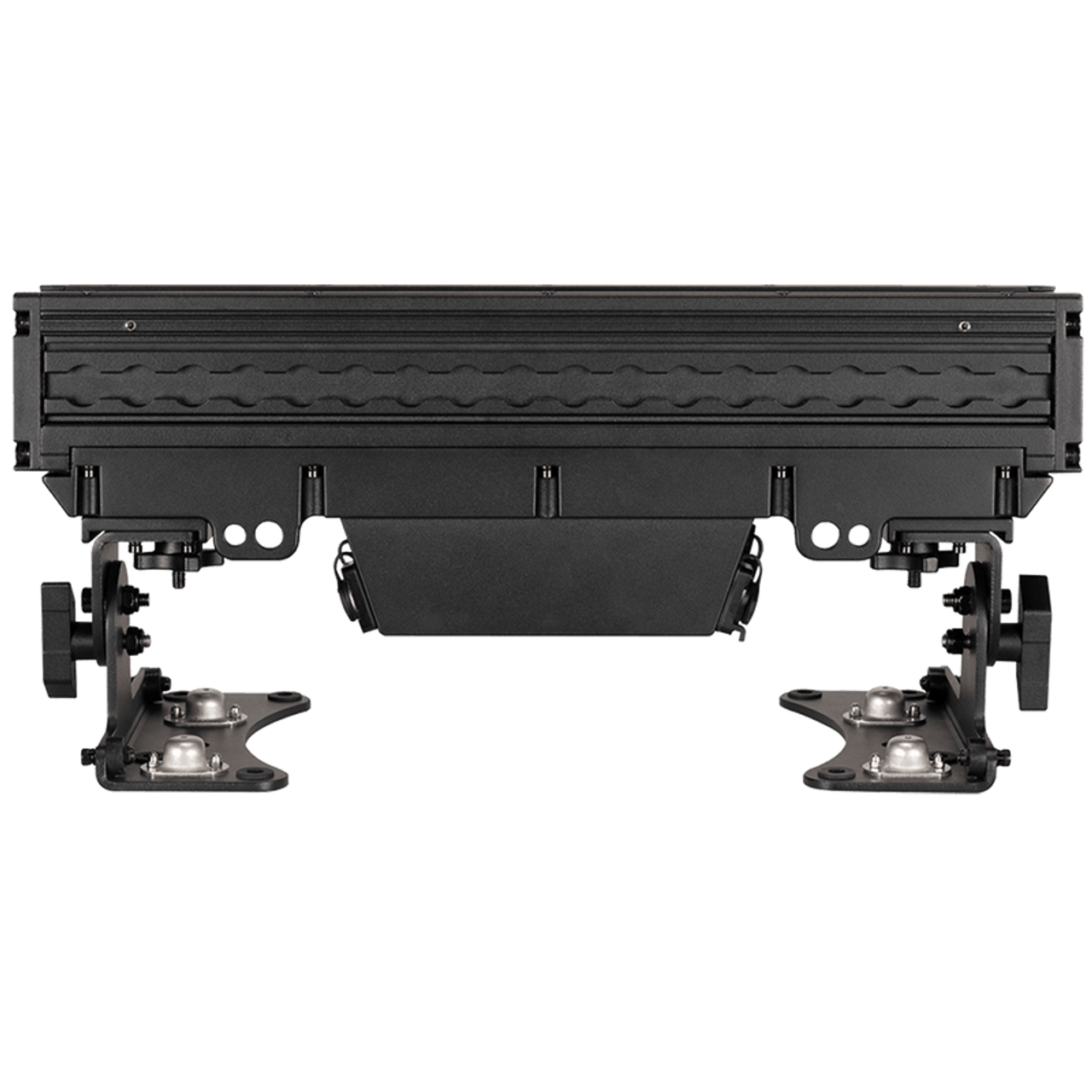

Elation VOL405 VOLT+ BAR S
Overview
The VOLT+ BAR S is the next evolution in creative LED batten solutions, now featuring a high-performance battery system for ultimate flexibility. Combining the latest in LED color technology with the freedom of wireless operation, this fixture empowers designers to push creative boundaries without the constraints of power cables.
Building on the success of Elation’s SIX+ BAR S and L, the VOLT+ BAR S offers the same high output, expanded color spectrum, and a superior quality of light. Equipped with powerful 20W RGB+Lime+Amber+UV LEDs and boasting an impressive CRI of 90.9, this fixture delivers stunning, high-fidelity color rendering with beautifully homogenized output. Its advanced optical system ensures even light distribution, while the proprietary RGBLA+UV engine produces exceptional whites and vibrant primaries with no color fringing. The extra-large 50 mm lenses make it ideal for direct view applications, while individual cell control opens up a world of design possibilities.
Designed for true mobility, the VOLT+ BAR S features an integrated high-capacity battery for untethered operation in any environment. Whether it's used in a temporary outdoor setup, a fast-paced production, or an installation where power access is limited, the battery system ensures hours of reliable performance. A built-in battery management system optimizes power usage, while multiple charging options make recharging simple and efficient.
Measuring half a meter in length, the VOLT+ BAR S houses six RGBLA+UV LEDs and delivers over 5020 lumens of output. It features fully variable color temperature adjustment (2400K - 8500K), CMY emulation, and a virtual gel library for seamless color customization. The integrated accessory slot accommodates the included frost filter, with optional ND filters and other optics available. The fixture also ships with a glare shield for wall wash applications.
For maximum versatility, the VOLT+ BAR S’s innovative housing allows for end-to-end interconnection and includes an integrated L track on three sides for flexible mounting and positioning. Adjustable trunnions can be fixed at multiple points, allowing optimal placement around objects or obstacles.
Encased in a rugged, fully IP65-rated housing, the VOLT+ BAR S is built to withstand any environment—indoors or outdoors. A durable C4-M marine-grade coating protects against harsh conditions, including salty coastal air, while fanless convection cooling ensures silent operation, making it ideal for noise-sensitive settings.
With wired and wireless control options—including DMX/RDM, IR Remote, Prebuilt & Custom Standalone Effect Sequences, proprietary Aria x2 wireless device management and NFC Configuration—the VOLT+ BAR S delivers seamless system integration and effortless control.
Break free from power limitations and set your creativity in motion with the VOLT+ BAR S!
Features
- (6) 20W RGBLA+UV LED Array
- 5020 Total Fixture Lumen Output (Sphere)
- 90.9 CRI
- Battery or AC Operation
- Extra Large 50mm Lenses
- Beam Angle: 30°x 14° (Frost Filter Included)
- Full Pixel Control
- Integrated L Track for Flexible Mounting
- Unique End-to-End Interconnection System
- >12hr Maximum Battery Run Time
- IP65 Rated
Includes
- Safety Cable
- IP65 Locking Power Cable
- Frost Filter
- Glare Shield
- Fixture Interconnect Splice
Specifications
Source
- (6) x 20W RGBLA+ UV LEDs
- 30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data
- Total Lumen Output:
- 5,020 (Integrating Sphere)
- CRI- 90.9
- TLCI- 80
- No Lens
- Beam Angle: 20°
- Field Angle: 33°
- Included Frost
- Beam Angle: 30°
- Field Angle: 60°
Effects
- Prebuilt & Custom Standalone Effect Sequences
- Full Pixel Control
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
- COLOR
- RGBLA+ UV Color Array
- CMY Emulation
- Variable CCT 2400K - 8500K
- Virtual Gel Swatch Book
