Product Description

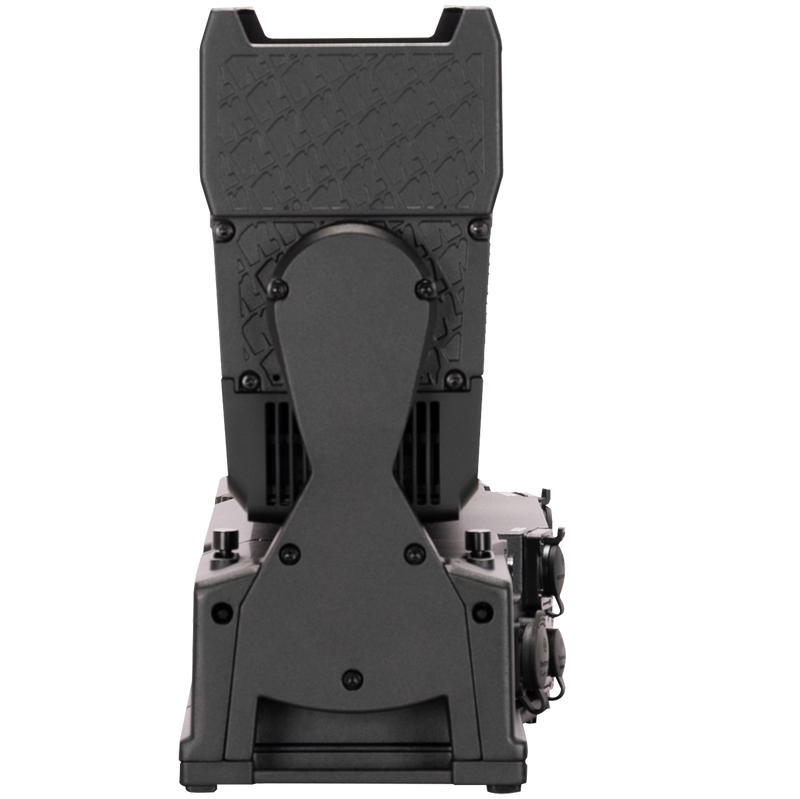

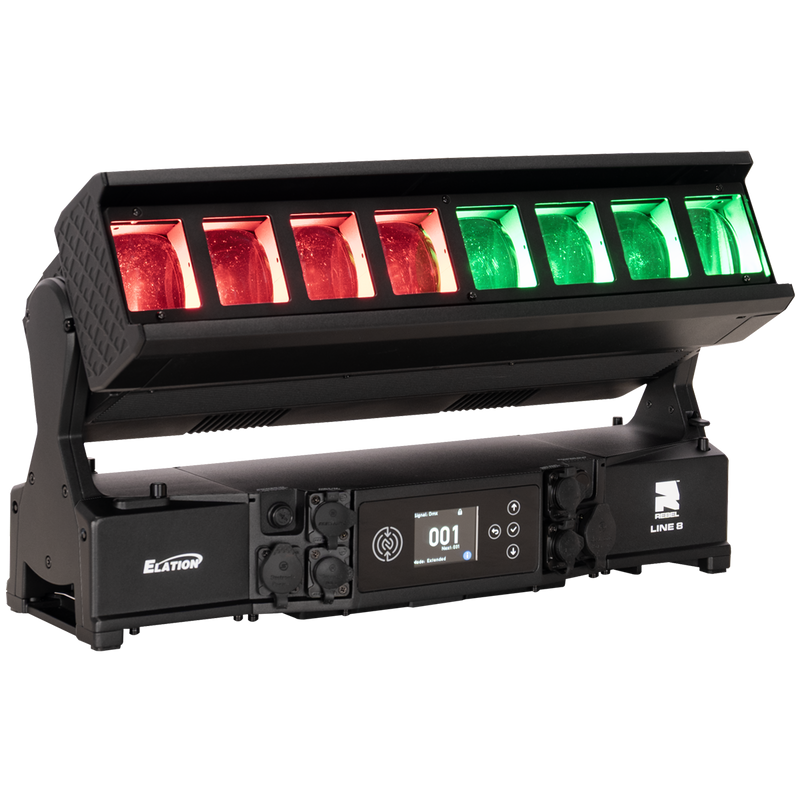

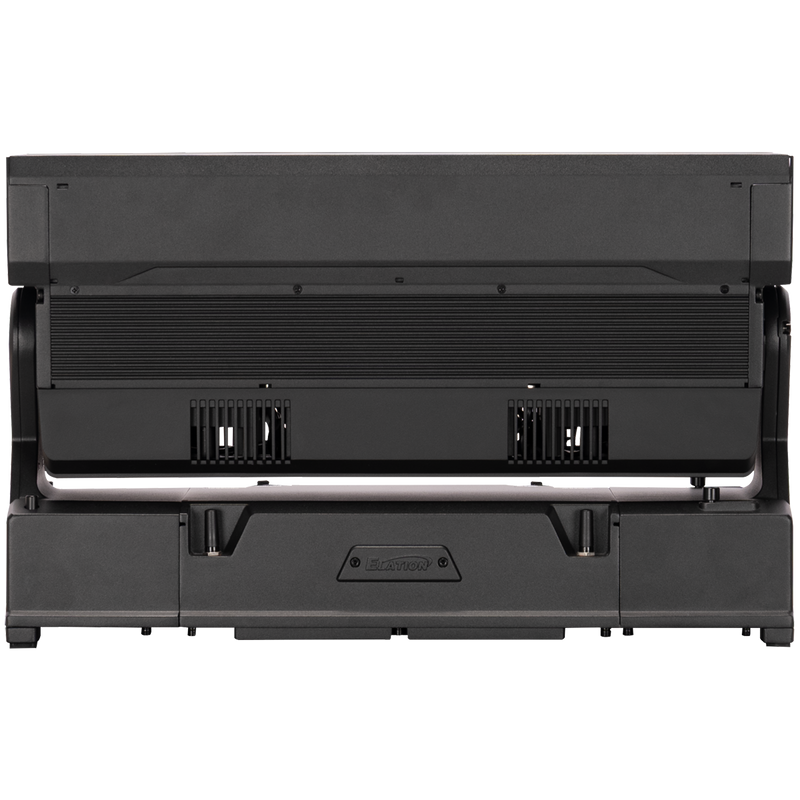

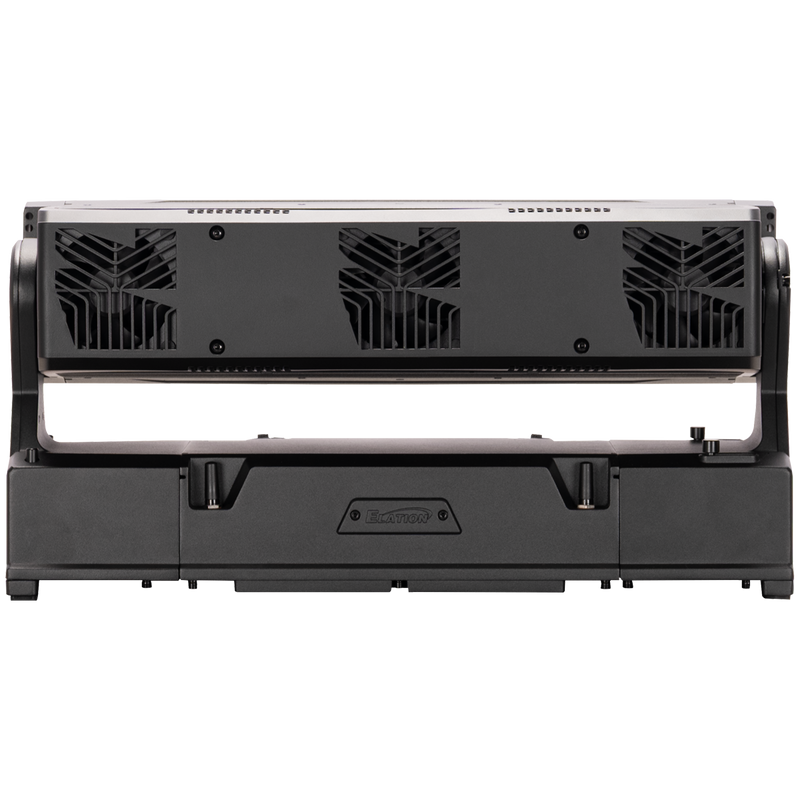

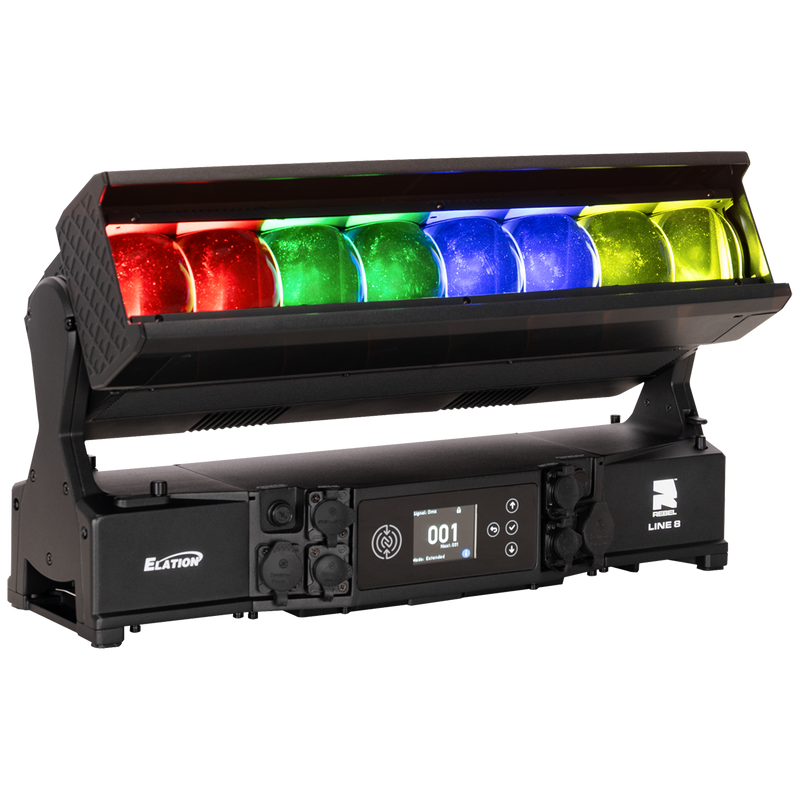

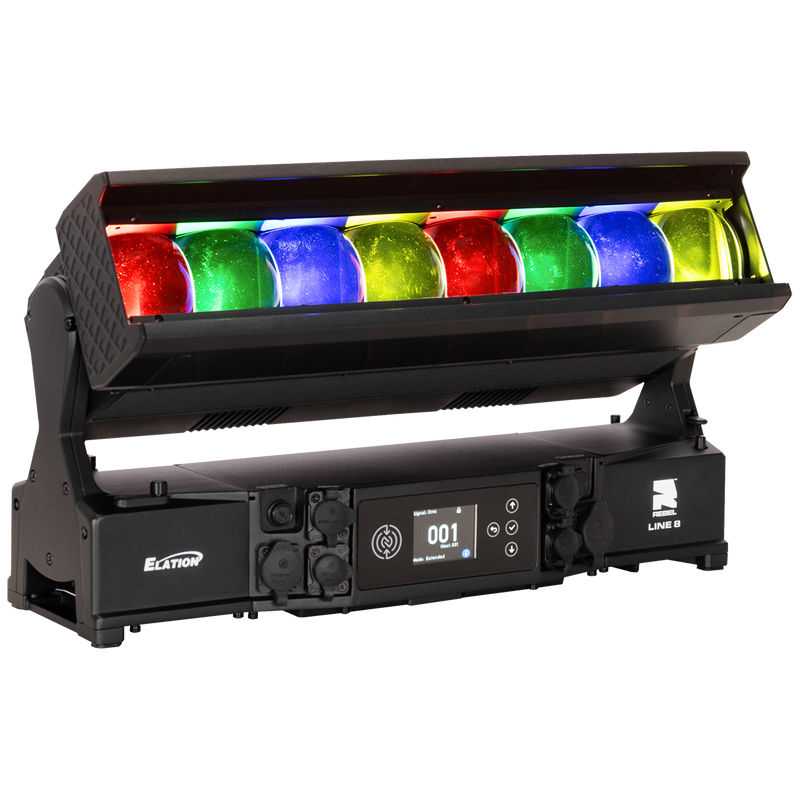

Elation REBEL LINE 8 8x RGBL IP65 Tilt FX Bar
Overview
The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP55 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548 lumens of relentless, full-spectrum brilliance.
A seamless linear lens system and rapid 210° tilt movement create bold, continuous beams that transform effortlessly from razor-sharp aerials to a smooth, enveloping wash. The integrated Sparkle Beam FX adds refined texture, while the SparkX cool-white crossing beams cut through the scene with crisp, unmistakable definition.
A built-in mechanical alignment system allows the REBEL LINE 8 to connect together with other LINE fixtures, forming flawless beam lines and high-impact pixel effects that read as one continuous visual element across any stage. Paired with its rugged IP55 construction and compact, tour-ready form, the REBEL LINE 8 is built for environments demanding bold intensity, sweeping kinetic motion, and advanced pixel artistry for any stage.
Features
- (8) 60W RGBL LEDs with Pixel Control
- (16) 5W CW SparkX LEDs with Pixel Control
- 11,548 Total Fixture Lumen Output (Sphere)
- 4° - 35° Beam Angle
- Fast and precise 210° Tilt Rotation
- IP55 Tilt FX Fixture
Includes

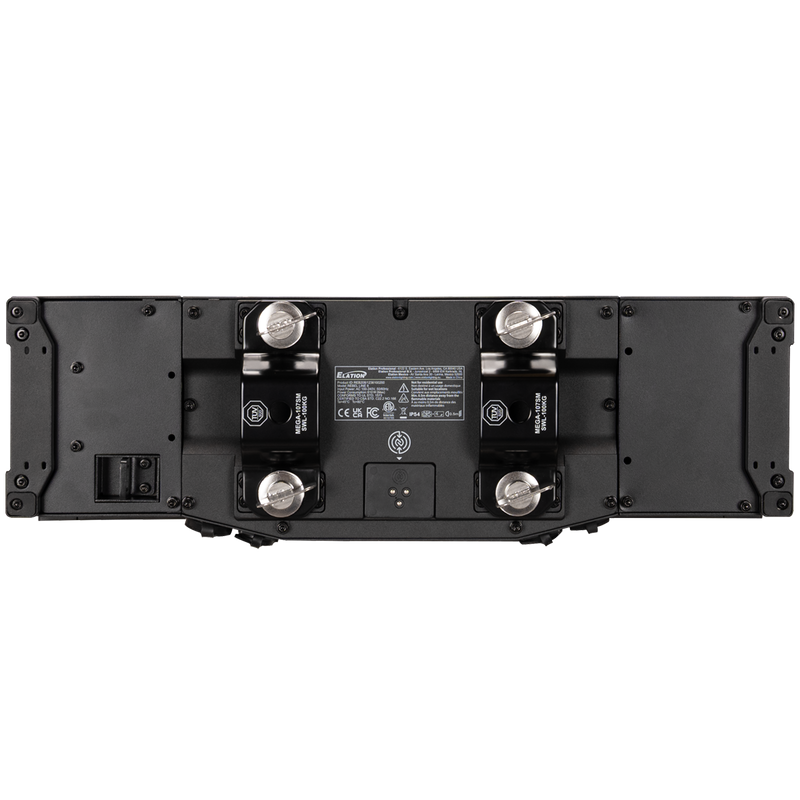

- Omega Brackets (x2)
- Blank Name Plate
- Front Louver/Grid
- Diffusion Filter
- Safety Cable IP65 Rated
- IP65 Locking Power Cable
Specifications
SOURCE
- (8) 60W RGBL LEDs
- (16) 5W CW SparkX LED Pixels
- 30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- Total Lumen Output:
- Integrating Sphere
- All LED: 11,548 Lumens
- RGBL LED: 7,128 Lumens
- CW LED: 4,752 Lumens
- CRI 82
- Zoom Range 4° - 35°
EFFECTS
- Motorized Zoom
- Full Pixel LED Control
- SparkX LED Beam Effect
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
- Tilt Angle: 210°
COLOR
- RGBL LED Array
- CW SparkX LED Array
- Variable CCT 2400K - 8500K
- Virtual Gel Swatch Book
CONTROL / CONNECTIONS
- 3 DMX Channel Modes (22/30/70 channels)
- DMX Adjustable Refresh Rate (900 -25000 Hz)
- 4 Button Control Panel, LED Display
- Aria x2 Wireless Device Management
- NFC Configuration
- DMX, RDM, Art-NET, sACN Protocol Support
- IP65 Locking 5pin XLR Connector In/Out
- IP65 Locking RJ45 Ethernet Connector In/Out
- IP65 Locking Power Cable In/Out
SIZE / WEIGHT
- Length: 19.7 in (500mm)
- Width: 6.1 in (168mm)
- Height (head up): 13.4 in (342mm)
- Height (head 90 degree): 10 in (254mm)
- Weight: 29 lb (13.2 kg)
ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 810W Max Power Consumption
- Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
- BTU/hr (+/- 10%) 2762.1
