Product Description

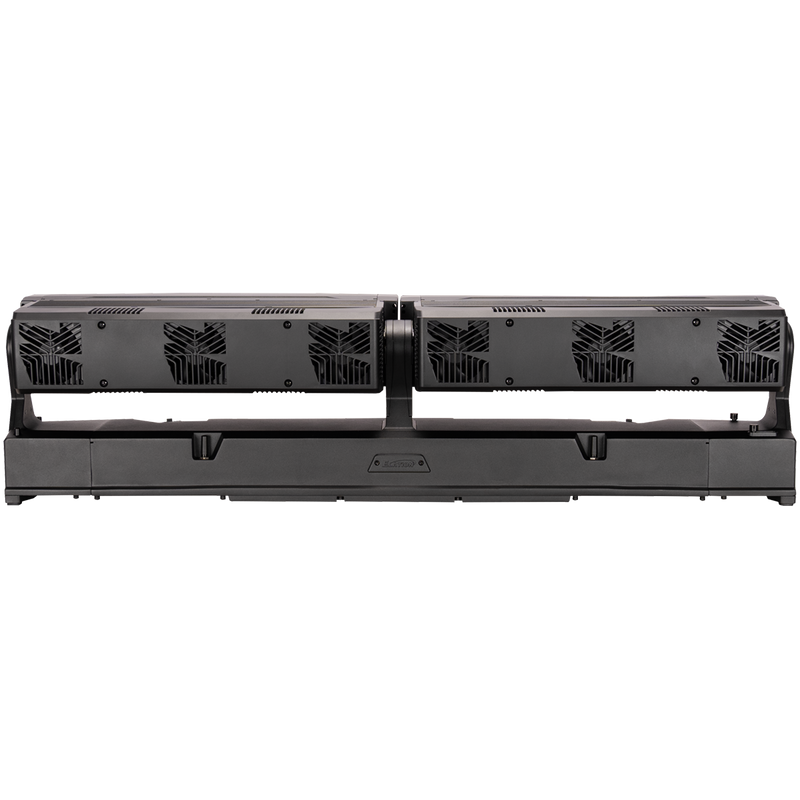

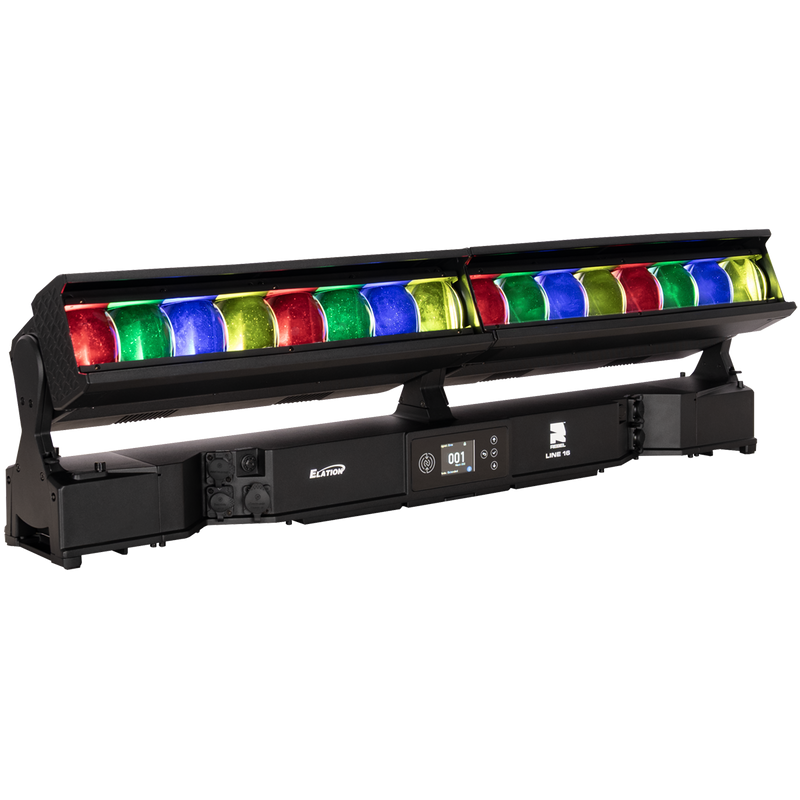

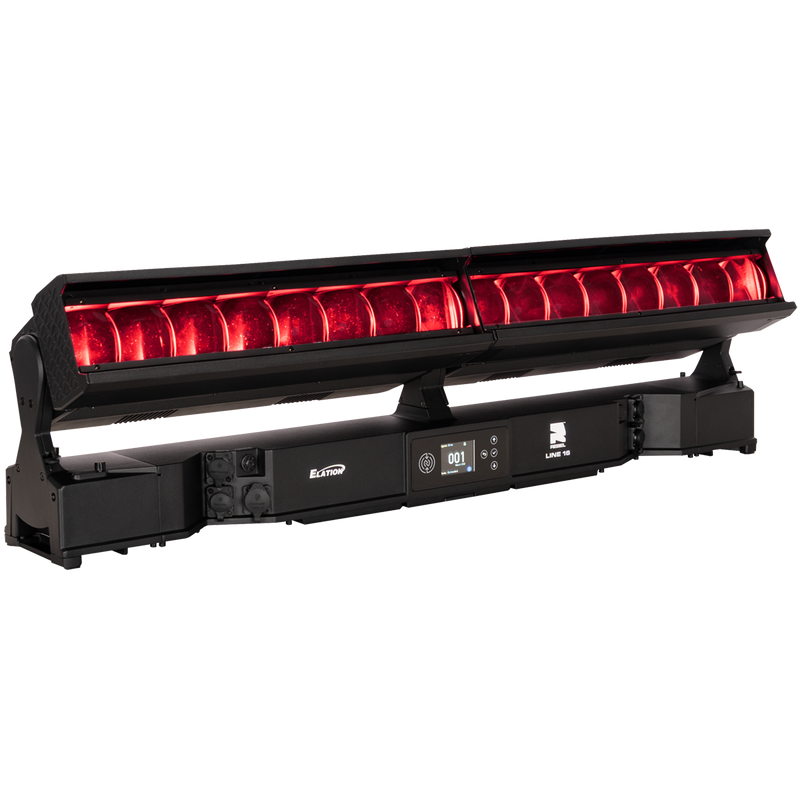

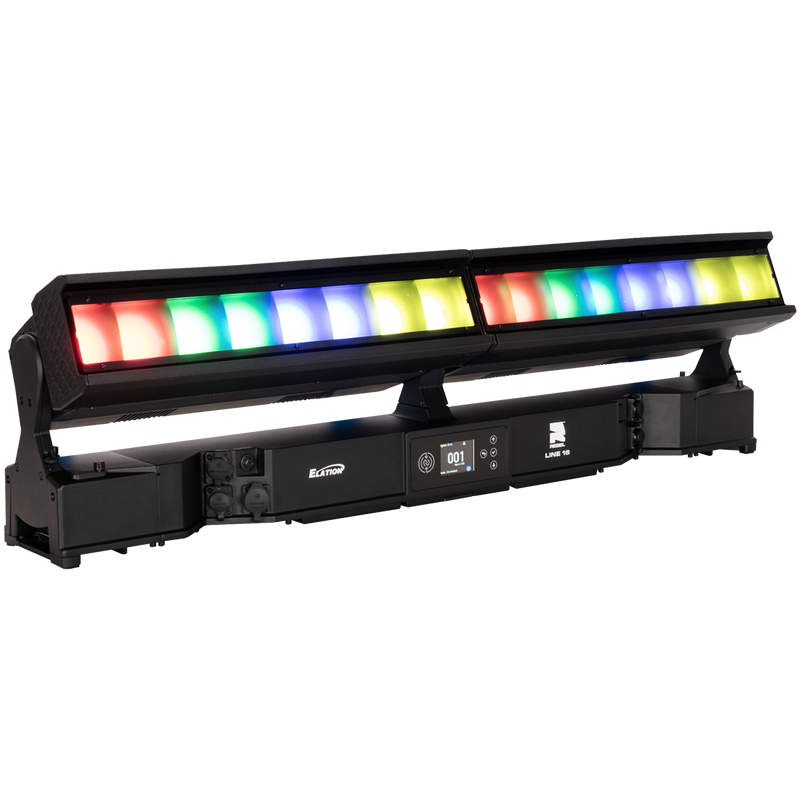

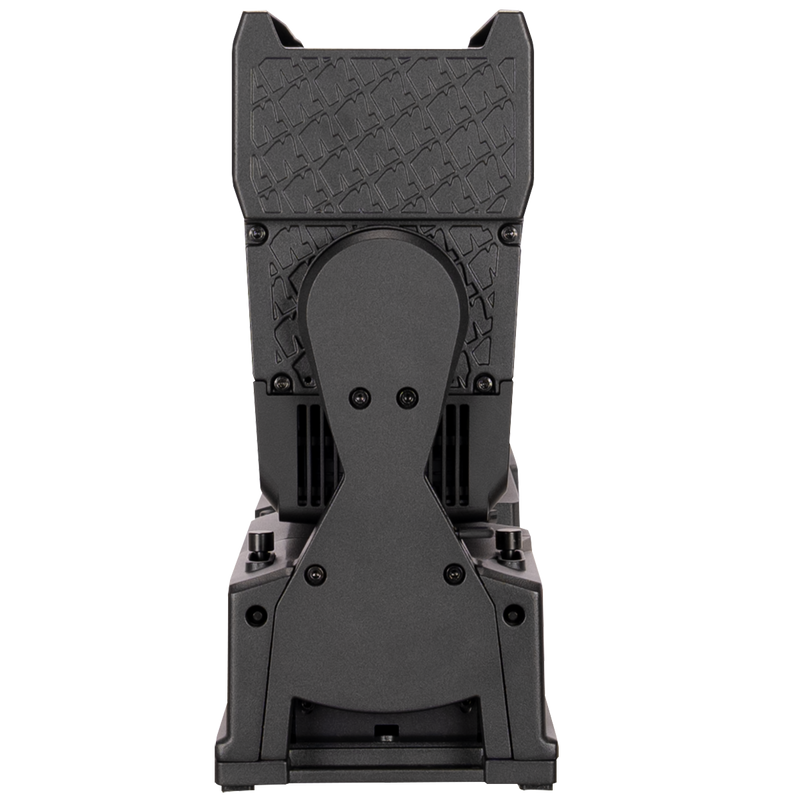

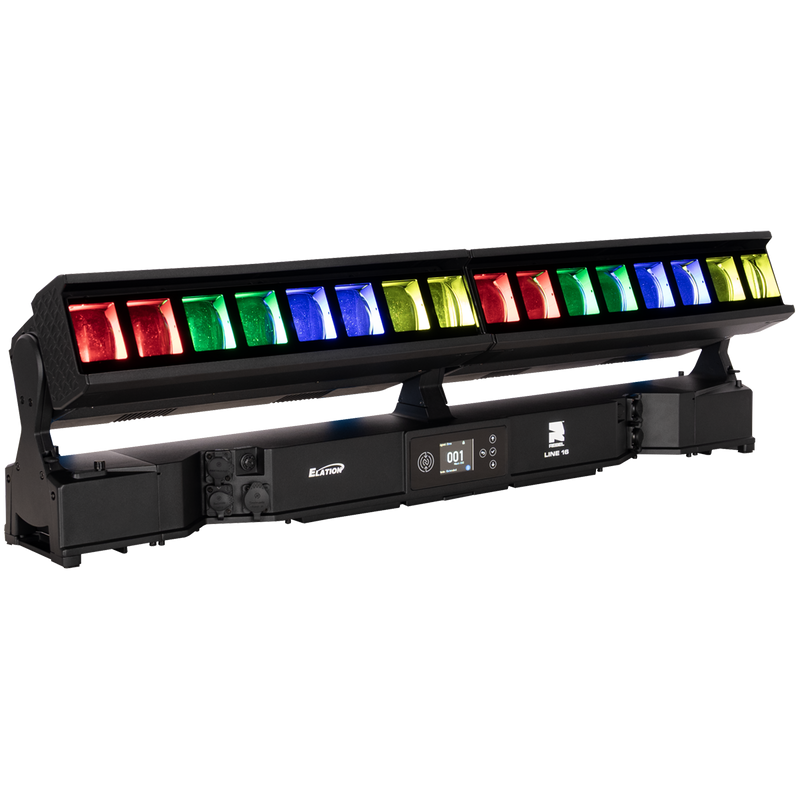

Elation REBEL LINE 16 16x RGBL IP65 Tilt FX Bar
Overview
The REBEL LINE 16 amplifies the force of the Rebel Series with a commanding 16-cell format—delivering massive output, precision optics, and a rich, full-spectrum palette inside a rugged IP55 chassis. Sixteen high-intensity 60W RGBL engines and thirty-two CW SparkX pixels surge together to unleash 25,355 lumens of relentless color and cool-white punch for designers who push their rigs harder.
A seamless linear lensing system and fast 210° tilt movement drive dynamic, fluid looks—ranging from razor-sharp sub-4° beams that cut through the air to immersive 35°+ washes that fill a stage with ease. With integrated SparkX, the REBEL LINE 16 adds dimensional texture and atmospheric detail, its cool-white crossing beams carving crisp, unmistakable lines through the haze.
A built-in mechanical alignment system allows the REBEL LINE 16 to lock effortlessly with other LINE fixtures—including the LINE 8—forming continuous beams and high-resolution pixel arrays at any scale. With its tour-ready build and expansive pixel density, the REBEL LINE 16 is engineered for productions that demand bold intensity, sweeping kinetic motion, and advanced pixel artistry built to command the biggest stages.
Features
- (16) 60W RGBL LEDs with Pixel Control
- (32) 5W CW SparkX LEDs with Pixel Control
- 25,355 Total Fixture Lumen Output (Sphere)
- 4° - 35° Beam Angle
- Fast and precise 210° Tilt Rotation
- IP55 Tilt FX Fixture
Includes
- Omega Brackets (x2)
- Blank Name Plate
- Front Louver/Grid (x2)
- Diffusion Filter (x2)
- Safety Cable IP65 Rated
- IP65 Locking Power Cable
Specifications
SOURCE
- (16) 60W RGBL LEDs
- (32) 5W CW SparkX LED Pixels
- 30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- Total Lumen Output:
- Integrating Sphere
- All LED: 25,355 Lumens
- RGBL LED: 13,865 Lumens
- CW LED: 11,546 Lumens
- CRI 82
- Zoom Range 4° - 35°
EFFECTS
- Motorized Zoom
- Full Pixel LED Control
- SparkX LED Beam Effect
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
- Tilt Angle: 210°
COLOR
- RGBL LED Array
- CW SparkX LED Array
- Variable CCT 2400K - 8500K
- Virtual Gel Swatch Book
CONTROL / CONNECTIONS
- 6 DMX Channel Modes (24, 31, 122, 2x 22, 2x 30 2x 70 channels)
- DMX Adjustable Refresh Rate (900 -25000 Hz)
- 4 Button Control Panel, LED Display
- Aria x2 Wireless Device Management
- NFC Configuration
- DMX, RDM, Art-NET, sACN Protocol Support
- IP65 Locking 5pin XLR Connector In/Out
- IP65 Locking RJ45 Ethernet Connector In/Out
- IP65 Locking Power Cable In/Out
SIZE / WEIGHT
- Length: 39.4 in (1000mm)
- Width: 6.1 in (168mm)
- Height (head up): 13.4 in (342mm)
- Height (head 90 degree): 10 in (254mm)
- Weight: 55 lb (24.9 kg)
ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 1690W Max Power Consumption
- Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
- BTU/hr (+/- 10%) 5,762.9
