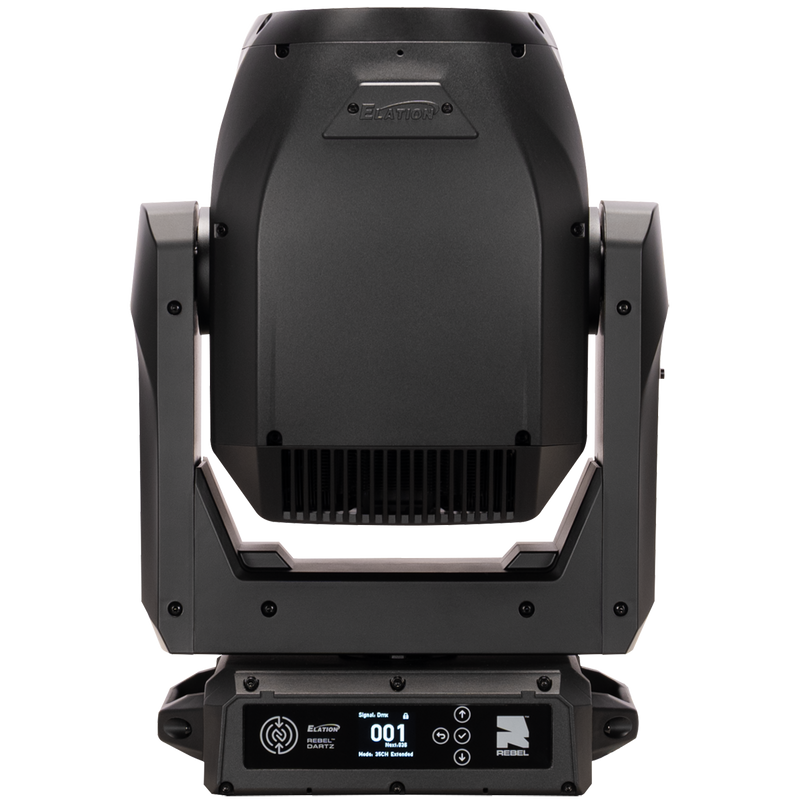

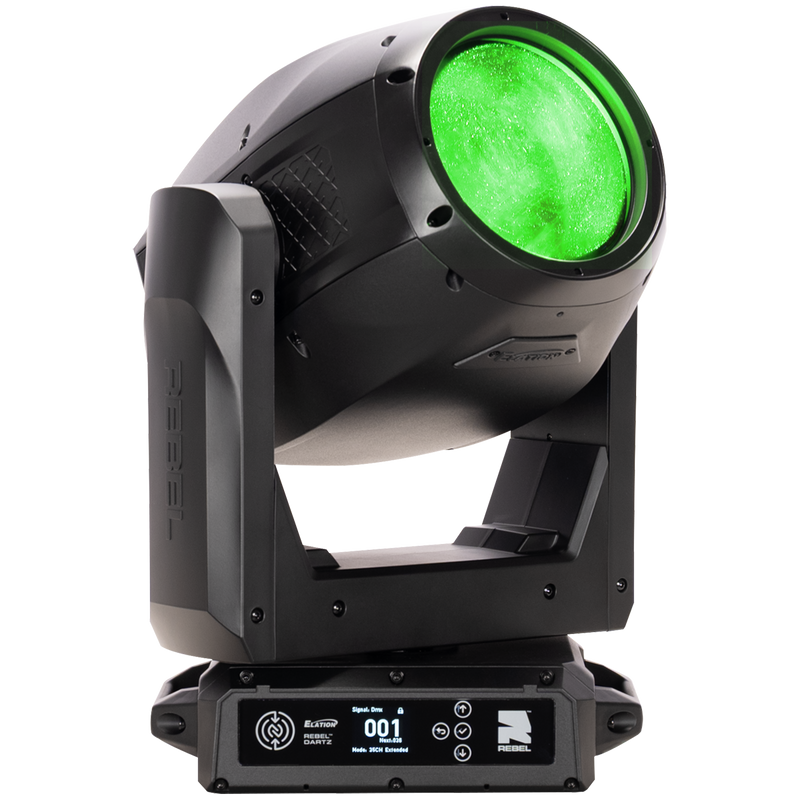

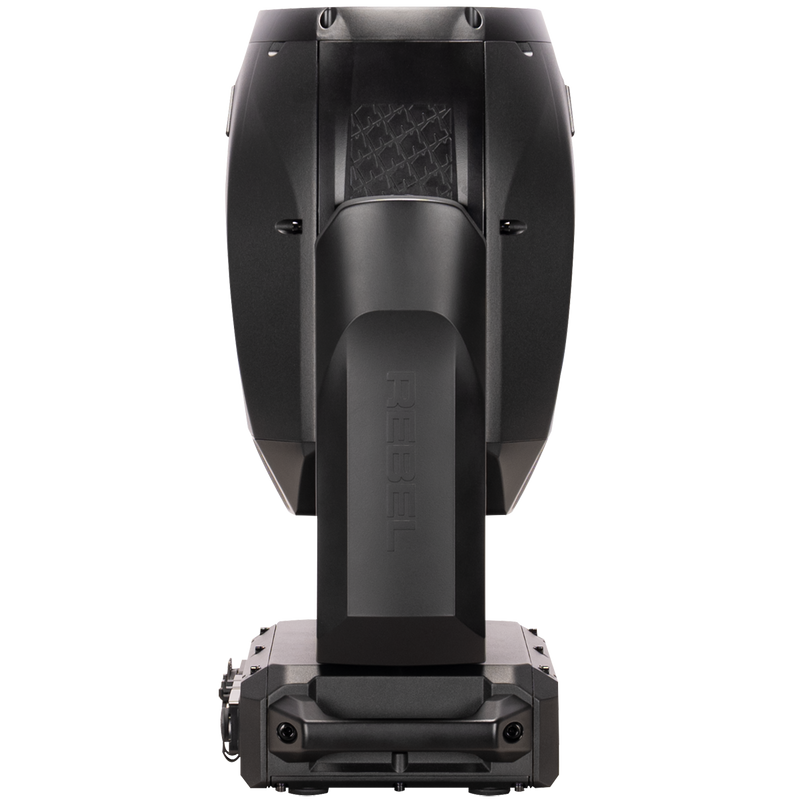

Elation REBEL DARTZ 150W RBL Beam FX Fixture
Overview
The REBEL DARTZ channels the unapologetic REBEL spirit into a compact, high-impact beam FX mover built for designers who demand speed, precision, and reliability in any environment.
Its fierce 150W RBL engine drives an ultra-narrow 1.5° beam—sharp enough to carve the air and powerful enough to cut through dense atmospherics with ease.
With 360° continuous pan and tilt, REBEL DARTZ unleashes unbound motion with kinetic energy. Its dual gobo wheels, layered prisms, and frost equip designers with a deep creative arsenal in a deceptively small footprint.
With an RBL LED engine, REBEL DARTZ produces a wide, punchy spectrum with smooth output and rich saturation, while a dedicated True Green filter adds even more versatility for building dynamic color-pairings.
As the long-awaited update to the community-favorite DARTZ 360, the REBEL DARTZ boasts four times the brightness and more gobos, all in a compact, weather-resistant, IP65-rated design. It rigs fast, travels light, and thrives anywhere the show demands—and with Aria X2 wireless DMX and RDM, NFC configuration, and five selectable fan modes, including a silent setting, it keeps setup, service, and noise control firmly dialed in.
Built to hit harder, shine sharper, and leave a mark that makes every design unmistakably REBEL, the REBEL DARTZ is a fixture that refuses to blend in.
Features
- 150W RBL LED Engine
- 1.5˚ Beam
- 125,475 lux @ 5M
- True Green Color Filter
- FX Package with Rotating & Fixed Gobos, Dual Stacking Prisms & Frost
- Variable CCT 3200K- 16000K
- Endless High-Speed 360˚ Pan and Tilt Movements
- NFC & Aria x2 Wireless Device Management
- IP65
Specifications
SOURCE
- 150W RBL LED Engine
- 20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- Total Lumen Output:
- 1,785 (Integrating Sphere)
- TBA (Goniometer)
- 125,475 lux @ 5M
- Beam Angle 1.5˚
EFFECTS
- Variable Strobe Rate: 1- 20Hz
- Remote Focus
- Heavy Frost Filter
- Dual Independent Stacking Prisms (6 Facet Linear & 8 Facet Circular)
- Variable 16-bit Dim Curve Modes
- DMX Controllable LED Refresh Rate
- Pan Angle: 360/540°
- Tilt Angle: 360/270°
- Continuous 360° Pan and Tilt Rotation
COLOR
- RBL Color Array
- True Green Color Filter
- Variable CCT 3200K- 16000K
- Virtual Gel Swatch Book
GOBOS
- 2 Gobo Wheels
- 10 Interchangeable-Rotating / Indexing Metal Gobos
- 16 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
- 2 DMX Channel Modes
- (4) Button Touch Panel
- 180° Reversible LCD Menu Display
- Hibernation Mode (Power Save)
- DMX, RDM, Art-Net and sACN Protocol Support
- Aria x2 Wireless Device Management
- NFC Configuration
- IP65 5pin DMX In/Out
- IP65 RJ45 Ethernet In/Out
- IP65 Locking Power In/Out
SIZE / WEIGHT
- Length: 13.3" (338mm)
- Width: 8.6” (219mm)
- Height: 18.8” (478mm)
- Weight: 35 lbs. (15.9kg)
ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 240W Max Power Consumption
- Power Thru Capacity: 10A (4 units @115V, 9 units @240V)
- -4°F to 113°F (-20°C to 45°C)
APPROVALS / RATINGS
- CE | cETLus | IP65 | FCC
