Product Description

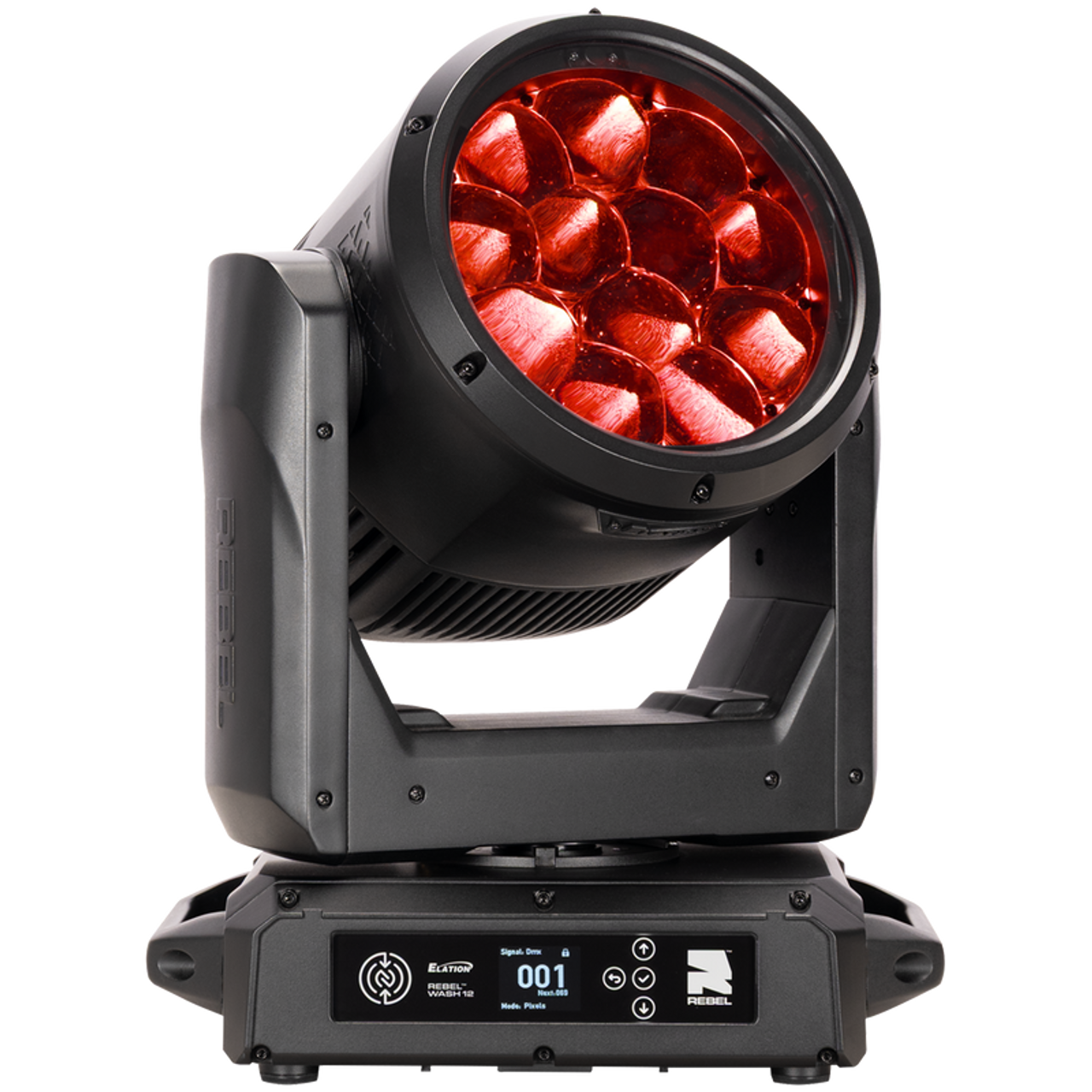

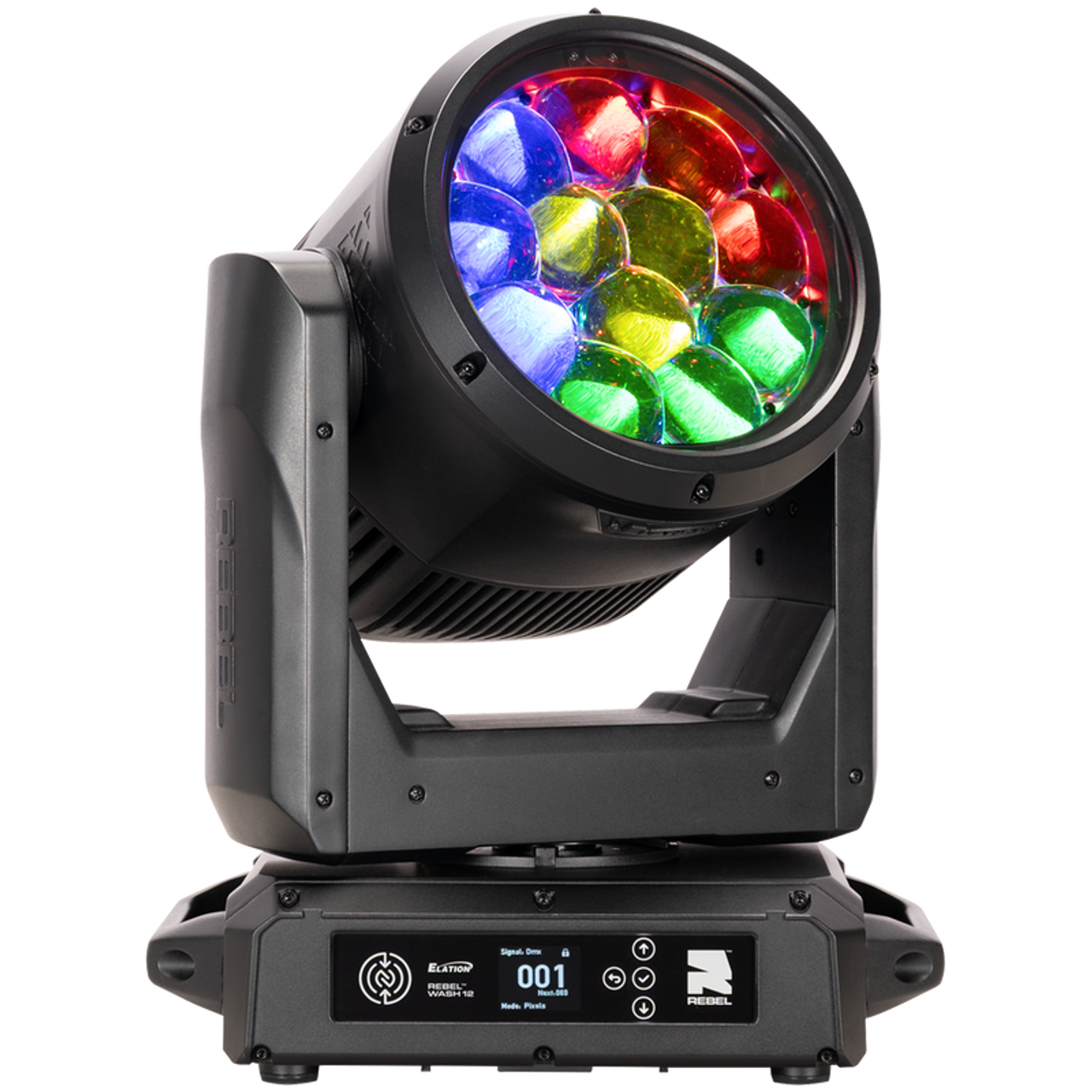

Elation REB112 Rebel Wash 12
Overview
12x60W IP65 RGBL Wash Fixture
The REBEL WASH 12™ is a powerful IP65-rated LED wash for many interior and exterior applications.
Projecting up to 14000 lumens output from 12 60W RGBL emitters, the REBEL WASH 12™ is the ideal work horse luminare providing high output with powerful beams or wide washes, with excellent color quality. From intense primary colors to excellent white color quality with high CRI and calibrated color temperatures, the fixture is the perfect choice for a wide variety of applications. Pixel control or simple uniform access provide additional levels of excitement and effects, and the 360 degree endless Pan and Tilt rotation allows the fixture add another layer of creativity.
With a fast zoom range from 5° to 40° out of a compact fixture design, the REBEL WASH 12™ has the complete feature set for a wide variety of shows and events. Fully sealed from dust and water, it is a flexible fixture ready to perform in short-term outdoor applications or any indoor environment.
Features
- IP65 for temporary outdoor applications
- (12) 60W RGBL LED Array
- Up to 14000 Total Lumens Fixture Output
- Pixel Control
- Calibrated Color Temperature Control
- Wide Zoom Range from 5° to 40°
- 360° continuous Pan and Tilt
Includes
- Omega Brackets (x2)
- Safety Cable
- IP65 Rated Locking Power Cable
Specifications
Source
- (12) 60W RGBL LED
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data
- 14000 Total Lumen Fixture Output
- CRI - 83.4
- TLCI - 67
- Zoom Range 5° - 40°
- Beam Angle: 5° - 40°
- Field Angle: 8.5° - 56.5°
Effects
- Motorized Zoom
- Pixel Control
- Variable 16-bit Dimming Curves
- High Speed Electronic Shutter and Strobe
- DMX Controllable LED Refresh Rate
- Pan Angle: 360/540°
- Tilt Angle: 360/270°
- Continuous 360° Pan and Tilt Rotation
Color
- RGBL Color Array
- CMY Emulation
- Variable CCT 2400K - 8500K
- Virtual Gel Swatch Book
Control / Connections
- 3 DMX Channel Modes (21/28/68)
- DMX, RDM, Art-NET, sACN Protocol Support
- (5) Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- Hibernation Mode (Power Save)
- IP65 Locking 5pin XLR Connector In/Out
- IP65 Locking RJ45 Ethernet Connector In/Out
- IP65 Locking Power Connector In
Size / Weight
- Length: 14.2 in (360 mm)
- Width: 10.2 in (259 mm)
- Height: 17.5 in (445 mm)
- Weight: 36.1 lbs. (16.35 kg)
Electrical
- AC 100-240V 50/60Hz
- Max Power Consumption 700W
- -4° to 113°F (-20°C to 45°C)
