Product Description

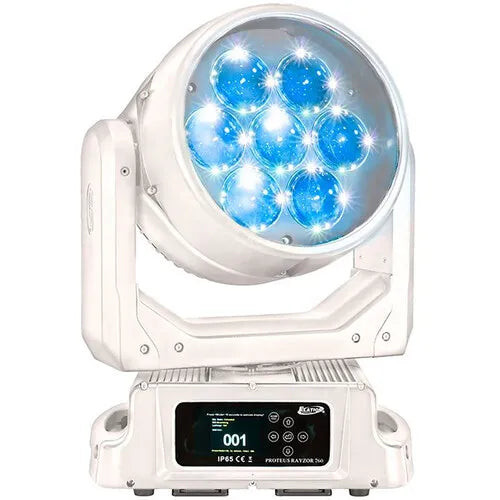

Elation PRR215 Proteus Rayzor 760 OPS
Overview
The Proteus Rayzor 760™ OPS is a compact yet extremely powerful IP65 rated Wash Effects fixture featuring Elation’s unique SparkLED™ system and fast continuous Pan and Tilt motion. With its wide zoom range from 5 to 77 degrees it provides intense and well-defined mid-air beams at over 7,200 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.
Driven by 7, independently controlled, 60W RGBW LEDs, delivering over 7,200 lumens of output with a total power of 420W, the Proteus Rayzor 760 OPS provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor 760 OPS offers this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.
In addition to its powerful wash and enhanced effects, the Proteus Rayzor 760 OPS offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the SparkLEDs while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.
ELATION OPS fixtures are optimized for permanent exterior installations. Utilizing CX Extreme Marine Grade Coatings, cabling and Stainless-Steel fasteners they are rugged, reliable and designed to withstand the elements.
Features
- IP65 Rated LED Wash Effects Fixture
- 7x 60W OSRAM RGBW LED with Pixel Control
- 28x 2W SparkLED™ Effect with Pixel Control (patent pending)
- Extreme Zoom – 5° for mid-air beam to 77° for even washes
- Fast and precise 360° continuous Pan and Tilt rotation
- Beam FX and Smooth Wash fixture in a compact IP65 certified housing
- ELATION OPS - Designed for permanent outdoor installations
- CX Extreme Marine Grade Coating
Specifications
SOURCE
- (7) 60W Osram RGBW LEDs
- (28) 2W White SparkLED™
- 50,000 Hour Average LED Life*
- *Test lab conditions. May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 7,200 Total Lumen Output
- CRI 80
- Zoom Range 5° - 77°
- Beam Angle 5.4° - 56.4°
- Field Angle 8.1° - 74°
EFFECTS
- Motorized Zoom
- Linear Color Temperature Presets (2700-8000K)
- RGBW Color Mixing and Pixel Control
- White SparkLED Lens Effect
- Color Presets and Macros
- Electronic Strobe and Variable Dimming Curves
- 16-bit Dimming
- Pan Angle: 540°/630°
- Tilt Angle: 270°/360°
CONTROL / CONNECTIONS
- 3 DMX Channel Modes (25 / 52 / 80 channels)
- 360° Continuous Pan and Tilt Movement
- DMX Adjustable Refresh Rate (900 -25000 Hz)
- DMX and RDM Protocol Support
- (6) Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- NFC Support
- 10' (3m) DMX In/Out combo cable
- 10' (3m) Power cable
SIZE / WEIGHT
- Length: 14.31 in (363.4mm)
- Width: 10.24 in (259.97mm)
- Height: 19.43 in (493.44mm)
- Center-to-Center: 16.6” (421.5mm)
- Weight: 41.0 lbs. (18.6kg)
Exterior Finish
- RAL9016 (custom colors available on request)
- CX Extreme Marine Grade Coating
- Stainless Steel 316 Fasteners
ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 700W Max Power Consumption
- BTU/hr (+/- 10%) 2387
- Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
APPROVALS / RATINGS
- CE | cETLus | FCC | IP65
