Product Description

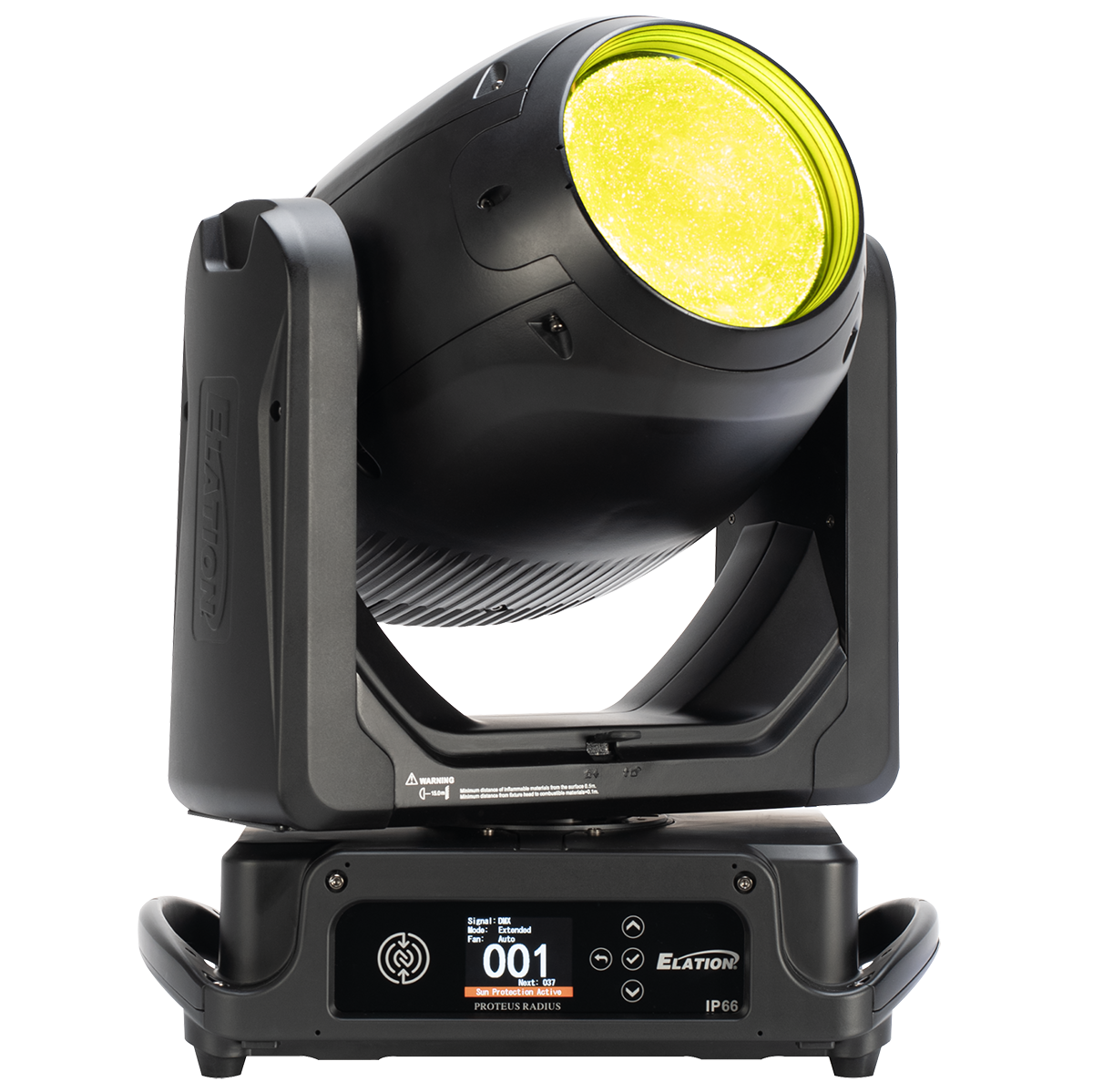

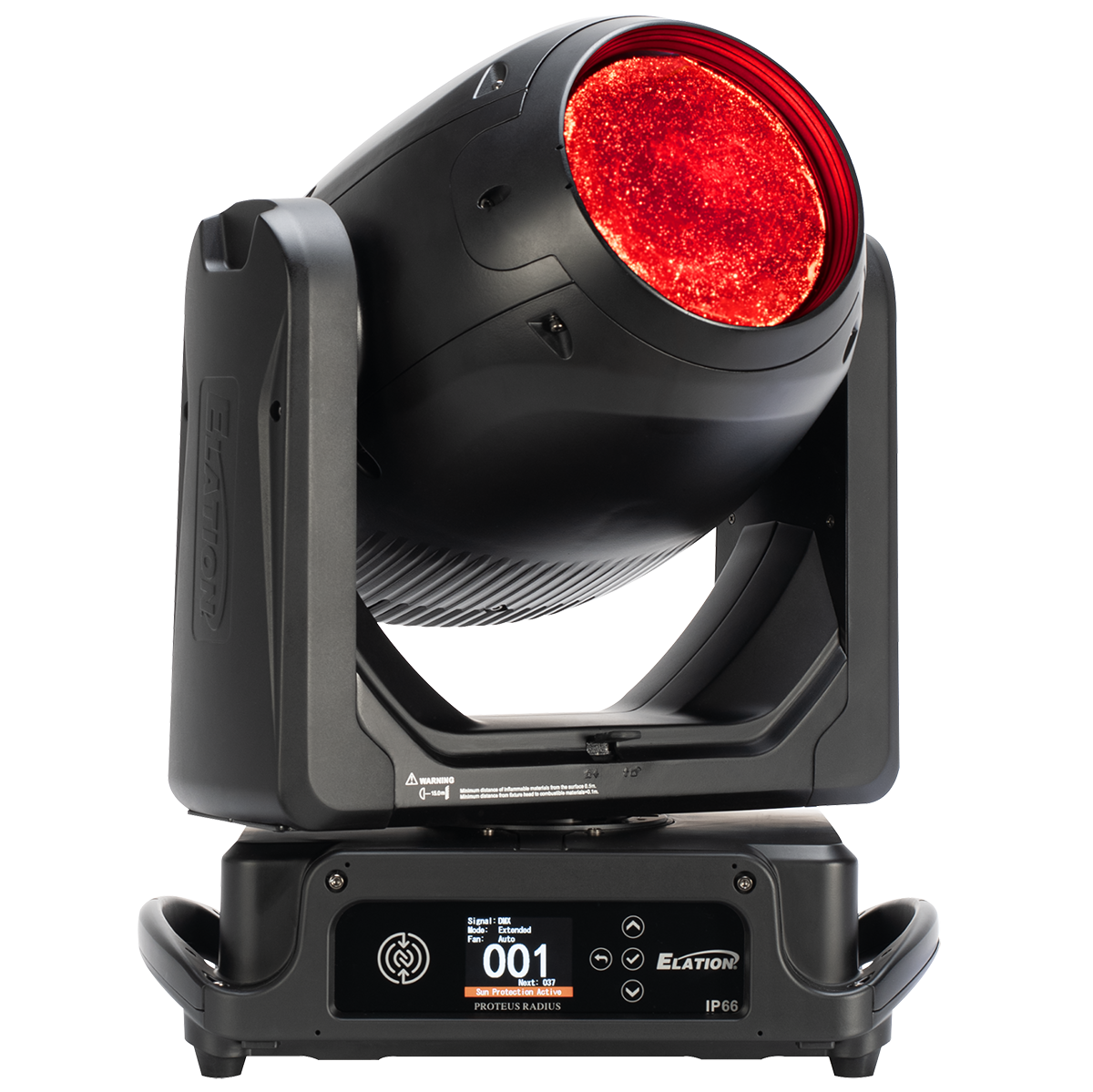

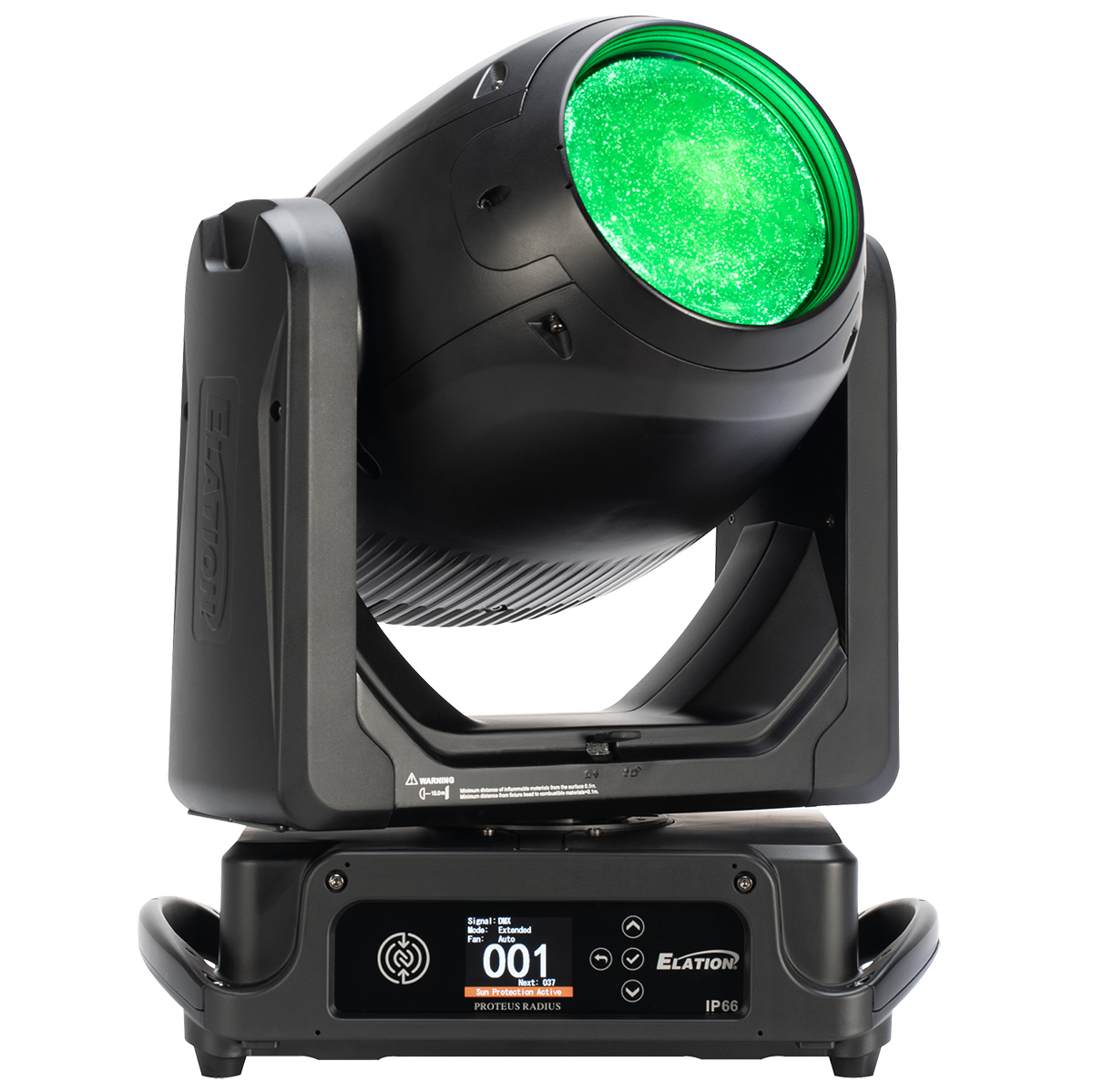

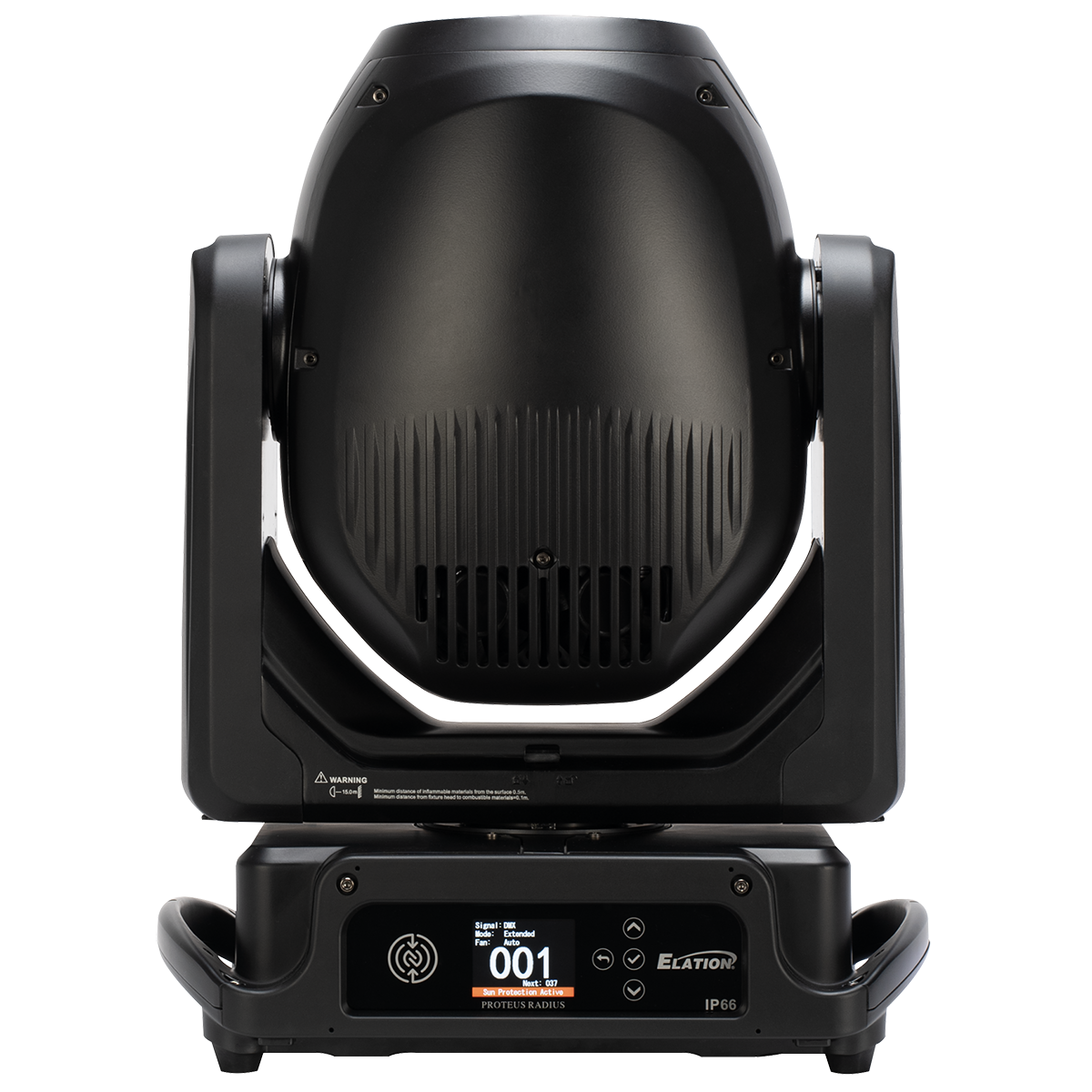

Elation PRD013 Proteus Radius 100W Solid State Phosphor Converted Beam FX Fixture
Overview
The PROTEUS RADIUS is a compact IP66 High Intensity Beam FX fixture.
Utilizing an efficient 100W Solid State Phosphor-Converted (SSPC) light engine the fixture projects narrow intense beams with incredible power at long distances.
Incredibly fast 360 Degree of Movement on both axis allow impactful beam animations, while the CMY color mix, gobos, prisms and frost options allow the designer to compose an endless array of stunning aerial effects.
Features
- 100W Solid State Phosphor-Converted (SSPC) Light Engine
- Compact and lightweight IP66 housing
- Ultra Intense 0.9˚ Beam
- Endless High-Speed 360 Pan and Tilt Movements
- CMY Color Mixing CMY
- FX Package with rotating, fixed gobo, 4 prisms and dual frost
- NFC Support
- FIL (Foam In Lay) Polyurethane Foam Packaging Included
Specifications
Source
- 100W Solid State Phosphor-Converted (SSPC) Light Engine
- 6000K, CRI 70
- 10,000 Hour Lamp Life
Photometric Data
- 2700 Lumen Total Fixture Output
- Beam Angle 0.9˚
Effects
- Dual Frost
- 4 Prisms on Dual Planes
- CMY Color, Gobo, Prism Macros
- Motorized Focus
- Digital Shutter and Strobe
Color
- Full CMY Color Mixing System
- 25 Position Color Wheel
Gobos
- 2 Gobo Wheels
- 13 Interchangeable-Rotating / Indexing Metal Gobos
- 24 Static-Stamped Metal Gobos
Control / Connection
- 2 DMX Channel Modes
- (6) Button Touch Panel
- Full Color 180° Reversible LCD Menu Display
- DMX, RDM, Art-Net and sACN Protocol Support
- 5pin DMX In/Out
- RJ45 Ethernet In/Out
- IP65 Locking Power In
Size / Weight
- Length: 15.6” (395mm)
- Width: 13.5” (343mm)
- Height: 20” (509mm)
- Weight: 41.9 lbs. (19kg)
Electrical / Thermal
- AC 100-240V 50/60Hz
- 300W Max Power Consumption
- -4°F to 113°F (-20°C to 45°C)
Approvals / Ratings
- CE | cETLus | IP66
