Product Description

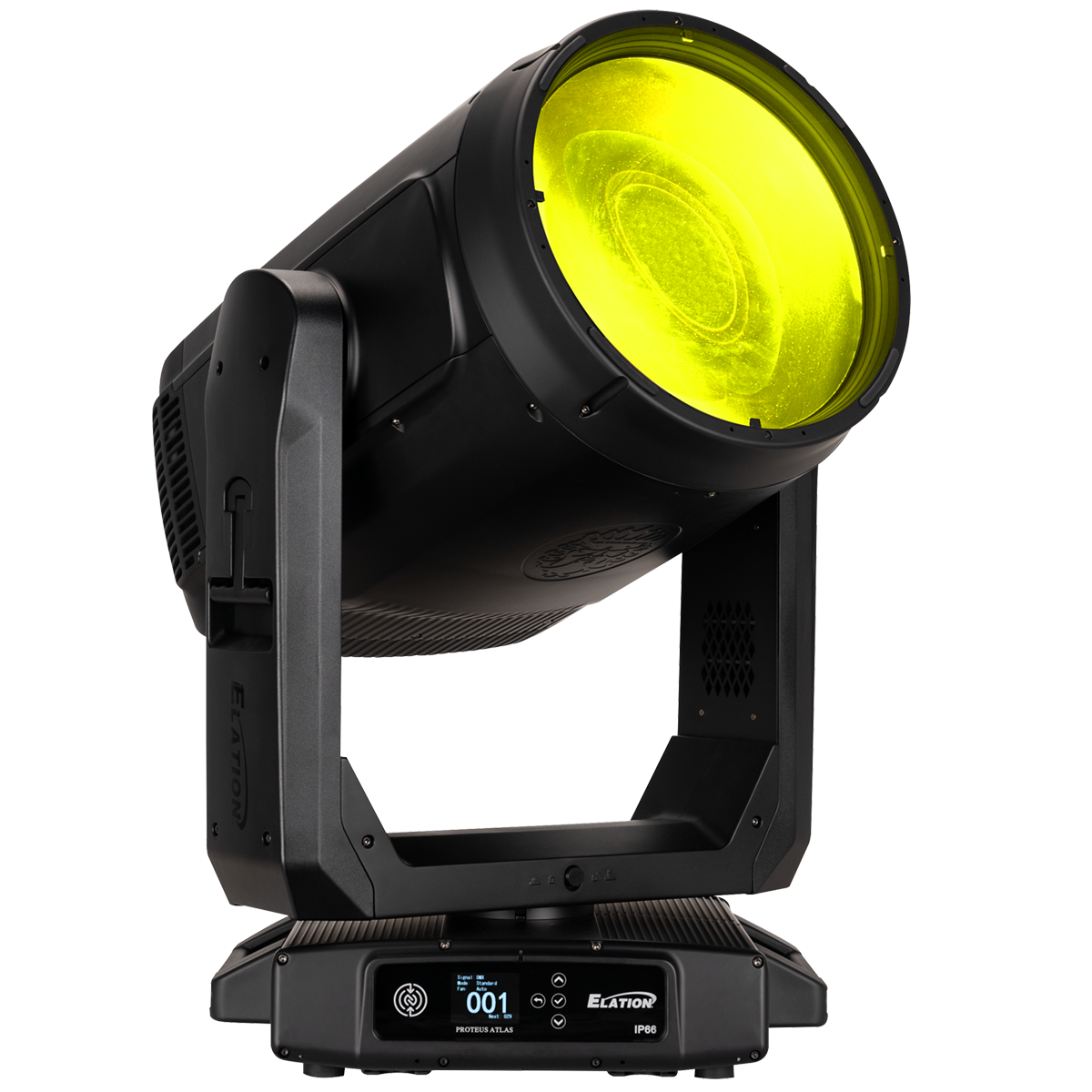

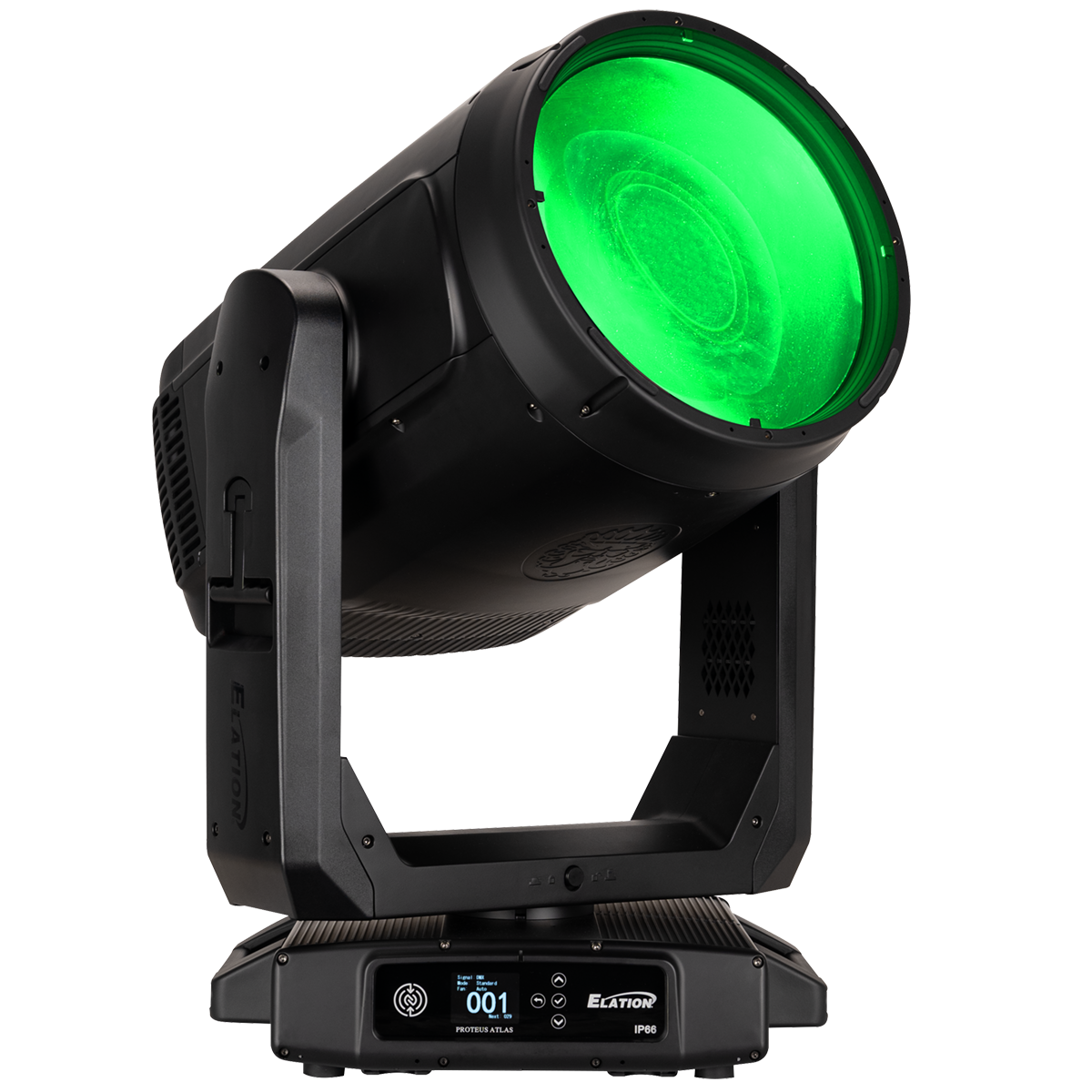

Elation PRA501 Proteus Atlas 500W Solid State Phosphor-Converted Beam FX Fixture
Overview
The remarkable PROTEUS ATLAS is an extremely powerful and feature-packed IP66 Beam FX fixture with razor-thin 0.6° beam (zoomable to 8.5°) that slices through the night sky in a mesmerizing display visible from vast distances.
Ideally suited for theme parks, cruise ships, outdoor events and spectaculars, and the perfect jaw-dropping effect for large scale shows and concerts, the sky becomes a visual canvas for its intense beam and powerful prism and flower effects.
Utilizing an ultra-efficient 500W Solid State Phosphor-Converted (SSPC) light engine, the PROTEUS ATLAS projects captivating beams with high energy that span very long distances. Comparable to existing 7K Xenon searchlights or sky trackers, the ultra-narrow beam projects from the mammoth 320mm (12.5") front lens as a massive column of light, adding attention-grabbing impact to any event or environment.
An artistic selection of gobos and prism overlays allow for captivating mid-air visual effects, and with its incredible light intensity all CMY colors remain strong and vibrant even when fully saturated. Beam control is provided through an ultra-fast zoom and focus lens array while dual variable frosts allow softening of the beam edges for breathtaking wash effects that paint surfaces with vibrant hues or bathe the sky in a kaleidoscope of colors.
Despite its colossal capabilities, the PROTEUS ATLAS maintains a compact size and consumes minimal power, meaning it can be incorporated into virtually any lighting setup.
The PROTEUS ATLAS includes Elation’s innovative Sky Motion system, allowing it to operate as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be seamlessly interconnected, and with the simple assignment of IDs, the fixture provides immediate access to a variety of dazzling movement patterns that are easily adjustable in size, speed, and color directly from the display. The Sky Motion system allows for standalone operation and is easy to set up and adjust directly from the fixture display, even for "non-lighting" users, expanding the usability of the fixture beyond traditional show lighting applications.
Fully IP66 rated, the PROTEUS ATLAS stands as a testament to innovation and power, delivering extreme output comparable to large 7000W Xenon fixtures while operating at a fraction of the power for a much smaller footprint and at a weight that defies its capabilities.
Features
- 500W Solid State Phosphor-Converted (SSPC) Light Engine
- IP66 housing
- Ultra Long Throw Beam FX
- Continuous 360 Pan Movement
- CMY Color Mixing
- FX Package with rotating, fixed gobos, prisms and dual frost
- Sky Motion Standalone System
- Protective Foam In Lay for transport
Specifications
Source
- 500W Solid State Phosphor-Converted (SSPC) Light Engine
- 9000K, CRI 70
- 12,000 Hour Lamp Life
Photometric Data
- 1.000.000 Lux @ 20m
- 100.000 Lux @ 100m
- Beam Angle 0.6° - 8.5°
Effects
- Dual Frost (Hot- Spot Beam, Wash FX)
- Ultra- Fast Zoom
- Focus
- 2x3 Prisms on Dual Planes
- Digital Shutter and Strobe
- Pan Angle 360° / 540°
- Tilt Angle 250°
Color
- Full CMY Color Mixing System
- 25 Position Color Wheel
Gobos
- 2 Gobo Wheels
- 13 Interchangeable-Rotating / Indexing Metal Gobos
- 26 Static-Stamped Metal Gobos
Control / Connections
- 2 DMX Channel Modes (26/36 Ch)
- (6) Button Touch Panel
- Full Color 180° Reversible LCD Menu Display
- DMX, RDM, Art-Net and sACN Protocol Support
- NFC Support
- Ip65 5pin DMX In/Out
- IP65 RJ45 Ethernet In/Out
- IP65 Locking Power In
Size / Weight (approx.)
- Length: 14.5” (370mm)
- Width: 20” (508mm)
- Height: 31.5” (800mm)
- Weight: 117 lbs. (53kg)
Electrical / Thermal
- AC 100-240V 50/60Hz
- 670W Max Power Consumption
- -4°F to 113°F (-20°C to 45°C)
Approvals / Ratings
- CE | cETLus | UKCA | FCC | IP66
