Product Description

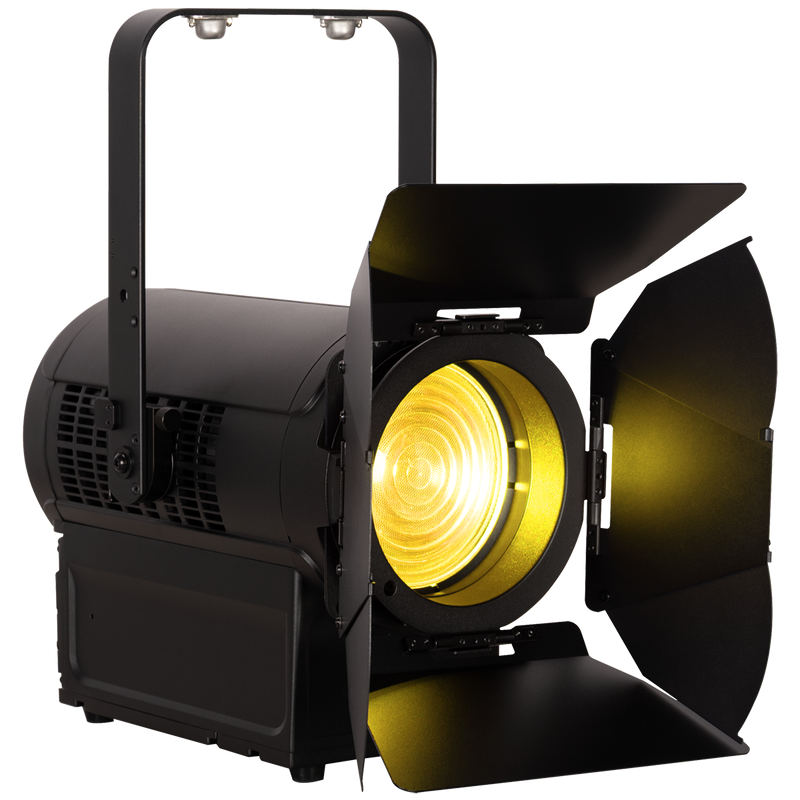

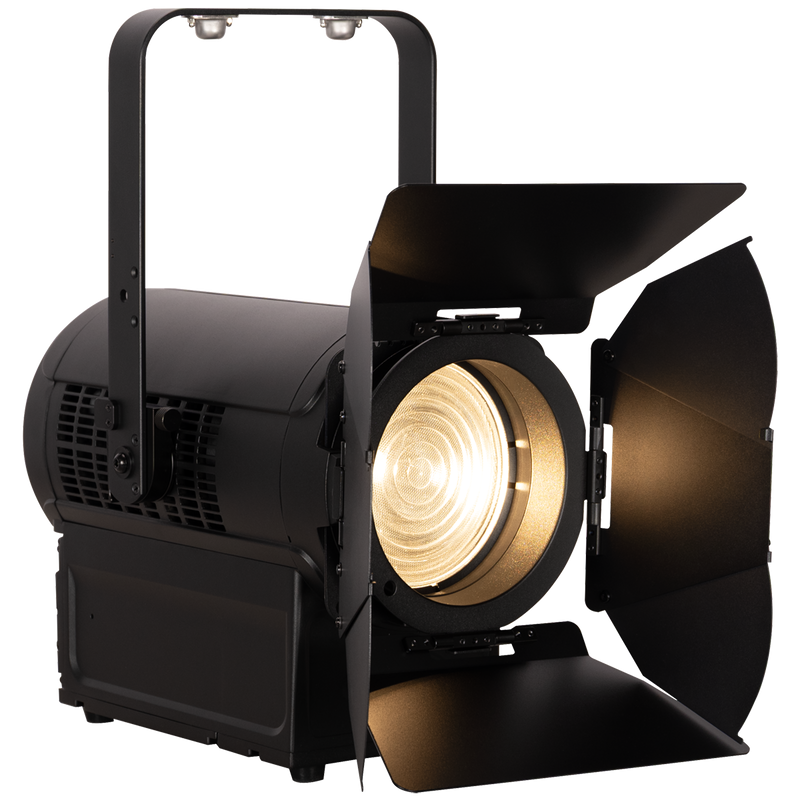

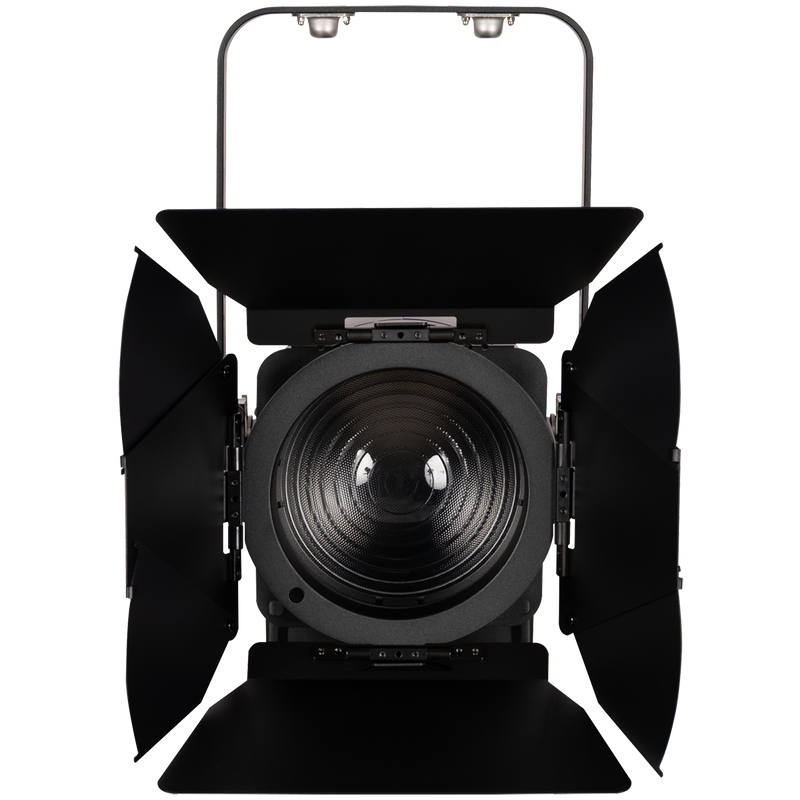

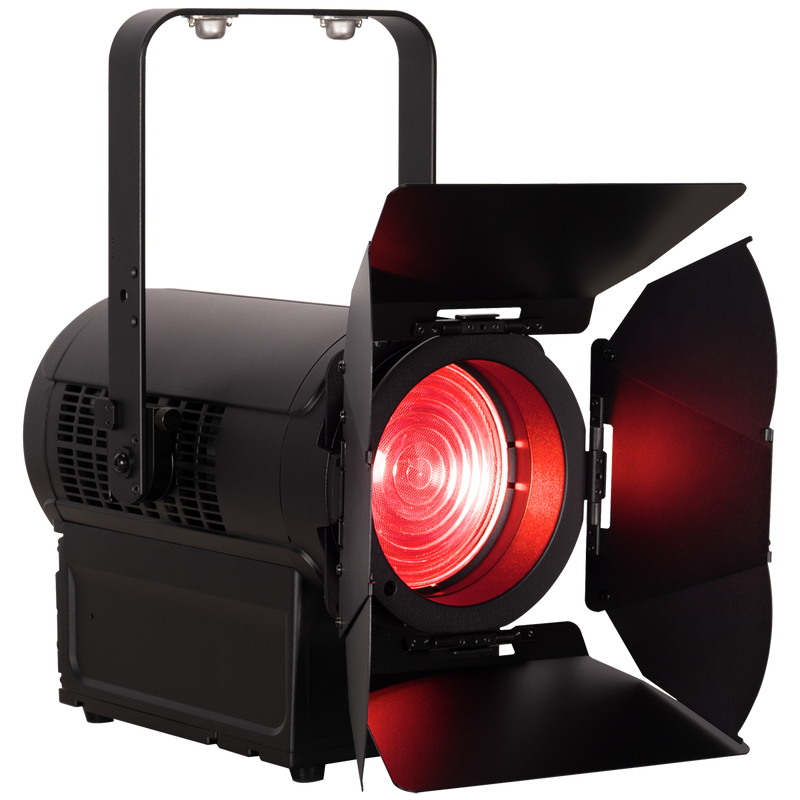

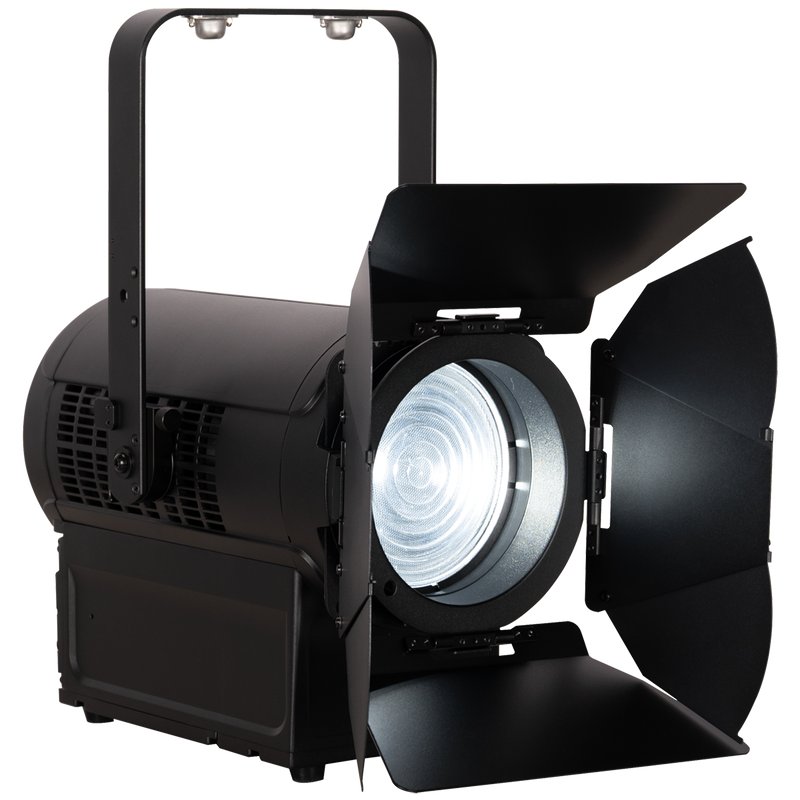

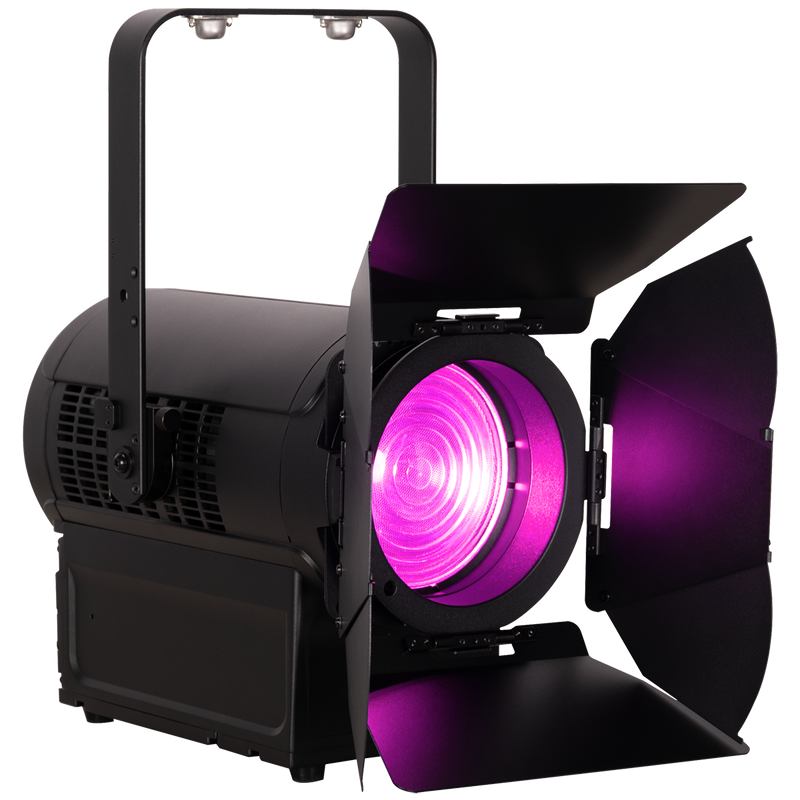

Elation KL FRESNEL 6 IP 250W RGBMA LED Fresnel
Overview
The KL Fresnel 6 IP delivers superior light quality in a compact, weather-ready 6-inch design—bringing natural Fresnel character, full-spectrum color, and modern workflow efficiency to any environment.
Its 250W RGBMA engine produces over 7,400 lumens of balanced, full-spectrum output to ensure natural skin tones and accurate color. Variable CCT and magenta/green shift control make it ideal for film and television.
An internal motorized 8°–60° zoom uses a source-moving mechanism to preserve classic Fresnel behavior with a smooth falloff that designers expect in a compact, easy-to-rig form.

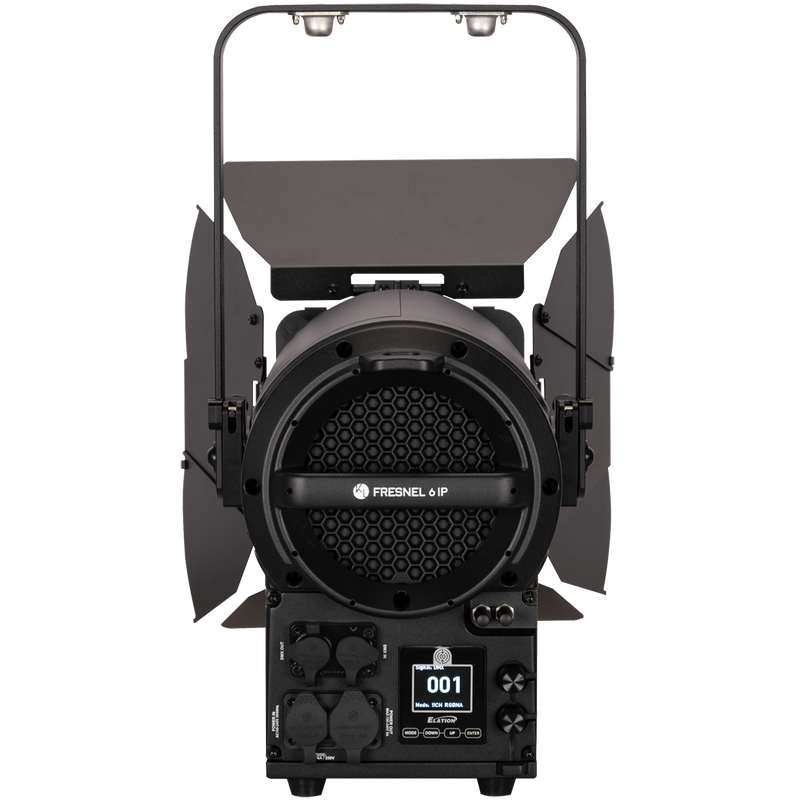

Smart setup tools, including NFC configuration, a rear-facing LCD interface with dual encoders, and Aria X2 wireless DMX, streamline operation from prep to programming.
With its lightweight IP65 housing and five selectable fan modes, the KL Fresnel 6 IP supports everything from outdoor stages to camera-critical studio work while reducing maintenance and downtime—all while maintaining the timeless look and feel of a true Fresnel.
Features
- 250W RGBMA LED Engine
- 7,400 Total Fixture Lumen Output (Sphere)
- Wide 8° to 60° Motorized Zoom Range
- Stand-Alone control with 2 Encoders and LED Display
- NFC & Aria x2 Wireless Device Management
- IP65 Rated
Includes
- Gel Frame
- Safety Cable
- Barndoor
- IP65 Locking Power Cable
Specifications
SOURCE
- 250W 6000K RGBMA LED Engine
- 50,000 Hour Average LED Life*
- *May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
- PHOTOMETRIC DATA
- Total Lumen Output:
- 7,400 (Integrating Sphere)
- TBA (Goniometer)
- CRI 94
- TLCI 95
- Zoom Range 8° - 60°
- Beam Angle 7.5° - 42°
- Field Angle 12° - 60°
EFFECTS
- Motorized Zoom
- Variable Strobe Rate: 1- 20Hz
- Dim-to-Warm/ Red Shift Emulation
- Variable 16-bit Dimming Modes and Curves
- DMX Controllable LED Refresh Rate (900Hz- 25kHz)
- COLOR
- RGBMA Color Array
- CMY Emulation
- x/y Control
- 16bit Fully Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book
CONTROL / CONNECTIONS
- 8 DMX Channel Modes (1 ,5, 7, 11, 12, 20, 10, 16, 14)
- Manual and DMX Controlled Dimmer. Color Zoom
- 4 DMX Controllable Fan Modes for Silent Operation
- Dual Rotary Encoders
- Full Color 180° Reversible LCD Menu Display
- RDM (Remote Device Management)
- Aria x2 Wireless Device Management
- NFC Configuration
- IP65 5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
- Length: 15.9” (404 mm)
- Length (Yoke 0°): 19.5” (495 mm)
- Width: 10.1” (256 mm)
- Height (Fixture Body): 11.9” (302 mm)
- Height (Yoke 90°): 19.6” (498 mm)
- Weight: 23.3 lbs (10.55 kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 268W Max Power Consumption
- Power Thru Capacity: 4A (1 unit @115V, 3 units @240V)
- 5°F to 113°F (-15°C to 45°C)
- BTU/hr (+/- 10%) 913.8
