Product Description

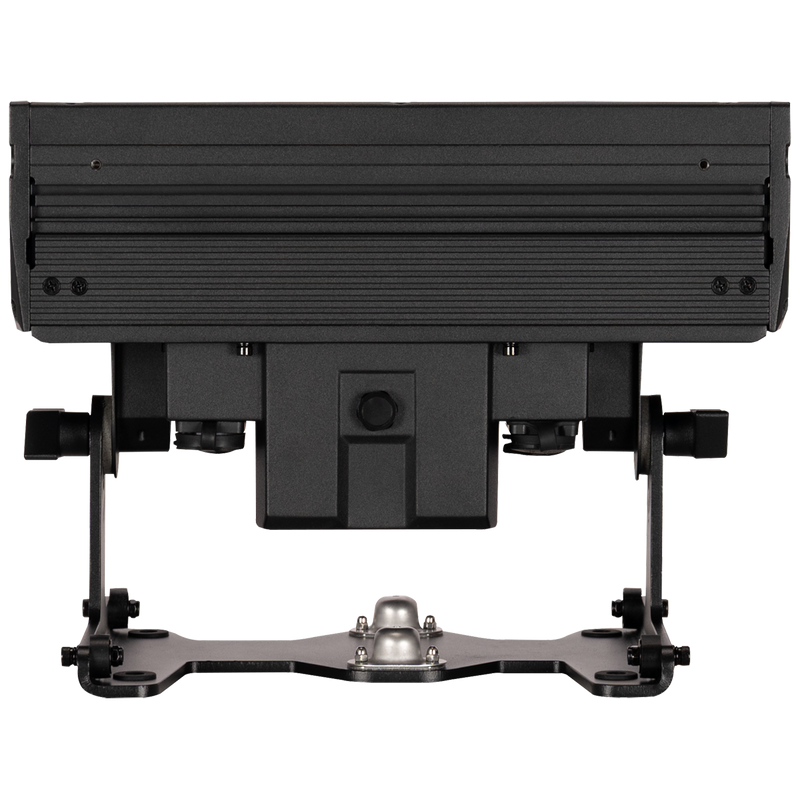

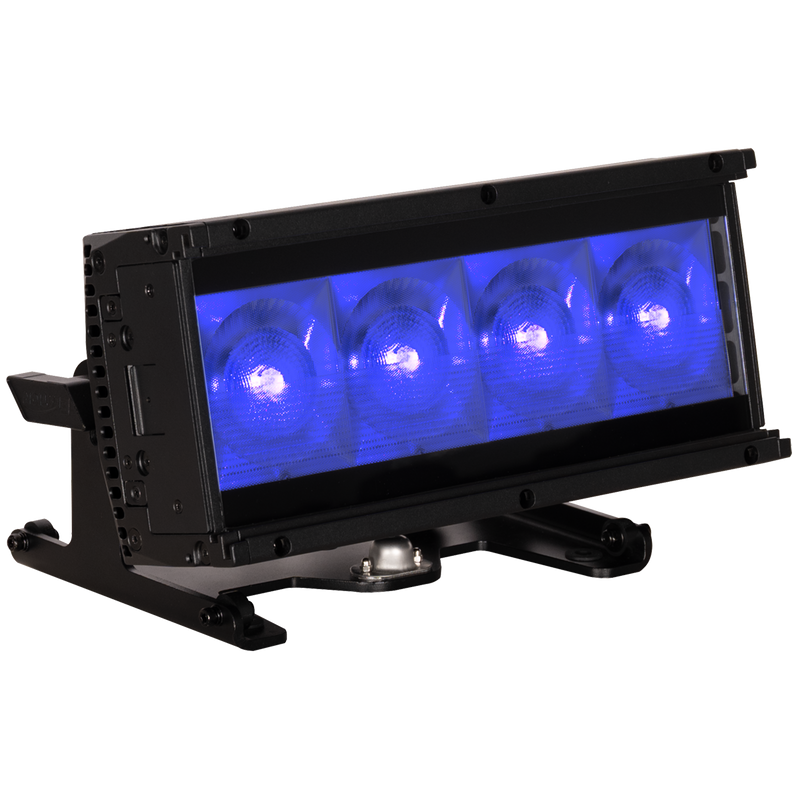

Elation KL BATTEN 12 4x100W RGBMA 12" IP65 Batten
Overview
Delivering rich, full-spectrum color and over 10,500 lumens of output, the KL BATTEN 12 brings natural, full-spectrum light to stages, studios, and the outdoors—all in a compact, durable design.
Built for designers who demand professional color and powerful output, the KL BATTEN 12 provides homogeneous, true-to-life color via RGBMA LED engine with high CRI that's natural on camera and on stage, producing a smooth, even field.
An IP-65 rating means it can be used nearly anywhere. Its quiet operation, intuitive control, and flexible mounting options make it a versatile, reliable, and colorful addition to any rig.
Features

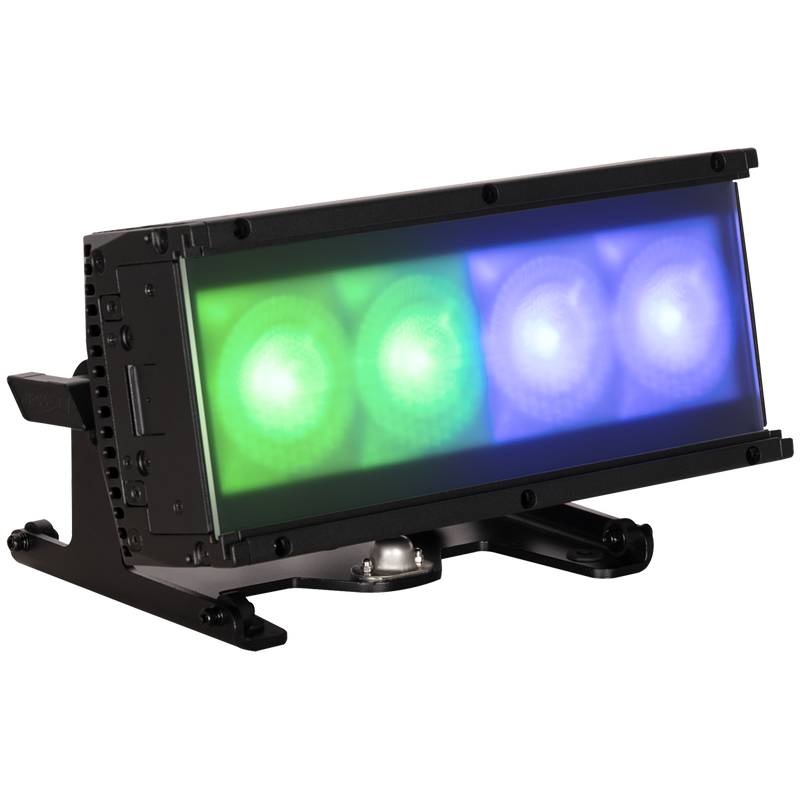

- Full Pixel Control
- Integrated Lens and Accessory Slots
- Art-Net & sACN Support
- Integrated L Track for Flexible Mounting
- End-to-End Magnetic Alignment System
- NFC & Aria x2 Wireless Device Management
- IP65 Rated
Includes
- Glare Shield
- Border Light Filter
- Safety Cable
- IP65 Locking Power Cable
Specifications
Source
- (4) x 100W RGBMA LEDs
- 30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data
- Total Lumen Output:
- 10,981 (Integrating Sphere)
- CRI- 94.9
- TLCI- 95
Beam Angle: 22° x 20°
Field Angle: 44° x 42°
Effects
- Full Pixel Control
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
Color
- RGBMA Color Array
- CMY Emulation
- 16bit Fully Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Dim-to-Warm Fade
- Virtual Gel Swatch Book
Control / Connections
- 22 DMX Channel Modes (1ch, 3ch, 4ch-A, 4ch-B, 4ch-C, 9ch, 10ch, 14ch, 22ch, 16ch, 6ch, 8ch-A, 8ch-B, 20ch-A, 20ch-B, 32ch, 12ch, 16ch-A, 16ch-B, 40ch, 32ch, 54ch)

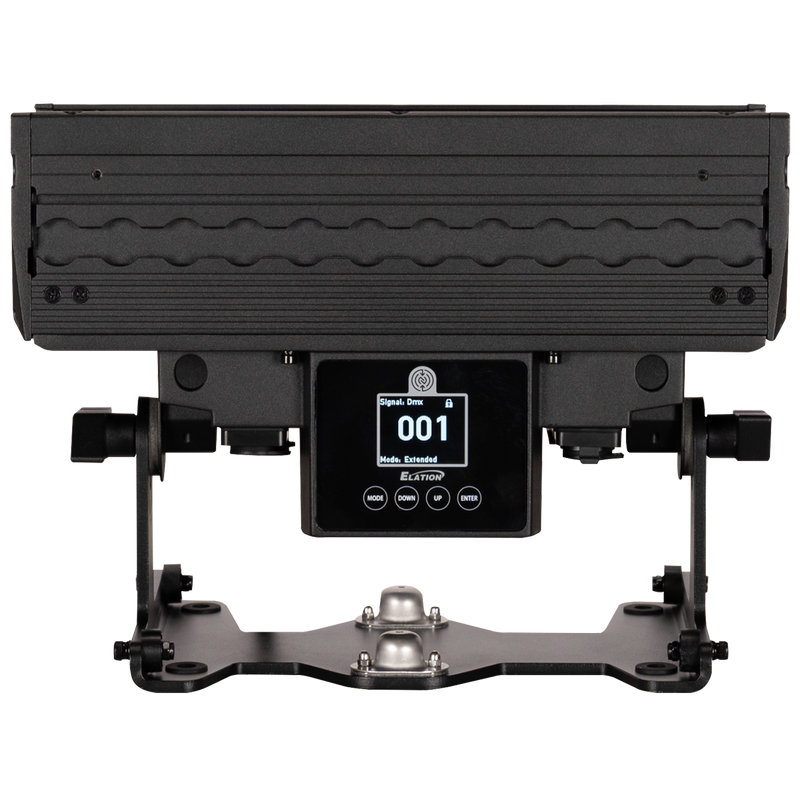

- 4 Button Control Panel, Color LED Display
- RDM (Remote Device Management)
- Aria x2 Wireless Device Management
- NFC Configuration
- IP65 5pin XLR DMX In/Out
- IP65 RJ45 Ethernet In/Out (Art-Net sACN)
- IP65 Locking Power Cable In/Out
Size / Weight
- Length: 12.6" (321mm)
- Width: 5.8" (148mm)
- Vertical Height: 8.5” (216mm)
- Weight: 14.7 lbs / 6.65kg
Electrical / Thermal
- AC 100-240V - 50/60Hz
- 200W Max Power Consumption
- Power Thru Capacity: 11A ( 6 units @110V; 13 units @240V)
- 5°F to 113°F (-15°C to 45°C)
- BTU/hr (+/- 10%) 682
