Product Description

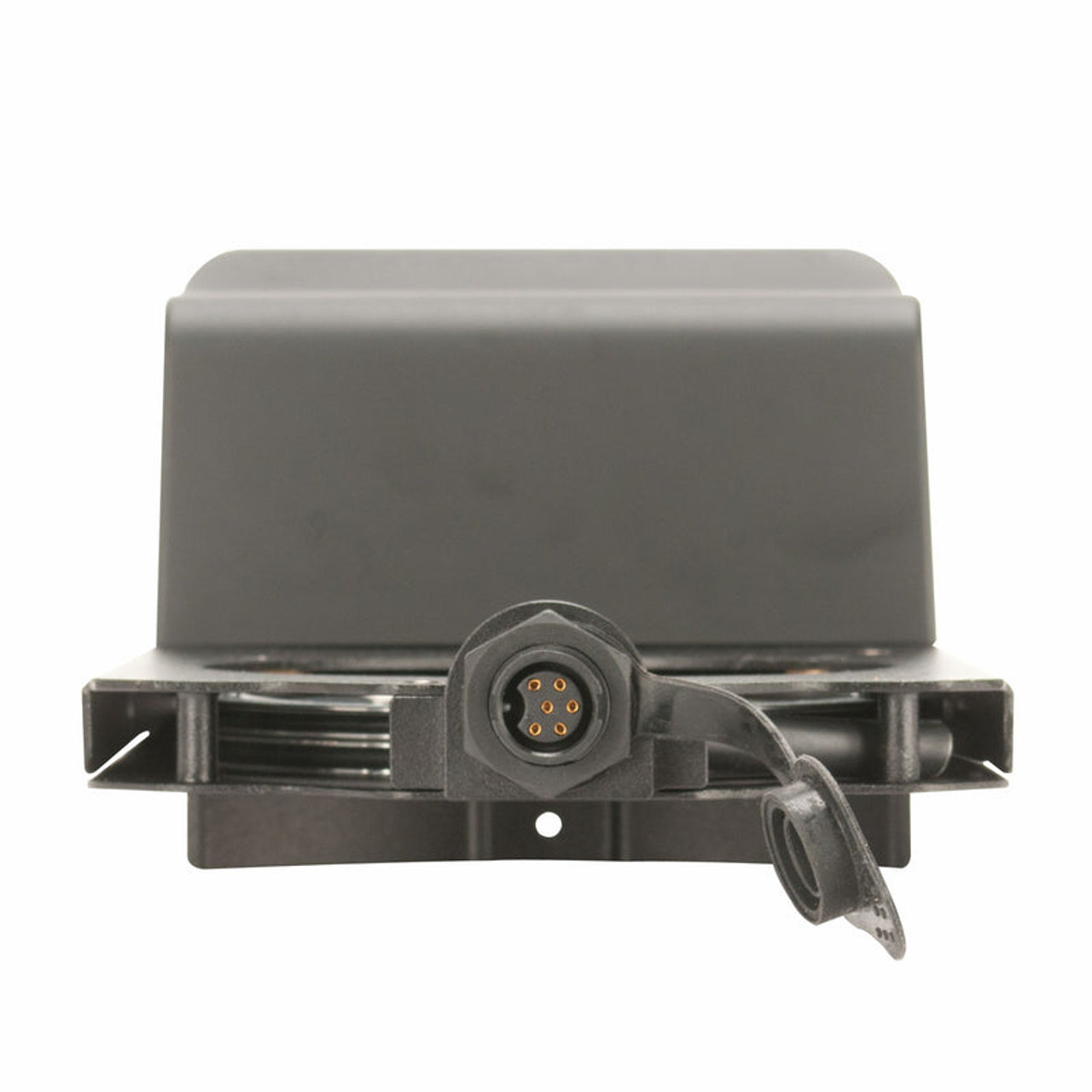

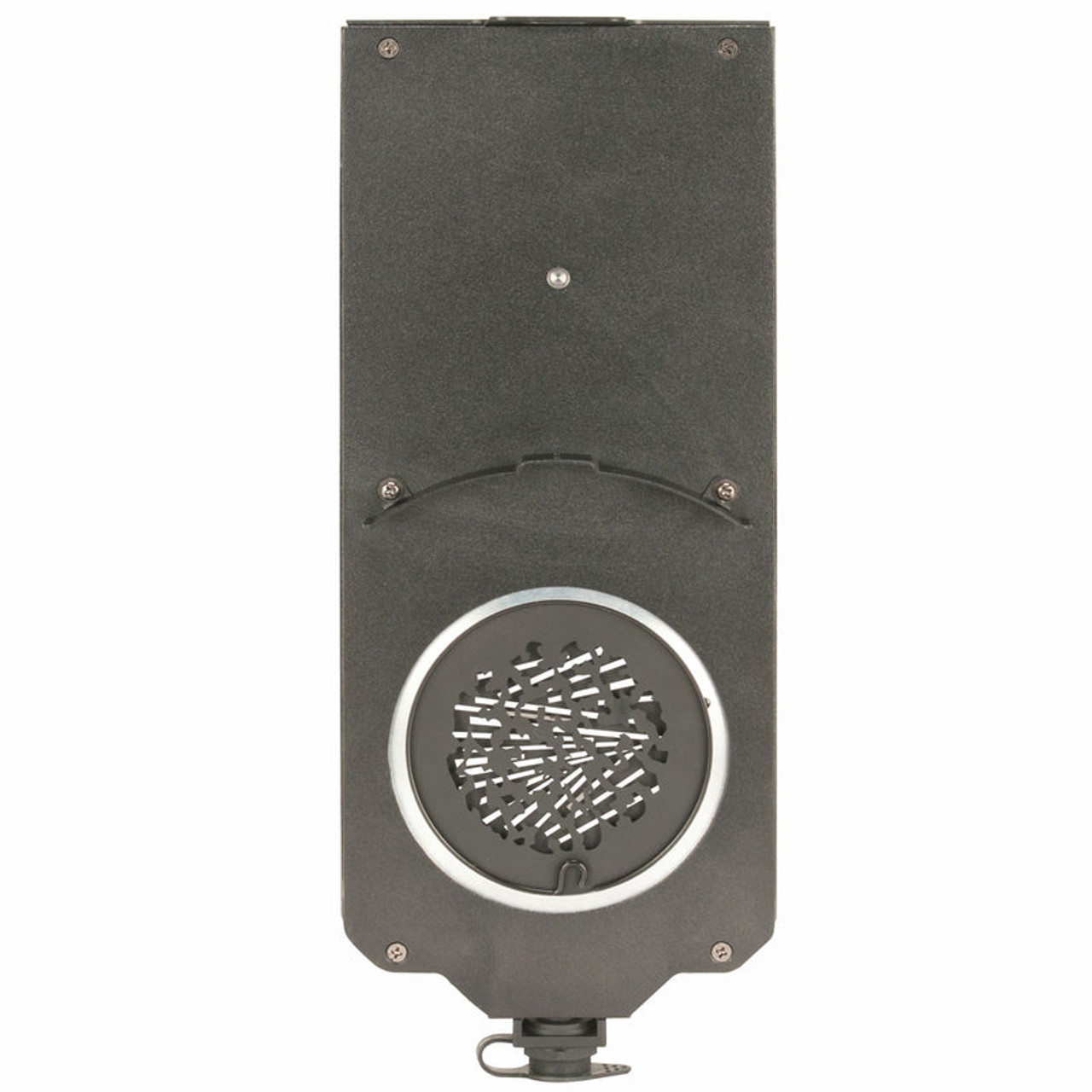

Elation IPR701 IP Gobo Rotator
Overview
The IP GOBO ROTATOR is an IP65 rated B-Size gobo rotator designed exclusively for the Elation WW /CW Profile HP IP ellipsoidal series. Easily installed into the profile fixture, the rotator features bi-directional variable speed counter-rotation, full indexable and slow to fast continuous gobo rotation control via DMX, holds 2 separate gobos for eye catching animation effects, and includes 2 sample gobos.
Features
- Designed for Elation WW / CW PROFILE HP IP Ellipsoidal Series
 - Bi-Directional Variable Speed Counter-Rotation
 - Full Indexable and Slow to Fast Continuous Rotation
 - DMX Controlled
 - Supports B-Size (86mm) Gobos
 - Holds (2) Gobos for Animation Effects

Specifications
Gobo Size
- B-Size OD 86mm | 64.5mm ID
 - Holds (2) Gobos for Animation Effects (2 sample metal gobos included)
 - CONTROL / CONNECTION
 - DMX Control (Indexing and Slow to Fast Gobo Rotation)
 - 5pin Power/Data (rotator to fixture linking cable included)

Size / Weight
- Length: 4.8” (121mm)
 - Width: 3.5” (89.7mm)
 - Vertical Height: 12.0” (306mm)
 - Weight: 2.0 lbs. (0.9 kg)
