Product Description

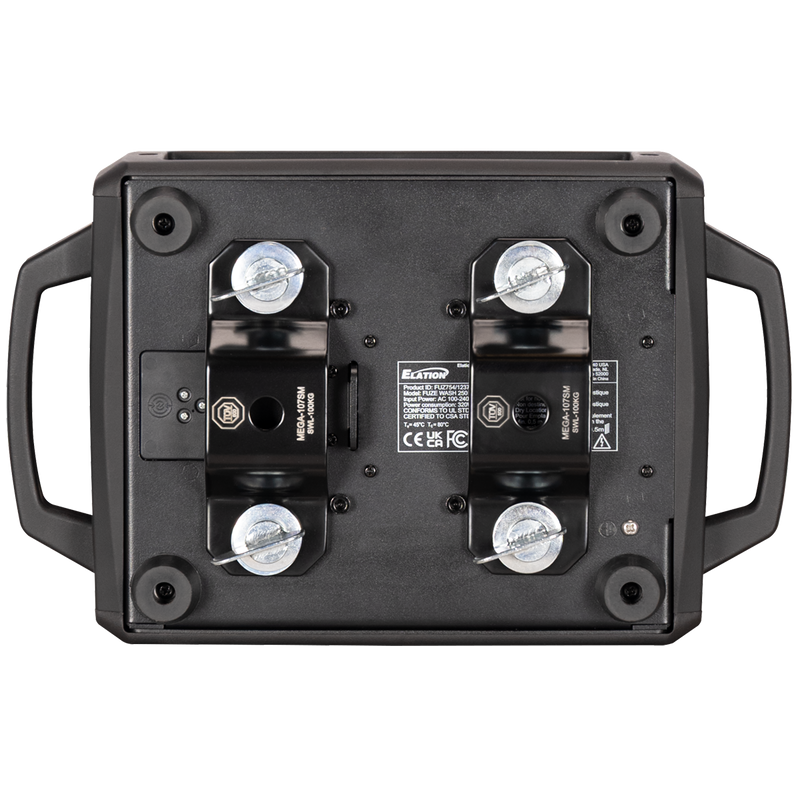

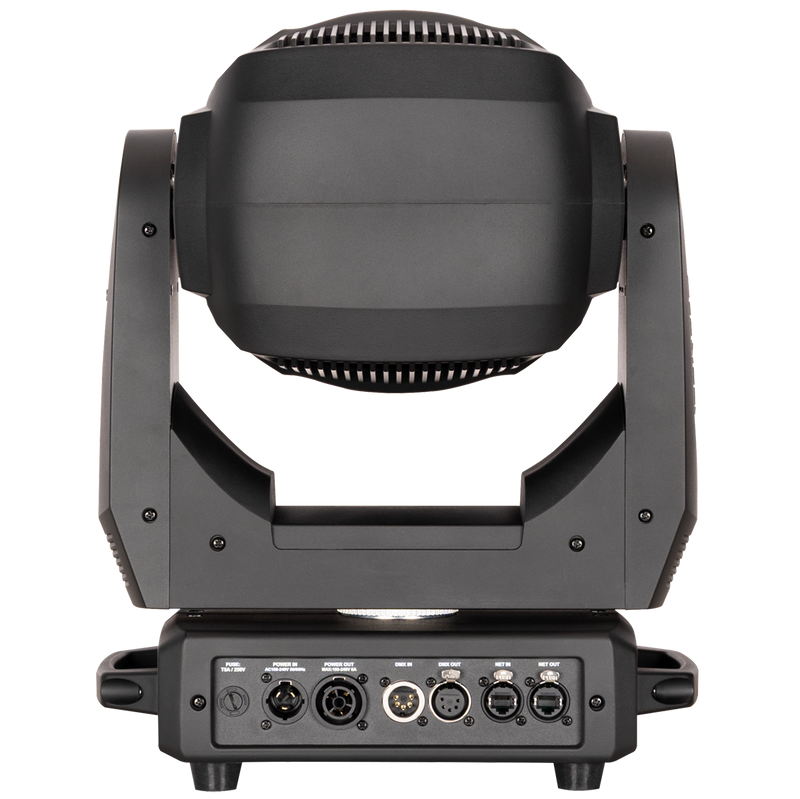

Elation Fuze Wash 250 LED Fresnel Wash Fixture
Overview
The FUZE WASH 250™ is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 8500 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.
Features
- 250W Full Spectrum RGBMA LED Engine
- Up to 8500 Total Lumen Fixture Output @ 6500K
- CRI up to 92
- Wide Zoom Range from 6° to 50°
- CMY Emulation
- Virtual Color Correction
- Green/Magenta Shift
- Virtual Gel Swatch Book
- NFC & Aria x2 Wireless Device Management
Includes
- Snoot
- Omega Brackets (x2)
- IP65 Rated Locking Power Cable
- Safety Cable
Specifications
SOURCE
- 250W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
- 30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 8500 Total Lumen Fixture Output
- CRI 92
- Zoom Range 6° - 50°
- Field Angle 13.9° - 55.8°
- Beam Angle 8.4° - 43.6°
EFFECTS
- Motorized Zoom
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
COLOR
- RGBMA Color Array
- CMY and RGB Emulation
- Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book
CONTROL / CONNECTIONS
- RGBMA, RGB, CMY, DMX Channel Modes
- 16-bit Pan, Tilt, and Dimming Control
- DMX Adjustable LED Frequency
- 4 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- DMX, RDM, Art-Net and sACN Protocol Support
- Aria x2 Wireless Device Management
- NFC Configuration
- Locking 5pin XLR Connector In/Out
- Locking IP65 Power Connector In/Out
- RJ45 Ethernet In/Out (Art-Net sACN)
SIZE / WEIGHT
- Length: 8.2” (208mm)
- Width: 12.9” (327mm)
- Vertical Height: 18.1” (459mm)
- Vertical Height w/Snoot: 19.4" (493mm)
- Weight: 24.8lbs. (11.3kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- Max Power Consumption 350 W
- 14°F to 113°F (-10°C to 45°C)
