Product Description

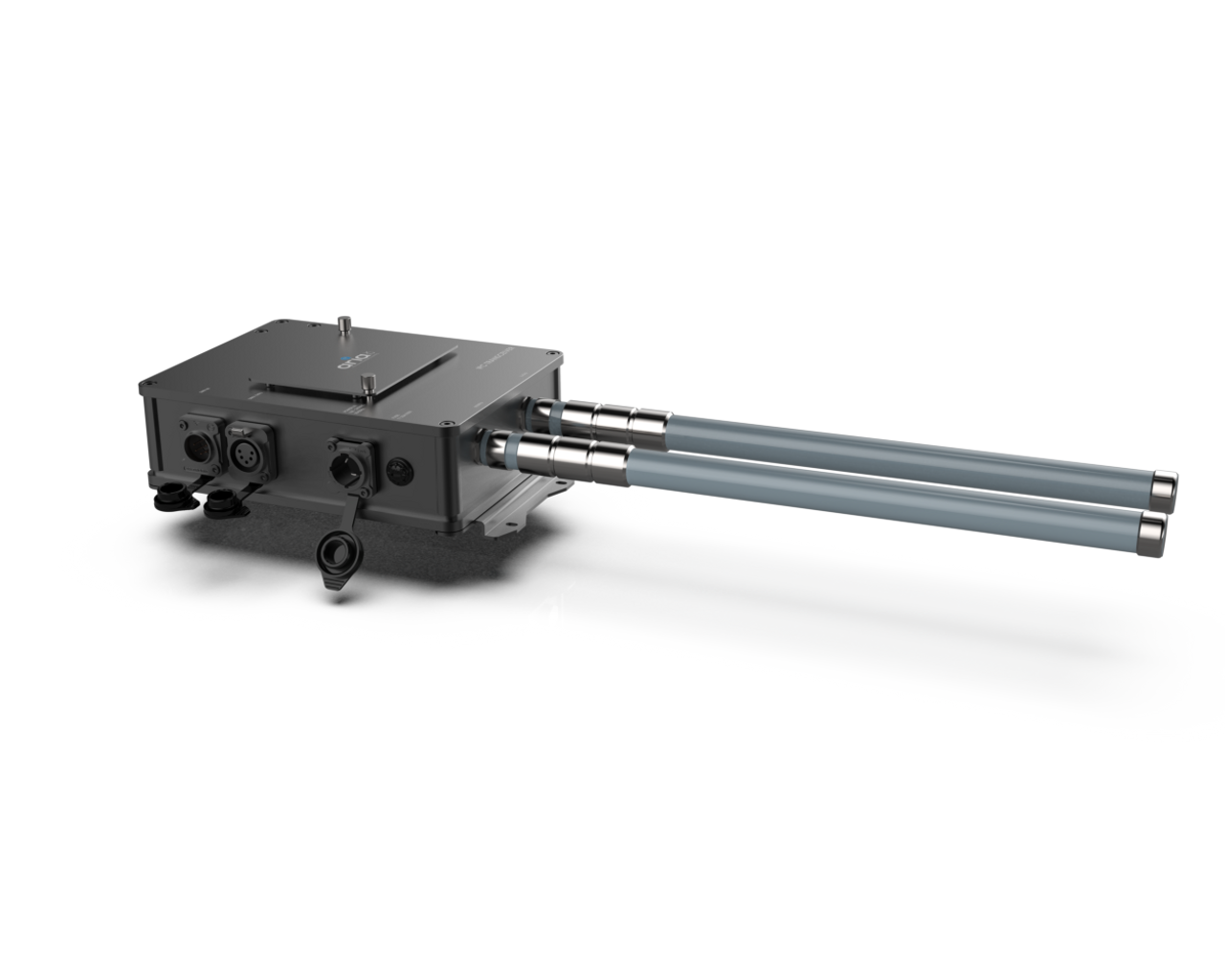

Elation AX2139 Outdoor Wireless DMX Transceiver with Connectors
Overview
Unlock the potential of your lighting setups with our cutting-edge wireless DMX / fixture management controller. Designed for maximum versatility and convenience, this controller boasts a single DMX universe and supports multiple connectivity options including 900MHz, 2.4 GHz WiFi, and Bluetooth, providing seamless integration with a variety of lighting fixtures. Configuring your lighting setup has never been easier, with options for configuration via a forthcoming app or through the intuitive front panel interface. Its robust IP65 housing ensures durability, allowing you to confidently use it in both indoor and outdoor environments without worry.
Supported protocols include DMX (with RDM planned for future software updates), Bluetooth 5.2, our proprietary Aria X2 Mesh Protocol, and Aria X2 Serial Protocol, offering unparalleled compatibility and flexibility. Equipped with advanced RF characteristics such as interference mitigation through CSMA and adaptive frequency hopping, as well as OTA updates, this controller ensures reliable performance in any environment. For seamless connectivity, the controller features 900MHz and 2.4GHz antennas, along with DMX 5-pin XLR input and output, and an outdoor locking power input and output. Power is no issue with universal AC100-240V compatibility and minimal power consumption of 2.2W, ensuring efficient operation. Safety features include a T1.25A/250V power fuse.
Built to withstand the rigors of professional use, the controller features an IP65 enclosure, front panel digital screen, and M12 threads for secure mounting. With a max ambient operating temperature range of -4°F to 113°F (-20°C to 45°C) and a maximum operating humidity of
Features
- Single DMX Universe
- 900Mhz., 2.4 GHz WiFi and Bluetooth
- Configuration via App (Coming Soon) or Front panel
- Wireless to DMX or DMX to Wireless
- IP65 Housing
Specifications
Supported Protocols:
- DMX (RDM is planned for future software release)
- Proprietary 802.15.4
- Aria X2 Mesh Protocol
- Bluetooth 5.2 (BLE)
- Aria X2 Serial Protocol (This is our proprietary serial protocol for communicating with a variety of fixtures.)
RF Characteristics:
- Frequency range
- 2404-2480 MHz
- 863-870 MHz (EU)
- 902-928 MHz
- Radio module: Aria X2
- Interference mitigation
- CSMA
- Adaptive frequency hopping (on the roadmap)
- OTA updates
Standards:
- Health
- EN IEC 62311:2020
- EN50665:2017
- BS EN IEC 62311:2020
- BS EN 50665:2017
- Safety
- EN IEC 62368-1: 2020+A11:2020
- BS EN IEC 62368-1: 2020+A11:2020
- EMC
- ETSI EN 301 489-1 V2.2.3 (2019-11)
- ETSI EN 301 489-3 V2.3.2 (2023-01)
- ETSI EN 301 489-17 V3.2.4 (2020-09)
- EN 55032:2015/A1:2020
- EN 55035:2017/A11:2020
- EN 61000-3-3:2013/A2:2021
- EN IEC 61000-3-2:2019/A1:2021
- BS EN 55032:2015/A1:2020
- BS EN 55035:2017/A11:2020
- BS EN 61000-3-3:2013/A2:2021
- BS EN IEC 61000-3-2:2019/A1:2021
- Radio
- EN 300 220-1 V 3.1.1 (2017-02)
- EN 300 220-2 V 3.2.1 (2018-06)
- ETSI EN 300 328 V2.2.2 (2019-07)
Connectors:
- 900MHz Antenna
- 2.4GHz Antenna
- DMX: 5-pin XLR Input and Output
- Outdoor Locking Power Input and Output
Power:
- Power Input: AC100-240V 50/60Hz
- Power Consumption: 2.2W (19mA) @ 120V/60Hz, 2.2W (10mA) @ 230V/50Hz
- Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
- IP65 Enclosure
- Front panel digital screen
- M12 Threads
- Max ambient operating temp range: -4°F to 113°F (-20°C to 45°C)
- Max operating humidity: <75%
- Storage temperature: 77°F (25°C)
Dimensions and Weight:
- Length: 6.46" (163.95mm)
- Width: 8.48" (215.30mm)
- Height: 1.66" (42mm)
- 2.7lbs (1.23kgs.)
