Product Description

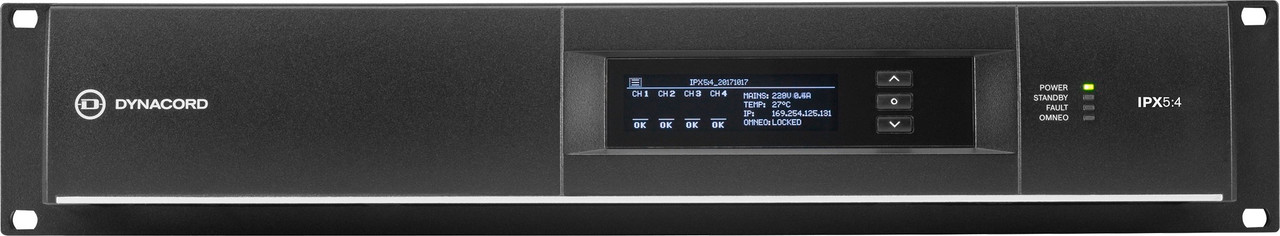

Dynacord IPX5:4 Multi-Channel Installation DSP Power Amplifier, 1250W at 8 Ohms

Overview

From stadiums and arenas, to houses of worship and concert halls, the IPX series from Dynacord delivers high-power, multi channel amplification for fixed install applications with the added touch of sophisticated speaker processing. Featuring smart Eco Mode, digitally controlled interleaved PFC supply, comprehensive fallback options, and integrated DSP, the IPX series can run in 48 kHz or true 96 kHz (including FIR Drive). Operate each channel individually in low impedance mode or 70 V/ 100 V Direct Drive Mode, or bridge to 140 V/ 200 V Direct Drive for greater expansion to drive all kinds of loudspeakers. Besides analog inputs, Dante, and OCA via OMNEO, network inputs are available. Fully integrated with IRIS-NET, local control and supervision are simple with the front panel OLED display. The IPX Series streamlines the needs of your fixed install system.

Features

• 4 x 1250 W multichannel installation DSP amplifier with digitally controlled PFC supply
• Fully integrated DSP with native 96 kHz and FIR Drive technology
• Dante and OCA integration via OMNEO with fallback options
• Parallel, Bridge and Parallel-bridge modes with 70/100/140/200 V and low impedance operation
• High efficiency Eco Rail technology for lower operating costs

Includes

• 8-pin Euroblock-type connector, Output, 6 mm
• (2) 6-pin Euroblock-type connector, Input
• 8-pin Euroblock-type connector, GPIO
• (4) M6x20 screw for rack mounting
• Mains power connector, 32 A with safety & assembly instructions

Specifications

• Low-Z Mode, Max. Output Power (Load Impedance 2Ω / 2.7Ω / 4Ω / 8Ω)
  • Normal Mode, all channels driven: 1300 W / 1500 W / 1250 W / 1250 W
  • Bridged: n/a / n/a / 2600 W / 2500 W
  • Parallel: 2500 W / 3000 W / 2500 W / 1250 W
  • Parallel Bridged: 5200 W / 6000 W / 5000 W / 5000 W
• Direct Drive Mode: Nominal Voltage/Output power
  • 70V - 1250 W
  • 100V - 1250 W
  • 140V (bridged only) - 2500 W
  • 200V (bridged only) - 2500 W
• Number of amplifier channels: 4
• Maximum Output Voltage, Normal mode, per channel: 150 Vpeak
• Maximum Output Current, Normal mode, per channel: 41 Apeak
• THD 3 dB below max, AES17, 1 kHz: < 0.05 %
• DIM 100 3.15 kHz, 15 kHz: < 0.15 %
• IMD-SMPTE, 60 Hz, 7 kHz: < 0.05 %
• Crosstalk ref. 1 kHz, 12 dB below Max, 8 Ω: < -80 dB
• Frequency Response, ref. 1 kHz, analog in to speaker out: 20 Hz to 20 kHz (±0.5 dB)
• Damping Factor, 20 Hz to 200 Hz, 8 ±: > 400
• Output Stage Topology: Class D, fixed frequency
• Signal to Noise Ratio Amplifier
  • A-weighted, analog input: 112 dB
  • A-weighted, digital input: 115 dB
• Output Noise
  • A-weighted, analog input: < -70 dBu
  • A-weighted, digital input: < -73 dBu
• Rated power consumption: 700 W
• 1/8 Maximum Output Power at 4 Ω: 900 W
• Idle Mode (no input signal): 75 W
• Standby Mode: < 15 W
• Dimensions (W x H x D): 48.3 x 8.81 x 51.42 cm (19.02 x 3.47 x 20.24 in)
• Weight: 14.3 kg (31.5 lb)
• Shipping Weight: 16.5 kg (36.4 lb)
