  • Doug Fleenor Design ALARMINTERFACE

    • Doug Fleenor Design ALARMINTERFACE Alarm Interface

    $877.24
    SKU:
    ALARMINTERFACE
    Condition:
    New
    Availability:
    Typically ships in 3-5 business days.
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

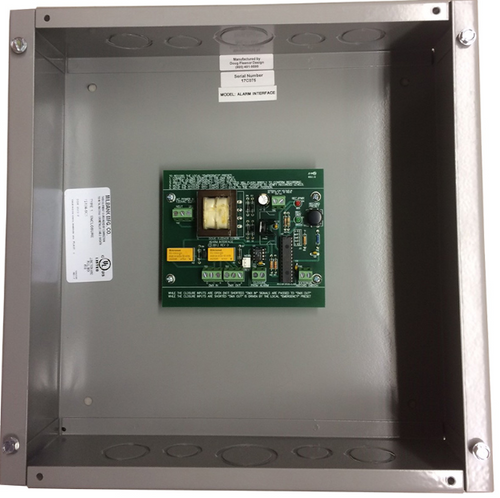

    Doug Fleenor Design ALARMINTERFACE Alarm Interface

    The ALARM INTERFACE allows an emergency system to trigger a pre-recorded emergency DMX512 backup look. In normal operation, the ALARM INTERFACE passes DMX512 signals untouched. While triggered, the incoming DMX signal is disconnected and the ALARM INTERFACE sends the emergency backup look. The emergency backup look can be set to any lighting levels required by the installer.

    Specs

    Environmental

    • Operating temperature: 0-40º C
    • Operating humidity: 10-90% non-condensing Indoor use only

    Electrical Ratings

    • Input: 90 - 132 VAC, 50 - 60Hz, 0.25A

    Size and Weight

    • JBOX version: 12"H x 4"D x 12"W NEMA1 electrical enclosure. Knockouts on 2 surfaces. 10 pounds
    • DIN version: 4.2"H x 2"D x 5.25"W , 1 pound

    Mounting

    • The -JBOX version of the ALARM INTERFACE enclosure can be mounted on any flat surface meeting the environmental requirements above. Conduit knockouts are provided for ease of installation of wiring.
    • The -DIN version of the ALARM INTERFACE can be mounted on standard DIN rail. No special accommodations are needed for cooling.

    Power Wiring

    • The ALARM INTERFACE is powered by 120VAC, 0.25A. Line and neutral connections are made via terminal blocks. Care must be taken to avoid routing power wiring over the circuit board or in the vicinity of low voltage wiring.

    DMX512 Wiring

    • The incoming DMX512 signal (from the control console) must be connected to the DMX_IN terminal block. Connections are provided for common (C), data minus (-), and data plus (+). DMX512 cabling to the dimmers and/or fixtures must be connected to the DMX OUT terminals. Similar connections are provided.

    Alarm Closure

    • Wiring The CLOSURE FROM ALARM terminals must be connected to the system which will trigger the emergency condition. The closure must be a maintained form C type capable of carrying 80mA at 5VDC. While the contacts are shorted, the emergency look will be activated. While the contact closure inputs are not shorted, the incoming DMX512 signal will be passed to the output unchanged.

    Other Details

    Products manufactured by Doug Fleenor Design (DFD) carry a five-year parts and labor warranty against manufacturing defects. It is the customer's responsibility to return the product to DFD at the customer's expense. If covered under warranty, DFD will repair the unit and pay for return ground shipping. If a trip is necessary to the customer's site to solve a problem, the expenses of the trip must be paid by the customer. This warranty covers manufacturing defects. It does not cover damage due to abuse, misuse, negligence, accident, alteration, or repair by other than by Doug Fleenor Design. Expendable components like batteries, relays, potentiometers, etc. are also exempt. Most non-warranty repairs are made for a fixed $50.00 fee, plus shipping.
