Product Description

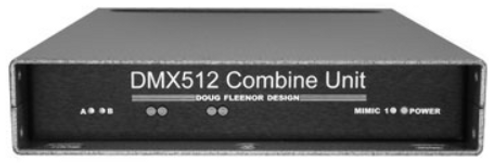

Doug Fleenor Design 521E-5 DMX Combine Unit - 5-Inputs - 1-Output - 5 pin XLR
The DMX512 Combine unit solves the problem of combining multiple DMX input signals into a single DMX output signal. The most common configuration of the unit allows two consoles to control a single set of dimmers in a highest takes precedence or pile on mode. Examples of where this might be necessary include booth console/stage manager's console, primary console/backup console, and where one console controls intensity of a moving light fixture while a second console is used for color and/or position. Units with up to six inputs are available. More than six inputs can be accommodated using a Master/Slave arrangement.
Units that patch and/or route the DMX dimmer channels are available for applications where two consoles control a single dimmer rack with loads in separate rooms. Such units prevent the operator in room "A" from bringing up the lights in room "B".
The DMX512 Combine Unit is based on a 20 MHz high performance microcontroller. The program is written in assembly language for maximum speed. The unit accepts any DMX signal: DMX512, DMX512/1990, 4 or 8 uS mark-after-break. The unit may be ordered to accept Colortran Multiplex on one or both inputs allowing the Unit to serve as a CMX to DMX combiner/converter. The unit may be ordered to output Colortran Multiplex allowing the Unit to serve as a DMX to CMX combiner/converter.
Features
- Only one fiftieth of a second delay
- No user adjustments
- Chassis is 1/10" powder coated aluminum
- Two 1/2" holes are provided for clamps
- Carry handle allows access to connector
- DMX pinouts are printed on the unit
- Uses standard 5 pin connectors
- All integrated circuits are socketed
- Power and input signal indicators
- Dimmer 1 output level mimic
- Internal power supply
- Internally jumpered "hold" feature
Specs
Baud rate: 250 Kilobaud
Input circuit: EIA-485 receiver with 120 ohm termination between +data and -data
Input connectors: Gold plated 5 pin male (Neutrik D1 series) Terminal Block Optional
Output circuit: EIA-485 driver
Output connector: Gold plated 5 pin female (Neutrik D1 series) Terminal Block Optional
Input to output delay: 1/100 second average 1/50 second maximum
Power input: 100 - 120 volts, 50/60 hertz, 12 watts (208 - 240 volt optional)
Power cord: Attached 5' 18/3 cord with parallel blade w/ ground plug
Color: Silver hammertone with black front and back panels
Size and weight: 1.74”H × 11.25”D × 8.25"W, 4.9 pounds
