Product Description

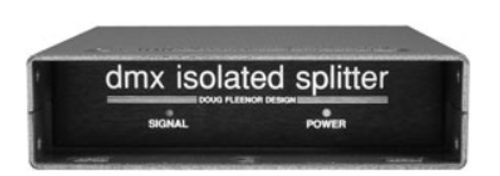

Doug Fleenor Design 125EE-5 Enhanced Isolated Amplifier and Splitter - 5 pin XLR
The Enhanced Splitter includes all the features of our standard models with added protection to meet the needs of harsh operating conditions. As with our standard splitters, all outputs are isolated from the input and from the other outputs by optical couplers. Every output has its own power supply and line driver. For protection against electrical storms, the Enhanced Splitter adds four transient absorbers on the input, two on each output, and one on the power line. To protect against miswiring, the Enhanced Splitter has self-resetting fuses on the DMX512 input and outputs that protect the Splitter against damaging voltages up to 120 volts. Indicators on each output display power and termination status. Indicators on the input display signal present and valid DMX. The Enhanced Splitter is designed to work on any voltage between 90 and 240 volts.
The Enhanced Splitter allows connection of DMX receivers (dimmers, color changers, moving lights, etc.) in a star configuration as opposed to a daisy chain configuration. In a star configuration, each control cable is run to a central point, in this case the splitter. In a daisy chain configuration all the devices are connected on one control cable, the output of one feeding the input of the next. It is good practice to limit the number of receivers on a DMX512 output to 32 devices. The Enhanced Splitter gives you five outputs from one input allowing up to 160 receivers (32 per output).
Features
- Input electrically isolated from output
- Outputs are isolated from each other
- Outputs are separately buffered
- Input and output DMX lines are protected by transorb diodes
- Input and outputs are fused
- No user adjustments
- DMX pinouts are printed on the splitter
- Chassis: .1" powder coated aluminium
- Two 1/2" holes provided for clamps, 3/8" slots provided for safety cables
- Carry handle allows access to connector release tabs
- IEC-320 power connector
- Gold plated Neutrik 5 pin connectors
- All integrated circuits are socketed
- Uses 2500 volt optical couplers
- 5000 volt line transformers
- "Air gap" circuit board under isolator
- 60 mA drive current. Slew rate and current limited
- Output indicators identify unterminated outputs
- Input indicators display signal present and "valid" DMX
Specs
Baud rate: 0 to 250 Kilobaud
Input circuit:
- EIA-485 receiver protected by two 100ohm PTC
- 120 ohm 2 watt input termination
- Four transorb diodes: two on +Data, two on -Data
Input signal:
- 0.5 volts minimum, 12 volts maximum
- Input can withstand up to 120 volts without damage, transients up to 5KV
Output circuit:
- "Slew rate limited" EIA-485 driver protected by Polyswitch fuses
- One transorb diode on +Data, one on -Data (Slew rate limited outputs reduce the errors caused by unterminated lines)
Output signal:
- EIA-485 driver yields an approximate 3 volt signal into 120 Ohms
- Outputs can withstand up to 12 volts without damage, transients up to 5KV
- Connectors: Gold plated 5 pin Neutrik D-1 Series (male input, female outputs)
Isolation:
- 2500 volt optical coupler
- 5000 volt split bobbin transformer
- Power input: 90 - 240 volts, 50/60 hertz, 24 watts IEC-320 (international) input connector
Listings: UL Listed, CE Marked
Color: Silver hammertone with black front and back panels
Size and weight: 1.74”H × 11.25"D × 8.25”W, 4.9 pounds
Rack kit: Model RK 8-1 mounts one unit, RK 8-2 mounts two units
