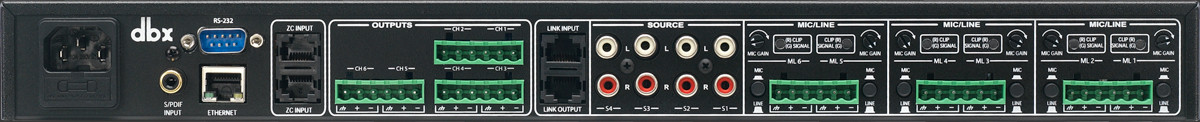

- 12 Inputs / 6 Outputs
- 6 Balanced Mic/Line Inputs
- 4 Unbalanced, Mono-Summed RCA Input Pairs
- S/PDIF Input
- Microphone Gain per Channel
- Pre-Configured Architecture
- Two Configurable Input Insert Positions
- One Configurable Output Insert Position
- AutoWarmth® per Output Zone
- Link Bus
- Comprehensive Signal Metering
- Front Panel LCD
- 9 User-Specified Front Panel Control
- Optional ZC Controllers
- Ethernet Control
- Serial Control
- Third Party Control
- Wizard-Driven Configuration
Specifications
Input | 12 Total - (6) Balanced Mic/Line Inputs, (4) Unbalanced, Mono-Summed RCA Input Pairs, S/PDIF Input |
Input Type | Euroblock (Mic/Line), RCA (Source) |
Input Impedance | Euroblock: >50kΩ Balanced, >25kΩ Unbalanced, RF Filtered; RCA: >25kΩ Unbalanced, RF Filtered |
Max Input | +20dBu Mic/Line, +12dBu RCA |
CMRR | > 40dB, typically >55db @ 1kHz |
Mic Preamp gain | 30 to 60dB |
Mic Preamp Equivalent Input Noise (EIN) | < -118dBu, 22Hz-22kHz, 150Ω Source Impedance |
Mic Preamp Phantom Power | 15V |
Output | 6 Total |
Output Type | Electronically Balanced, RF Filtered Euroblock |
Output Impedance | 120Ω Balanced, 60Ω Unbalanced |
Max Output | +20dBu |
I/O Meter | 6 Independent Six-Segment Lightpipe Output Meters that range from -30 to +20 dBu, Threshold Meters |
LCD Display | LCD Display provides information about Source Selection, Page Steering, Zone Volume and Mute |
A/D Converter | dbx Type IV™ Conversion System |
A/D Dynamic Range | (line) >113dB, A-weighted, >110dB unweighted |
Type IV Dynamic Range | >119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW |
Sample Rate | 48kHz |
D/A Dynamic Range | 112dB A-weighted, 109dB unweighted, 22kHz BW |
Dynamic Range | >110dB A-weighted, >107dB unweighted, 22kHz BW |
THD+Noise | 0.003% typical at +4dBu, 1kHz, 0dB gain |
Frequency Response | 20Hz – 20kHz, +/- 0.5dB |
Interchannel Crosstalk | >80dB typical |
Propagation Delay | 0.8 msec |
Operating Voltage | 100-240 VAC, 50/60Hz |
Power Consumption | 27 W |
BTU | <92.13 |
Unit Weight | 6.2 lbs / 2.81 kg |
Shipping Weight | 8.35 lbs / 3.78 kg |
Dimensions | 1.75” (1U) x 19” x 7.75” (45mm x 483mm x 197mm) |
Safety Agency Certifications | UL 60065, IEC 60065, E 60065, EN 55013 |
