Product Description

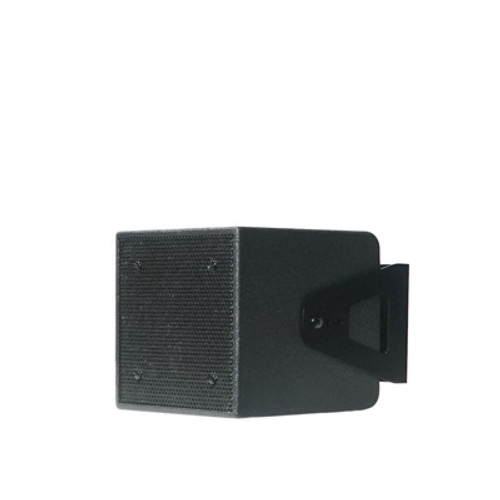

dBTechnologies IS5TW 60W 4-Inch Passive Installation Loudspeaker

Overview

The DB Technologies IS5T in white finish is a 60W 4-inch passive installation loudspeaker, designed to deliver high-quality background music in permanent installations. Compact and sleek, the IS5T is perfect for environments such as restaurants, hotels, offices, retail spaces, and other venues where both excellent sound performance and a discreet design are essential. With its 5-inch full-range woofer, the IS5T provides clear and balanced audio, ensuring a pleasant listening experience for background music and public address applications.

The IS5T's cube design, measuring 160mm x 160mm, allows it to seamlessly fit into any space without compromising the aesthetic of the venue. The white finish enhances its ability to blend into modern or minimalistic interiors, making it an ideal choice for venues that prioritize design alongside audio performance. The speaker is equipped with a mounting bracket, included in the package, which allows for fast and easy installation on walls or ceilings. Additionally, the IS5T uses Phoenix connectors, offering secure and reliable wiring connections, simplifying the setup process while ensuring dependable long-term performance.

Despite its small footprint, the IS5T offers impressive acoustical performance. With a frequency response of 95 Hz to 18,000 Hz, the speaker is capable of reproducing a wide range of frequencies, delivering clear mids and highs that are perfect for background music. Its wide 110° x 110° dispersion pattern ensures even sound distribution, providing consistent audio coverage across the entire space. With a sensitivity of 92 dB and a maximum SPL of 116 dB, the IS5T can fill small to medium-sized spaces with clear, distortion-free sound, making it ideal for low-profile audio reinforcement.

The IS5T is designed with durability and ease of use in mind. Its housing is made from plywood, coated with a water-resistant finish, ensuring long-lasting performance in indoor environments. It also features an IP32 rating, offering protection against light dust and water ingress, which ensures reliability over extended periods. Weighing just 2.8 kg, the IS5T is lightweight and easy to handle during installation. The speaker also includes two M6 threaded rigging points, allowing for flexible mounting options, making it suitable for a wide variety of installation scenarios.

The DB Technologies IS5T in white finish is a versatile and efficient solution for installers and venue owners looking for high-quality sound in a compact, easy-to-install package. With its sleek design, reliable performance, and ease of installation, the IS5T is an excellent choice for permanent audio installations in environments that demand both sound quality and aesthetic integration.

Features

• 60W RMS power handling with a 5-inch full-range woofer for clear and balanced background music.
• Compact cube design (160mm x 160mm) for seamless integration into small or tight spaces.
• Wide 110° x 110° dispersion pattern ensures even sound coverage throughout the room.
• Sleek white finish for unobtrusive installation in modern or minimalist interiors.
• Includes a mounting bracket for quick and easy installation on walls or ceilings.
• Frequency response from 95 Hz to 18,000 Hz, providing clarity for background music and speech applications.
• Maximum SPL of 116 dB, delivering sufficient sound output for small to medium-sized venues.

Specifications

Technical Data

• Speaker Type: Passive Fullrange Speaker

Acoustical data

• RMS Power: 60 W
• Peak Power: 240 W
• Frequency Response [-6 dB]: 95 Hz - 18,000 Hz
• Impedance: 8 Ohm
• Sensitivity 1W@m: 92 dB
• Max SPL: 116 dB
• LF: 1x 5", 1 " v.c. Fullrange woofer
• Dispersion: 110x110°

Input

• Connections: Phoenix

Mechanics

• Housing: Plywood, water-painted coating
• Rigging points: 2x M6 threaded nut
• Accessories: bracket included
• IP rating: IP 32
• Width: 160 mm (6.3 in)
• Height: 160 mm (6.3 in)
• Depth: 180 mm (7 in)
• Weight: 2.8 kg (6.17 lbs)
