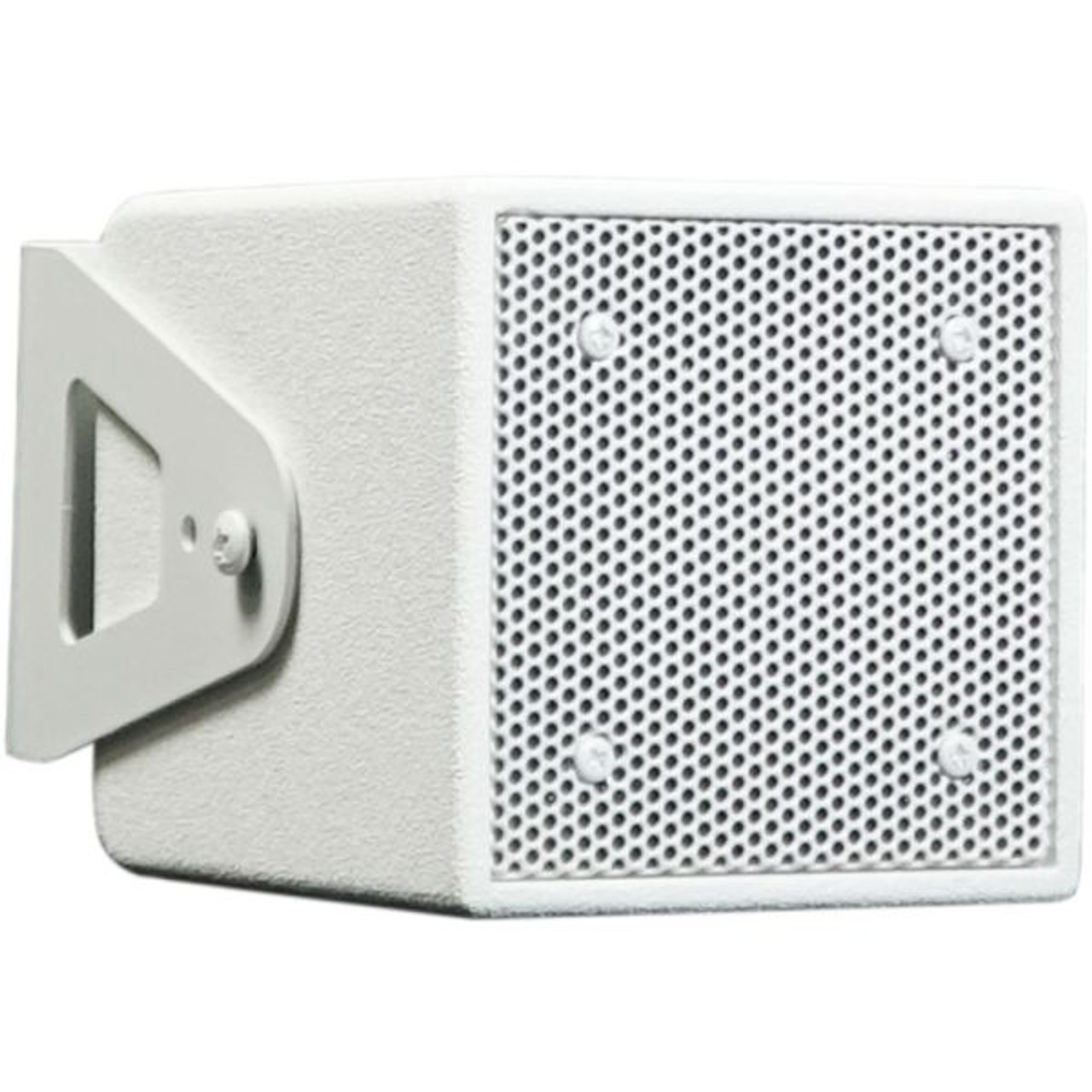

dBTechnologies IS4TW 4-inch Passive Installation Loudspeaker, White

Overview

The DB Technologies IS4T in white finish is a compact 40W 4-inch passive installation loudspeaker designed for permanent installations where high-quality background music and an unobtrusive aesthetic are essential. As the smallest model in the IS series, the IS4T is perfect for environments such as retail stores, restaurants, hotels, and offices where space-saving and elegant design are priorities. Equipped with a single 4-inch full-range woofer, this speaker provides crisp, clear sound while maintaining a low-profile presence, making it ideal for background music and paging applications.

The IS4T's compact cube design, measuring just 130mm x 130mm, allows it to fit effortlessly into any space, whether mounted on walls or ceilings. Its sleek white finish enhances its ability to blend seamlessly into modern interiors, ensuring that the speaker delivers high-quality audio without detracting from the visual appeal of the environment. The included mounting bracket allows for quick and straightforward installation, making it possible to have the speaker up and running within minutes. With its Phoenix connectors, the IS4T ensures secure and reliable wiring, further simplifying the installation process.

Despite its small size, the IS4T delivers impressive sound performance, with a frequency response range of 110 Hz to 20,000 Hz, ensuring clear mid and high frequencies for music and speech applications. Its wide 110° x 110° dispersion pattern ensures that sound is evenly distributed across the room, providing consistent audio coverage. The speaker's sensitivity of 89 dB and maximum SPL of 111 dB ensures that it delivers sufficient sound levels for ambient music without distortion, making it suitable for smaller to medium-sized rooms where background sound is required.

Constructed from durable plywood with a water-resistant coating, the IS4T is built for long-term reliability in permanent installations. It is IP32-rated, meaning it is protected against light dust and water exposure, ensuring that it continues to perform reliably in a variety of indoor environments. The speaker weighs only 2 kg, making it lightweight and easy to handle during installation. In addition, the IS4T features two M6 threaded rigging points for versatile mounting options, allowing it to be securely mounted in different positions according to the needs of the installation.

The DB Technologies IS4T in white finish offers a high-quality, compact audio solution for permanent installations where both audio clarity and aesthetic integration are critical. Its simple design, ease of installation, and reliable performance make it an ideal choice for installers and venue owners looking for a discreet yet powerful background music solution.

Features

• 40W RMS power handling with a 4-inch full-range woofer for clear and high-quality background music.
• Compact cube design (130mm x 130mm) for easy integration into small spaces and tight installations.
• Wide 110° x 110° dispersion pattern for consistent sound coverage throughout the room.
• Sleek white finish for unobtrusive installation, blending seamlessly into modern interiors.
• Includes mounting bracket for fast and simple installation on walls or ceilings.
• Frequency response of 110 Hz to 20,000 Hz, providing clarity for music and speech applications.
• Maximum SPL of 111 dB, ensuring sufficient sound output for small to medium-sized spaces.
• Durable plywood housing with a water-resistant coating, designed for long-term use in permanent installations.
• Phoenix connectors for secure and easy wiring, simplifying the installation process.
• Lightweight at just 2 kg, making it easy to install and handle during setup.

Specifications

Technical Data

• Speaker Type: Passive Fullrange Speaker

Acoustical data

• RMS Power: 40 W
• Peak Power: 160 W
• Frequency Response [-6 dB]: 110 hz - 20,000 Hz
• Impedance: 8 Ohm
• Sensitivity 1W@m: 89 dB
• Max SPL: 111 dB
• LF: 1x 4", 1 " v.c. Fullrange woofer
• Dispersion: 110x110°

Input

• Connections: Phoenix

Mechanics

• Housing: Plywood, water-painted coating
• Rigging points: 2x M6 threaded nut
• Accessories: bracket included
• IP rating: IP 32
• Width: 130 mm (5.1 in)
• Height: 130 mm (5.1 in)
• Depth: 150 mm (5.9 in)
• Weight: 2 kg (4.4 lbs)
