Product Description

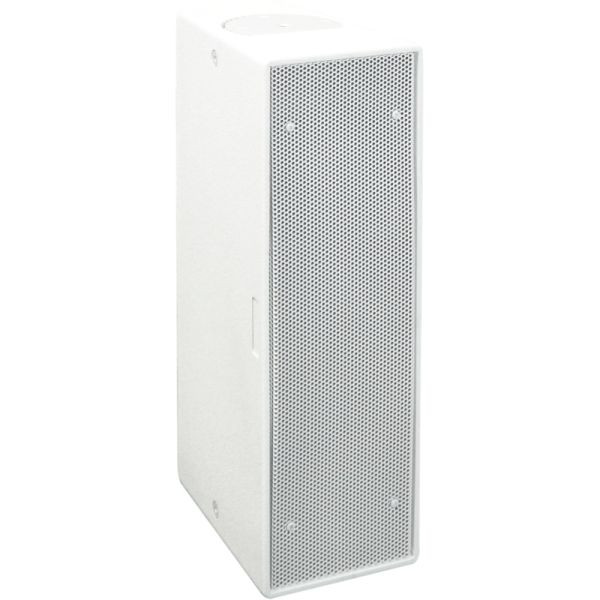

dBTechnologies IS25TW 120W 2 x 5-inch Passive 2-Way Installation Loudspeaker

Overview

The DB Technologies IS25T in white finish is a compact and versatile 120W dual 5-inch passive 2-way installation loudspeaker, designed specifically for permanent installations where clarity, performance, and aesthetic integration are key. Featuring two 5-inch woofers and a 1-inch compression driver for high frequencies, this speaker is ideal for delivering crisp, balanced sound in venues such as restaurants, conference rooms, retail environments, and other commercial spaces. Its unobtrusive white finish allows the IS25T to blend seamlessly into any environment, making it perfect for installations where a discreet audio solution is required.

One of the main strengths of the IS25T is its flexible 100° x 60° dispersion pattern, which is enabled by a rotatable horn. This feature allows the speaker to be installed either vertically or horizontally without compromising the audio coverage, making it adaptable for various configurations and ensuring even sound distribution throughout the space. The IS25T uses the same mounting accessories as the Vio X205, offering easy installation with minimal effort. It comes equipped with Phoenix connectors for secure and reliable wiring, ensuring quick setup and long-term durability in permanent installations.

The IS25T offers a frequency response of 85 Hz to 20,000 Hz, allowing it to handle both speech and music with clarity and precision. The speaker's internal crossover, set at 1500 Hz, ensures a smooth transition between the low and high frequencies, providing an even, well-balanced sound. With a sensitivity rating of 94.5 dB and a maximum SPL of 121.5 dB, the IS25T delivers robust sound output, making it suitable for small to medium-sized venues. Its compact design ensures it can be easily integrated into a range of environments without drawing attention, while its smooth and minimalistic design enhances its aesthetic appeal.

Constructed from durable plywood with a water-resistant coating, the IS25T is built to withstand the demands of long-term installation. It includes M10 rigging points on both the top and bottom, providing flexibility in mounting options, whether installed on walls or ceilings. With an IP32 rating, the speaker is protected against light dust and water ingress, ensuring reliability and longevity in indoor environments. Weighing just 7 kg, the IS25T is lightweight and easy to handle during installation, making it an excellent choice for professional installers looking for a high-quality yet unobtrusive audio solution.

Features

• 120W RMS power handling with dual 5-inch woofers for clear and balanced sound.
• Rotatable 100° x 60° horn for flexible vertical or horizontal installation without affecting coverage.
• White finish allows for seamless integration into various interior designs, making it ideal for discreet installations.
• Phoenix connectors ensure secure and reliable wiring, simplifying the installation process.
• Wide frequency response from 85 Hz to 20,000 Hz, suitable for both speech and music applications.
• Maximum SPL of 121.5 dB, delivering strong output for small to medium-sized spaces.
• Durable plywood housing with a water-resistant coating, designed for long-term use in permanent installations.
• Equipped with M10 rigging points for flexible mounting options, including wall and ceiling installations.
• IP32 rating provides protection from light dust and water ingress, ensuring long-lasting reliability.
• Lightweight and easy to install, weighing only 7 kg, making it perfect for professional installers.

Specifications

Technical Data

• Speaker Type: Passive 2-way Speaker

Acoustical data

• RMS Power: 120 W
• Peak Power: 480 W
• Frequency Response [-6 dB]: 85 Hz - 20,000 Hz
• Impedance: 8 Ohm
• Sensitivity 1W@m: 94.5 dB
• Max SPL: 121.5 dB
• HF: 1x 1", 1.4" v.c.
• LF: 2x 5", 1" v.c.
• Dispersion: 100x60° [Rotatable Horn]
• X-Over Frequency: 1500 Hz (internal X-Over)

Input

• Connections: Phoenix

Mechanics

• Housing: Plywood, water-painted coating
• Rigging points: 2x M10 threaded nut (top and bottom)
• IP rating: IP 32
• Width: 152 mm (6 in)
• Height: 485 mm (19 in)
• Depth: 240 mm (9.4 in)
• Weight: 7 kg (15.4 lbs)
