Product Description

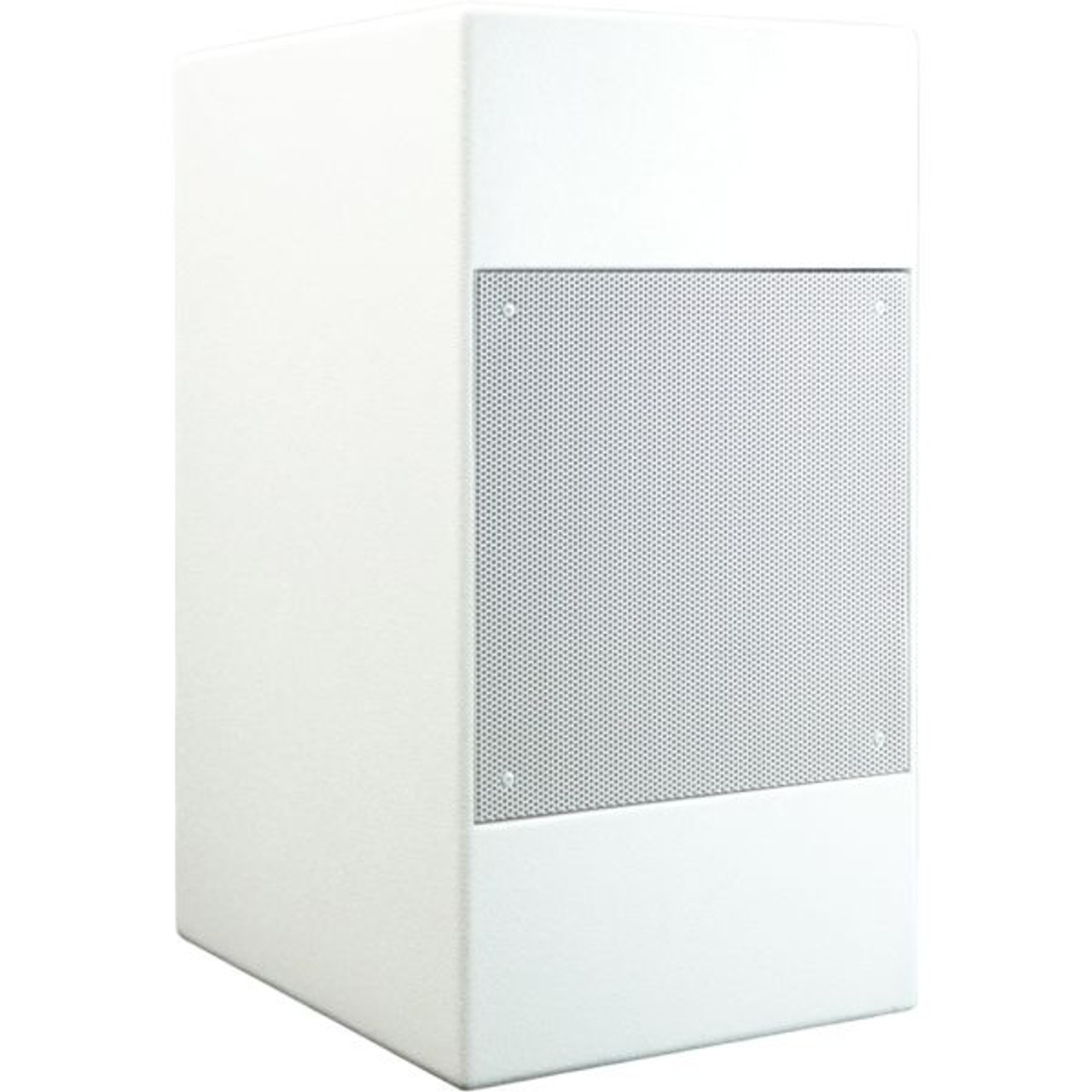

dBTechnologies IS12SW Passive Installation Subwoofer, White

Overview

The DB Technologies IS12S in white finish is a 250W 12-inch passive installation subwoofer, purpose-built for seamless integration into permanent sound systems. This subwoofer is part of the IS series, known for its compact design and unobtrusive aesthetic, making it perfect for venues requiring a low-profile yet powerful low-end extension. The IS12S features a premium 12-inch woofer with a 2.5-inch voice coil, capable of producing deep and accurate bass, starting at 40 Hz, providing an excellent foundation for any sound system. Whether installed in auditoriums, restaurants, or other commercial spaces, the IS12S delivers reliable, high-quality low-frequency reinforcement.

One of the key advantages of the IS12S is its ease of installation, which is made possible through the use of Phoenix connectors that ensure quick and secure wiring. The white finish allows it to blend into a variety of interior designs, maintaining a clean and professional look without drawing attention. The subwoofer is designed with versatility in mind, featuring 16 M8 rigging points that provide flexible mounting options, allowing for both floor-mounted and suspended setups. Its compact dimensions make it an ideal choice for venues where space is at a premium, yet powerful low-end audio performance is required.

The IS12S is built for durability, with a sturdy plywood enclosure coated in a water-resistant paint, ensuring it can withstand the demands of permanent installation in a range of environments. With 250W RMS power and the ability to handle peak power up to 1000W, this subwoofer delivers a maximum SPL of 127.5 dB, ensuring powerful bass output in medium to large spaces. Its 8-ohm impedance makes it compatible with a wide range of professional audio amplifiers, offering flexibility in system design. The combination of high sensitivity (97.5 dB) and robust construction ensures that the IS12S provides not only excellent sound but also long-term reliability.

Overall, the DB Technologies IS12S in white finish is a compact, powerful, and aesthetically pleasing solution for permanent installations that require high-performance bass reinforcement without compromising on design or ease of installation.

Features

• 250W RMS power handling with a 12-inch woofer for strong and precise bass performance.
• Compact and unobtrusive design, ideal for permanent installations in venues requiring a low-profile subwoofer.
• White finish allows for seamless integration into a variety of interior designs.
• Phoenix connectors enable quick and secure wiring, making installation straightforward.
• Delivers deep bass with a frequency response starting from 40 Hz, providing a solid low-end foundation.
• Capable of producing a maximum SPL of 127.5 dB, making it suitable for medium to large spaces.

Specifications

Technical Data

• Speaker Type: Passive Subwoofer

Acoustical data

• RMS Power: 250 W
• Peak Power: 1000 W
• Frequency Response [-6 dB]: 40 Hz - custom LPF
• Impedance: 8 Ohm
• Sensitivity 1W@m: 97.5 dB
• Max SPL: 127.5 dB
• LF: 1x 12", 2.5" v.c.

Input

• Connections: Phoenix

Mechanics

• Housing: Plywood, water-painted coating
• Rigging points: 16x M8 pickup point
• IP rating: IP 32
• Width: 335 mm (13.2 in)
• Height: 624 mm (24.6 in)
• Depth: 400 mm (15.7 in)
• Weight: 15 kg (33 lbs)
