Product Description

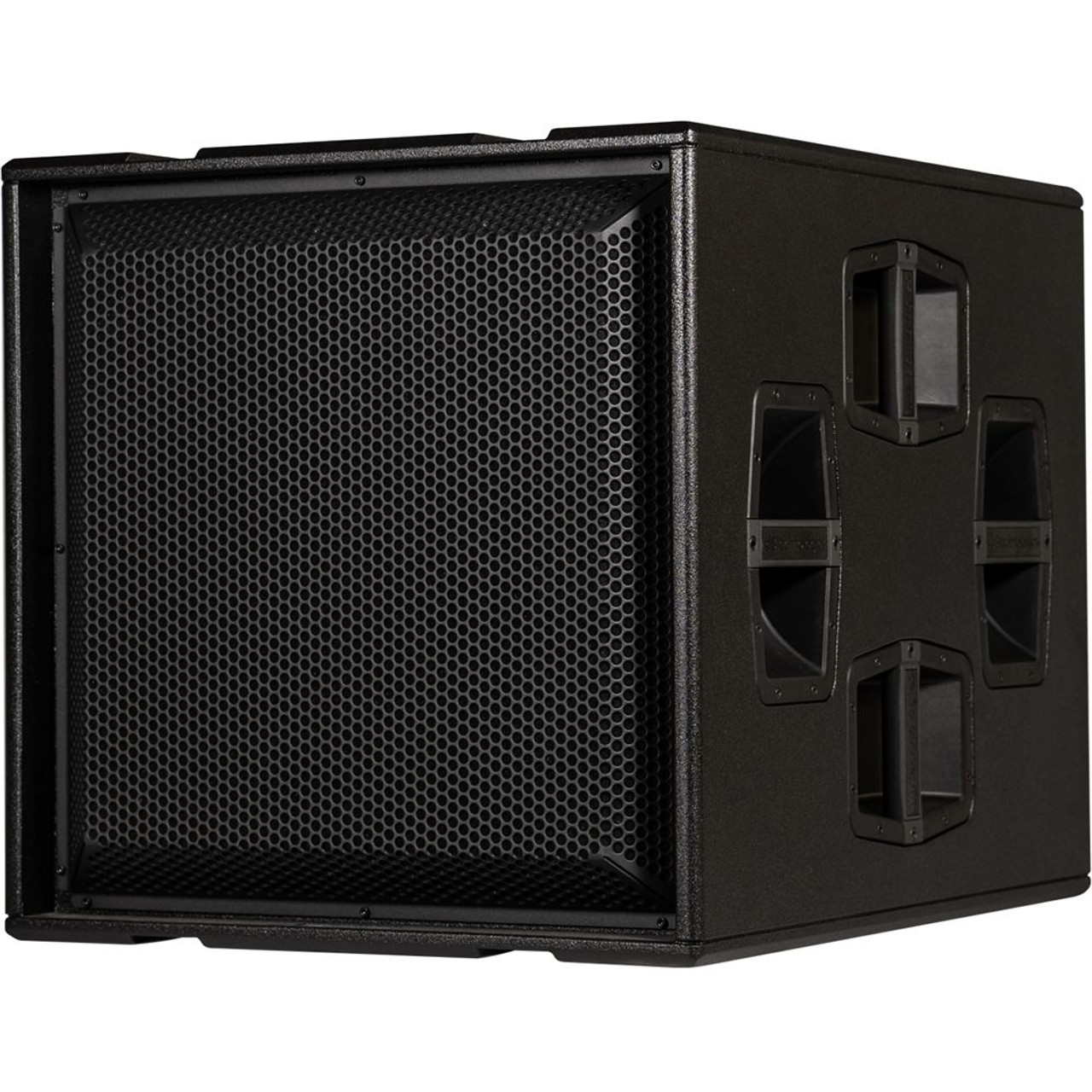

dBTechnologies IGS1 3200W 18-inch Powered Bass Reflex Subwoofer with 4-inch Voice Coil and RDNet

Overview

The DB Technologies IGS1 is a robust, high-performance powered subwoofer designed to complement the INGENIA column systems with its powerful low-frequency output. Engineered to deliver a full-bodied, deep bass response in any application, the IGS1 ensures a wide range of configurations, making it a versatile choice for various sound reinforcement setups. Equipped with an 18-inch woofer and a solid bass-reflex cabinet, the IGS1 features a 1600W RMS Class D amplifier that guarantees maximum reliability and impressive sound pressure levels. The system's RDNet compatibility allows for complete real-time monitoring and control through Aurora Net software, ensuring seamless integration and advanced configurations with other dBTechnologies full-range systems, including the IGS2 subwoofer.

The IGS1 offers an impressive maximum SPL of 136 dB, making it ideal for large venues and events that require powerful low-end reproduction. Its advanced DSP controller, paired with 32-bit processing and 24-bit 96kHz AD/DA conversion, ensures high-quality sound with precise control over the system's performance. The IGS1 also includes a rotary FunctionControl for easy adjustments to system settings. The subwoofer features a wide range of selectable crossover frequencies, allowing users to fine-tune the system for optimal integration with full-range speakers. With its durable plywood cabinet and polyurea finish, the IGS1 is built to withstand the rigors of live sound applications, offering both durability and longevity.

Designed for seamless scalability, the IGS1 can easily be paired with the IGS2 system or other dBTechnologies full-range systems. Its M20 threaded pole mount makes it simple to integrate with top speakers, and two pick points allow for rigging with dedicated fly-bars, offering additional installation flexibility. For easy transport, the IGS1 features four built-in handles and a back panel with wheels, ensuring hassle-free mobility. Whether used in standalone mode or part of a larger sound reinforcement system, the IGS1 delivers exceptional low-frequency performance with advanced monitoring and control capabilities, making it the perfect solution for any professional audio setup.

Features

• 3200W peak power and 1600W RMS for powerful and reliable low-frequency performance
• 18-inch woofer with a 4-inch voice coil for deep, impactful bass
• Maximum SPL of 136 dB for high output in large-scale applications
• RDNet compatibility for real-time monitoring and control via Aurora Net software
• 32-bit DSP processing with 24-bit 96kHz AD/DA converters for exceptional audio quality
• Selectable crossover frequencies (60-400Hz) for precise system integration and sound tuning

Specifications

Acoustical Data

• Frequency Response [-10dB]: 36Hz to Xover
• Max SPL (1 m): 136 dB
• LF: 18-inch
• LF Voice Coil: 4-inch

Amplifier

• Amp Class: Class D with PFC
• RMS Power: 1600 W
• Peak Power: 3200 W

Processor

• Controller: 32bit processing
• AD/DA Converter: 24bit 96kHz
• Limiter: Peak, Thermal, RMS
• Crossover Frequency: 60-65-70-75-80-90-100-110-120-400 [Hz]
• Controls: FunctionControl (rotary)

Input

• Signal Input/Output: 1x XLR In/Out, 1x PowerCon True In/Out, 2x Ethercon In/Out

Mechanics

• Housing: Plywood cabinet with Polyurea finish

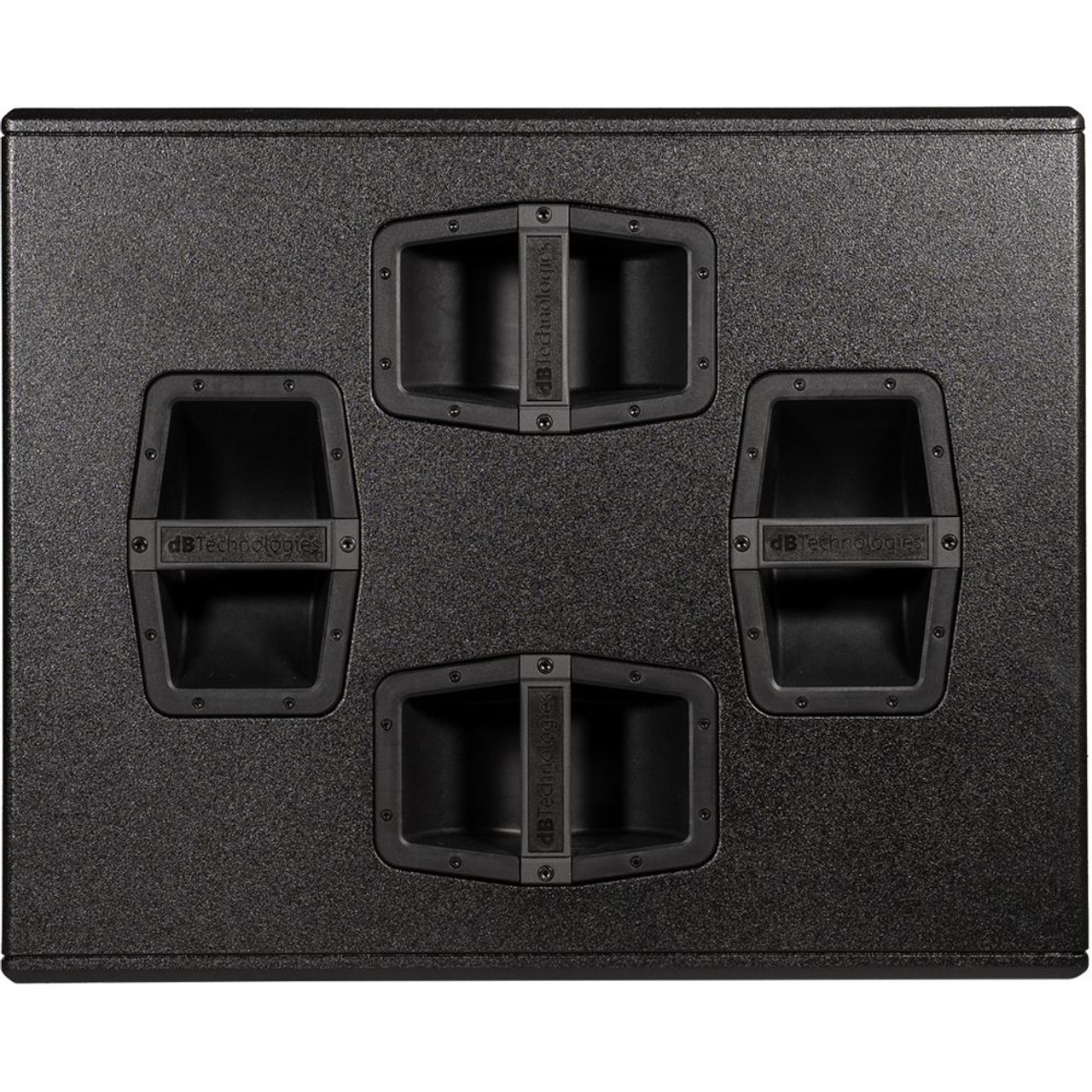

• Handles: 4x side
• Pole Mount: 1x M20 on top
• Rigging Points: 2x Pick Points on top to fix DRK 10/20 rigging frames
• Width: 22.76 inches
• Height: 22.83 inches
• Depth: 28.35 inches
• Weight: 100 lbs
