Product Description

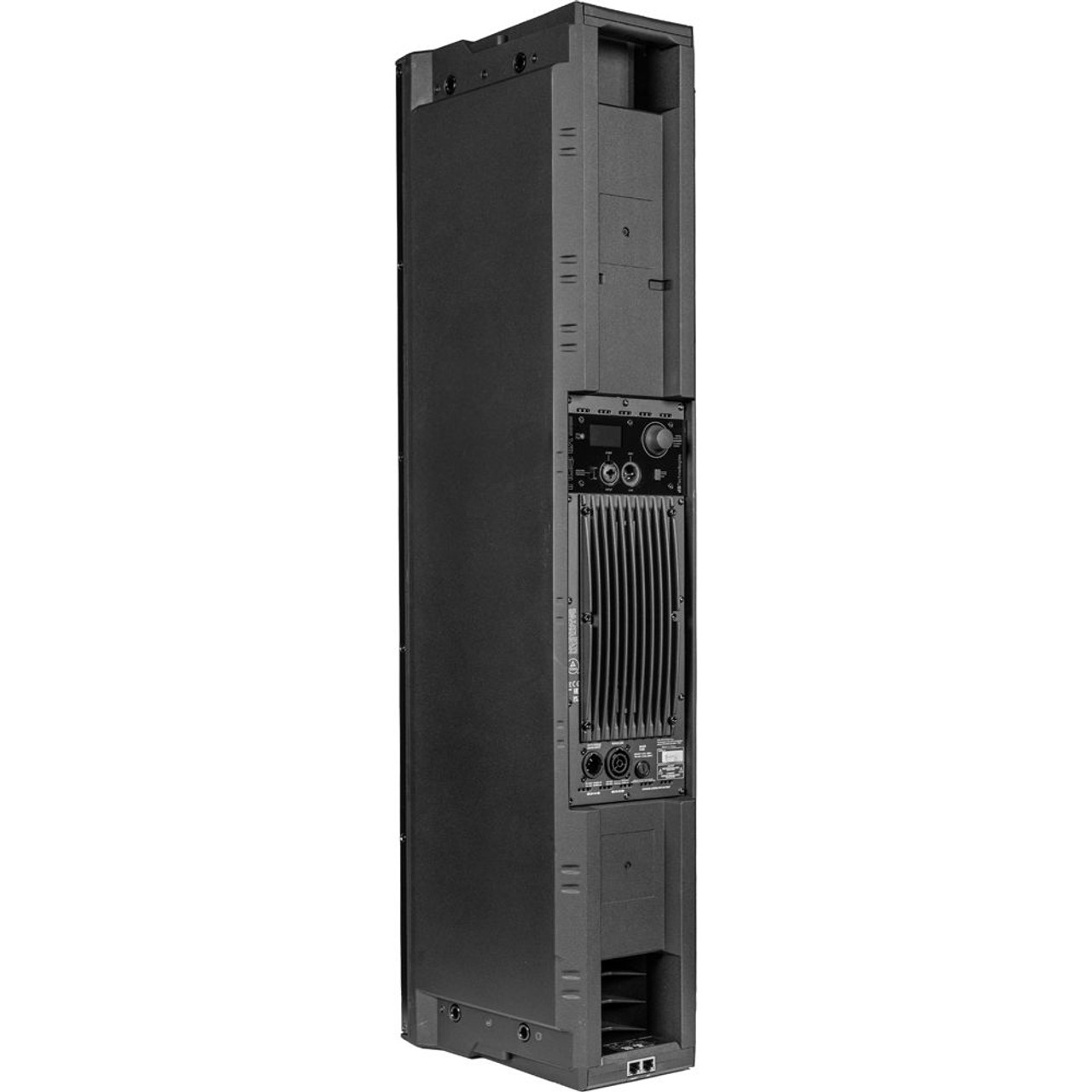

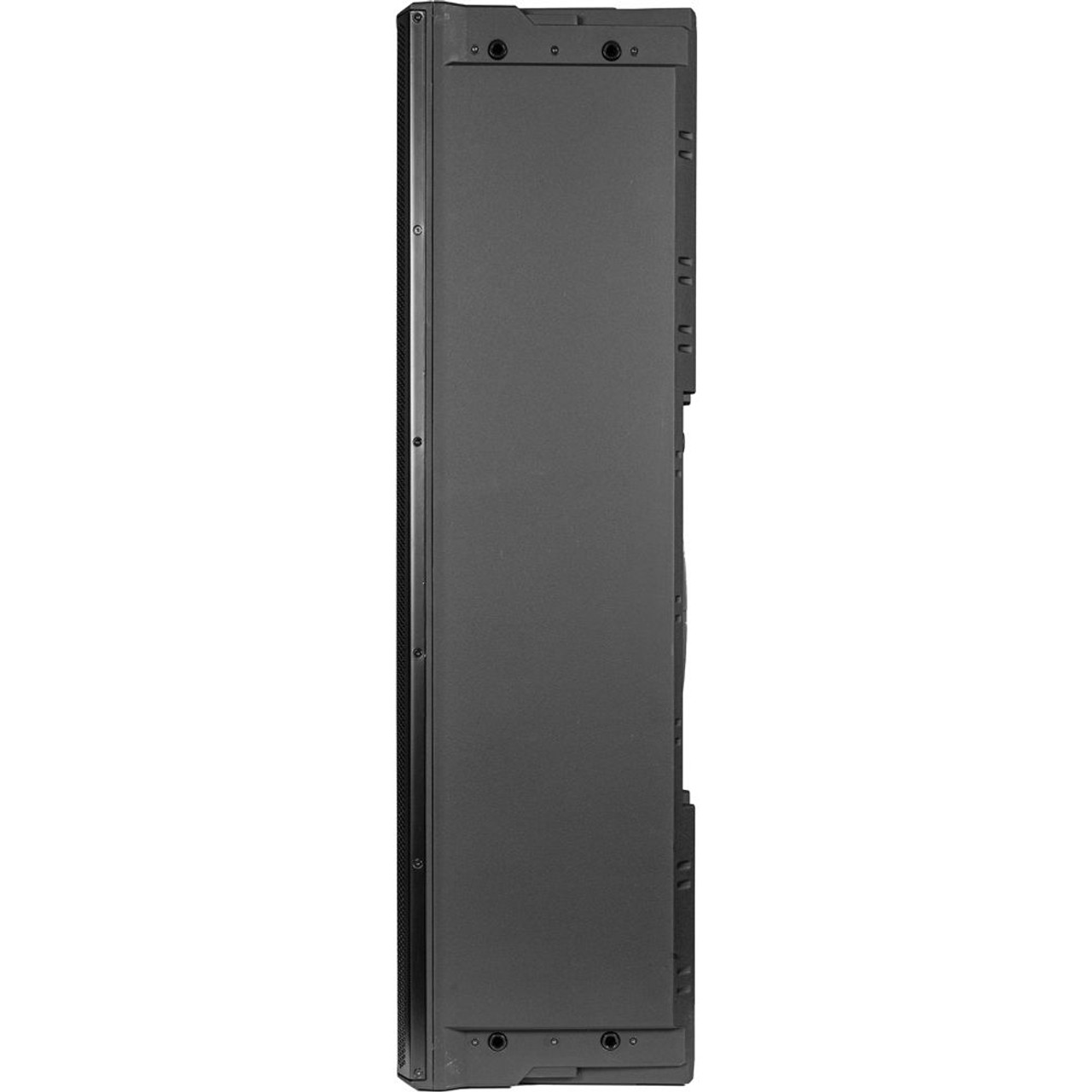

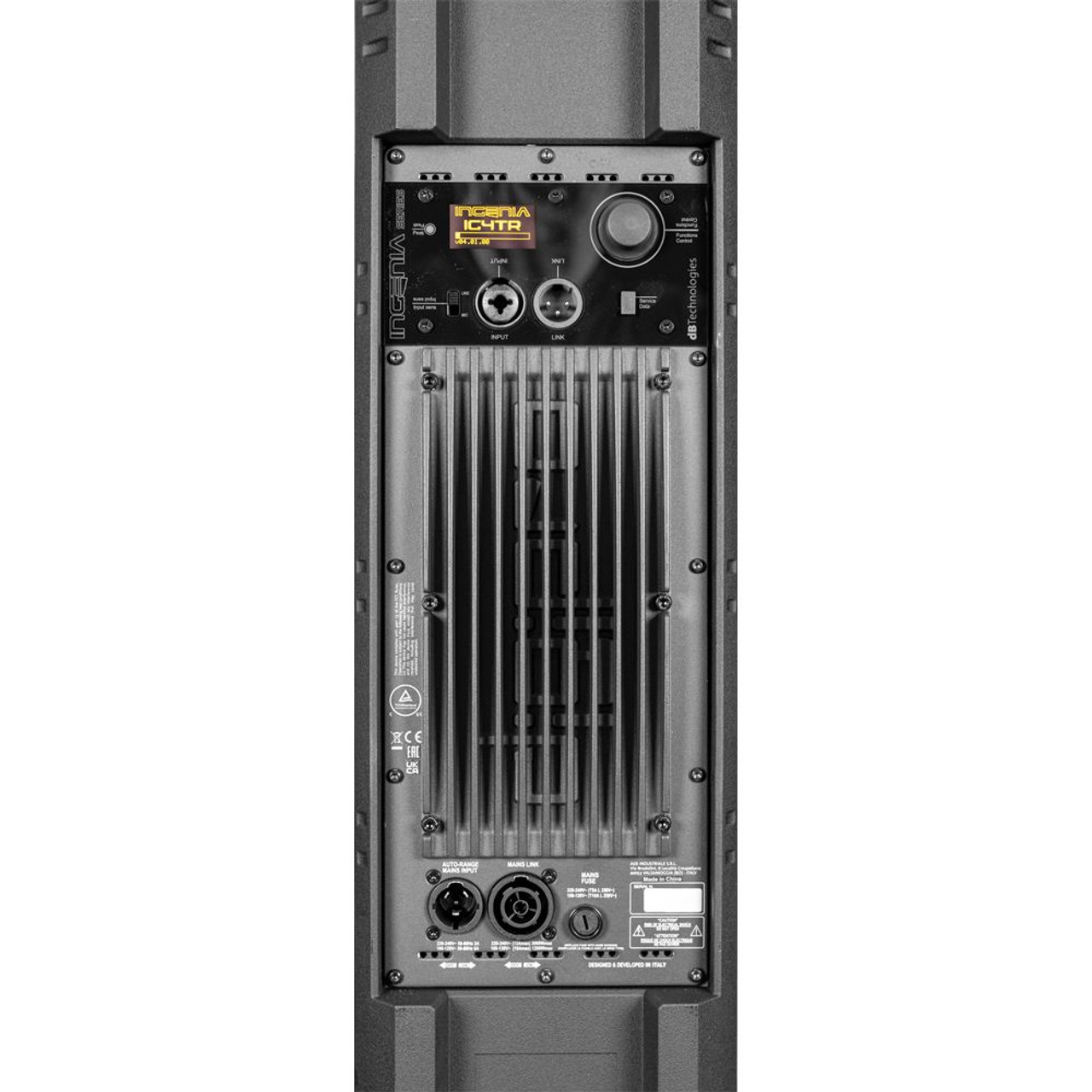

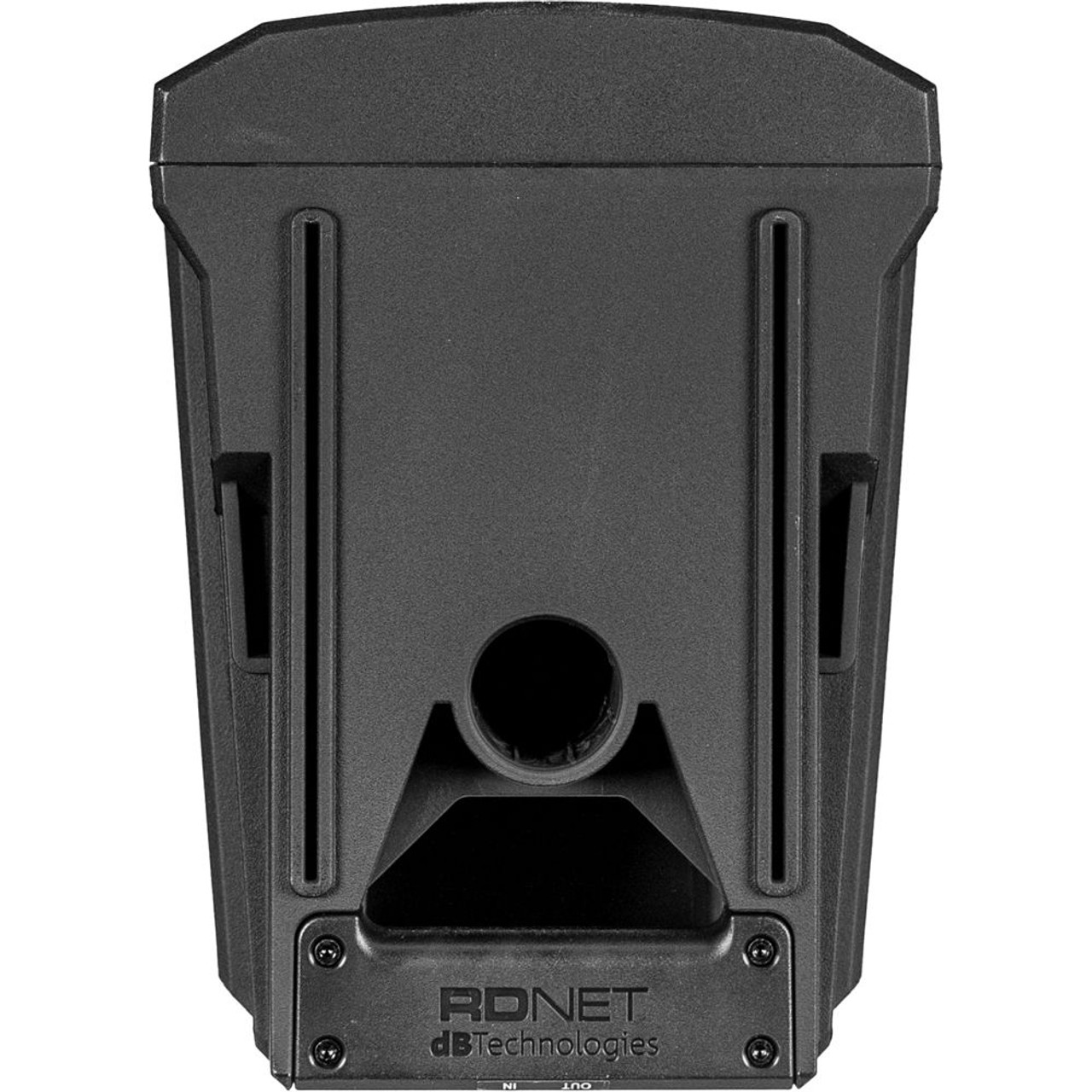

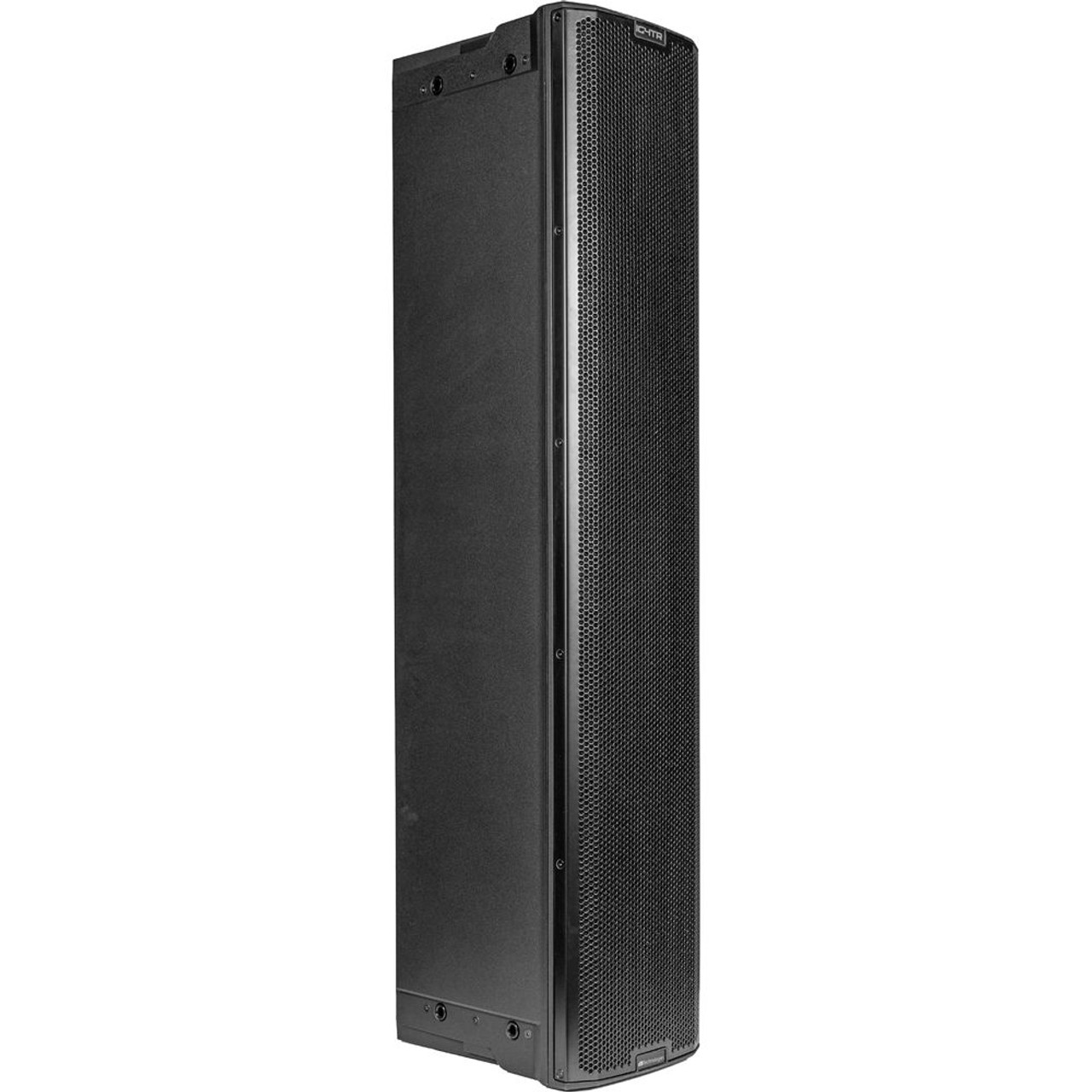

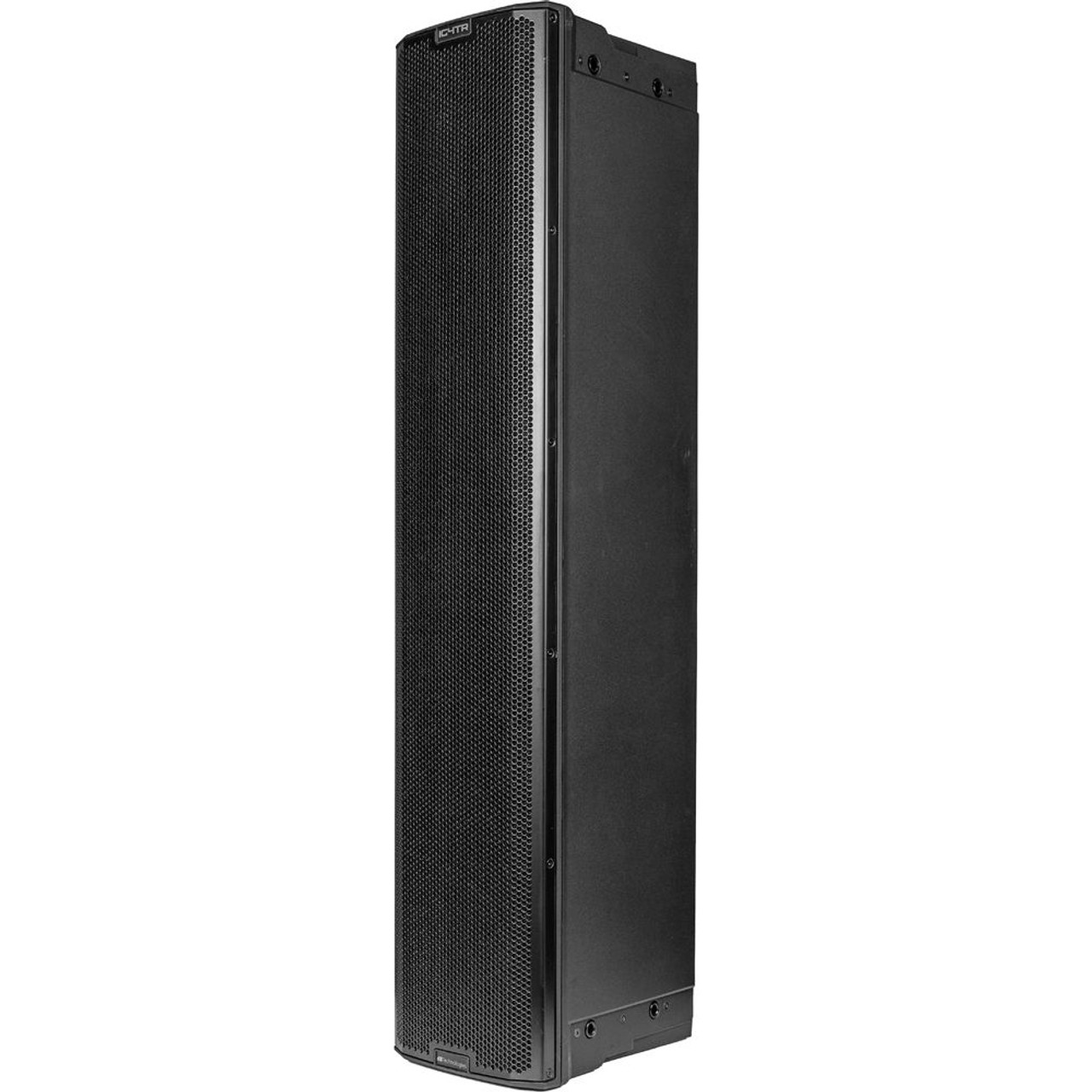

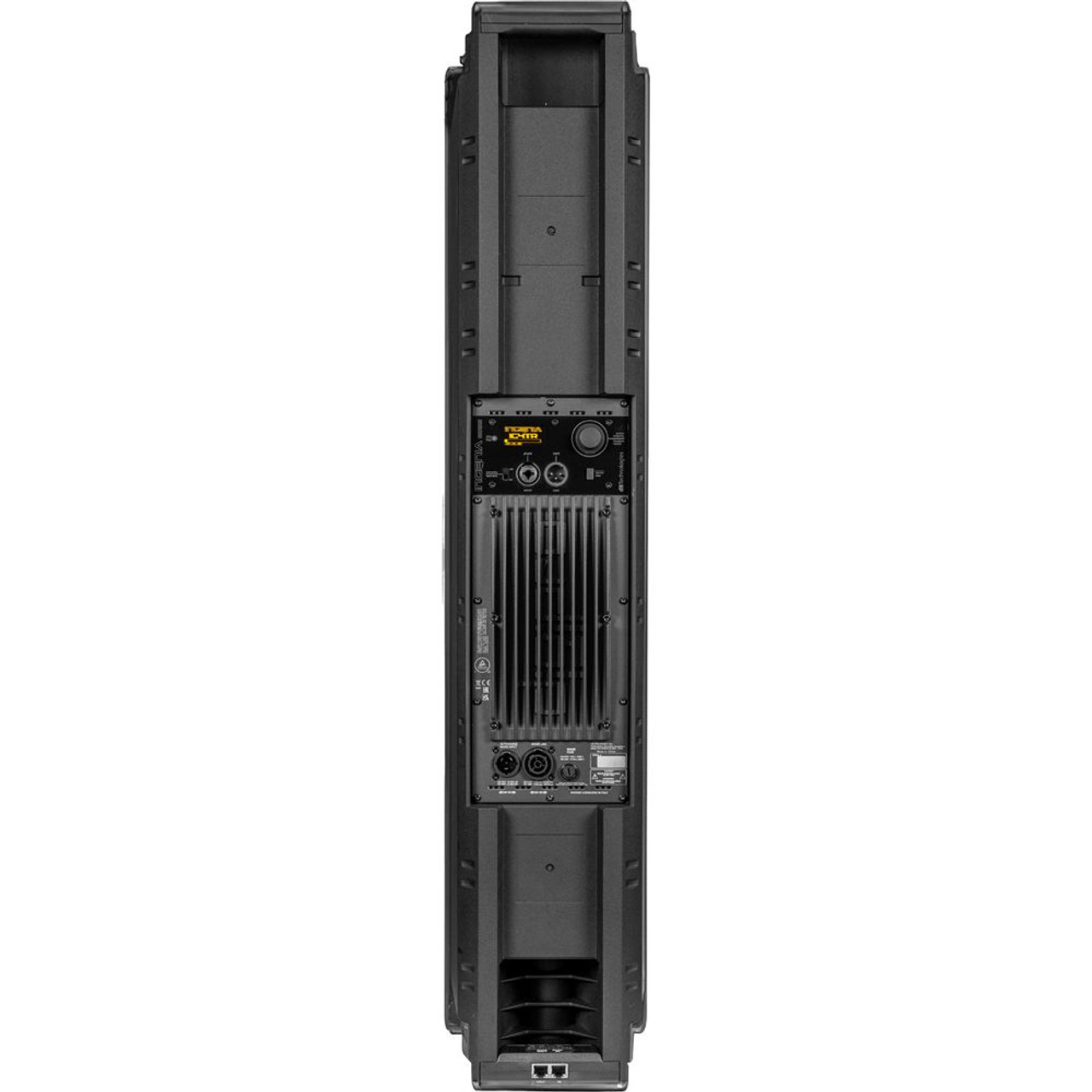

dBTechnologies IG4TR 1800W 4 x 6.5-inch Powered 2-Way Portable Loudspeaker

Overview

The DB Technologies IG4TR is a powerful, high-performance loudspeaker from the INGENIA series, combining cutting-edge acoustic design, advanced DSP processing, and a highly versatile modular setup. Equipped with four premium 6.5-inch low-frequency transducers and a 1.4-inch neodymium compression driver, the IG4TR delivers an impressive 1800W peak power and 900W RMS power output, making it an ideal choice for a wide range of live sound applications. RDNet-EH remote-control capability is standard, allowing users to control the speaker via RDNet protocol and Aurora Net software for flexible integration into larger systems.

The IG4TR features an innovative horn design that provides horizontal symmetry and vertical asymmetry, ensuring wide, constant horizontal coverage and controlled vertical dispersion. The vertical coverage is narrow at the top and wider at the bottom, optimizing sound delivery across the entire audience. This design prevents interference when coupling two IG4TR speakers, as the high frequencies add up seamlessly. Additionally, the digital steering function allows for precise adjustment of the speaker's dispersion without physically moving the speaker, providing optimal sound coverage and intelligibility.

Designed for easy operation and maximum flexibility, the IG4TR includes an intuitive OLED display with a rotative knob, enabling users to manage mix, coverage steering, EQ settings, and input devices. The self-rotating display ensures easy visibility from various angles, while the Element Position Detection (EPD) system automatically configures the speaker when two units are coupled, ensuring acoustic coherence and optimal coverage. The IG4TR can be easily coupled with other INGENIA speakers using the LP-IG accessory, and it can be flown in a vertical array using the Ingenia DRK-IG flybar, offering increased versatility for large-scale events or installations.

Features

• 1800W peak power and 900W RMS for high-performance audio in a compact, portable design
• 4 x 6.5-inch neodymium low-frequency transducers for powerful, deep bass
• 1.4-inch neodymium compression driver with a 3-inch voice coil for detailed, clear high frequencies
• 110° x 90° horizontal and vertical coverage for even sound dispersion across large spaces
• RDNet-EH remote-control capability for seamless integration into larger systems
• Element Position Detection (EPD) for automatic system configuration when coupling two speakers
• FIR Linear Phase DSP processing for precise sound management and high-quality audio
• Intuitive OLED display with rotative knob for easy control of system functions, including mix, coverage, and EQ settings
• Self-rotating display for flexible orientation during setup and operation
• Multiple input options, including XLR/jack combo, RJ45 Link (RDNet), and USB for data service
• Flyable design and pole mount for versatile installation and setup options
• Durable polypropylene housing with reinforced construction for maximum durability
• Handles on top and bottom for easy transport and setup

Specifications

Acoustical Data

• Frequency Response [-10dB]: 67 - 20,000 Hz
• Frequency Response [-6dB]: 72 - 18,700 Hz
• Max SPL: 132 dB
• HF: 1.4-inch
• HF Voice Coil: 3-inch
• Directivity (HxV): 110° x 90° (+20°/- 70°)
• HF Type: Neodymium compression driver
• Horn: Vertical asymmetric
• Crossover Frequency: 1000 Hz
• LF: 4 x 6.5-inch
• LF Voice Coil: 1.5-inch
• LF Type: Neodymium

Amplifier

• Amp Technology: Digipro G3
• Amp Class: Class-D
• Peak Power: 1800 W
• RMS Power: 900 W
• User Interface: OLED display + rotative knob w/switch
• Self-rotating display: Yes
• Positioning: EPD (Element Position Detection)
• Display Mirroring: Yes

Processor

• Controller: DSP 56 bit
• AD/DA Converter: 24bit/48kHz
• System Presets: Factory presets + User defined
• Limiter: Dual Active Peak, RMS, Thermal
• DSP Processing: FIR Linear Phase

Input

• Signal Input: 1 x XLR/jack combo, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
• Signal Out: 1 x XLR balanced, 1 x RJ45 Link (RDNet)
• USB connector: Yes - mini USB

Mechanics

• Housing: Polypropylene PP reinforced
• Grille: FULL /Invisible screws
• Flyable: Yes
• Handles: 1x on top / 1x on bottom
• Pole Mount: Yes
• Width: 7.68 inches
• Height: 37.64 inches
• Depth: 10.67 inches
• Weight: 40 lbs
