Product Description

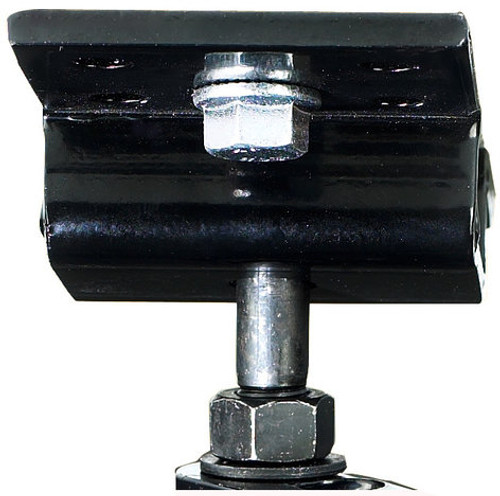

Community VB-VST Ceiling Bracket for 12-inch and 15-inch VERIS 2 Speakers
The VB-VST mounting kit is specifically designed for the Community VERIS 2 Series to provide a high degree of safety for supporting the cabinet and is highly recommended for mounting these loudspeakers. It has been engineered to fit the four largest enclosures in the VERIS 2 Series (V2-12, V2-15, V2-32 and V2-35). Mounting methods other than those recommended should be carefully considered so that undue strain and possible failure of the mounting points does not occur.
Each VB-VST allows precise installation of a single VERIS 2 full-range loudspeaker from the ceiling. This bracket kit is designed to accommodate a modest vertical downward aiming angle (approximately 5° to 25°) and 360° of horizontal panning.
Once fitted to any of the large VERIS 2 enclosures, the rotational bracket can be positioned at any point along the cabinet bracket to choose the appropriate cabinet vertical down-tilt angle (see chart below for tilt ranges for each cabinet), allowing the cabinet to be flown and aimed depending on the requirements of the installation environment and application.
The VB-VST Versatilt mounting kit is available in black or white finishes to match the color of the enclosure. Bracket parts are made of black or white powder-coated steel.
The hardware used for the attachment must be load-rated for the intended purpose. Also ensure that the structure you are attaching to is capable of supporting the loudspeaker and bracket assembly. This must include any torque load that may be applied to the structure as a result of the loudspeaker position and aiming angle. Each enclosure rigging point is rated at 100 lbs (45.4 kg) working load limit (WLL) with a 10:1 safety ratio.
