Product Description
Community R2-MAX-CTO 12-inch 3-Way Full-Range Speaker - Grey - Configured-To-Order
The family of R-MAX loudspeakers delivers outstanding musical performance. Housed in the same size enclosures as Community’s flagship R2 models, the R2-MAX models feature powerful 1.4-inch exit HF drivers, high performing mid-range drivers, and 600W neodymium woofers, delivering well behaved coverage patterns, exceptional intelligibility and flat frequency response. The R2-52MAX adds 50° x 20° long range coverage with high-power 1-inch exit HF and dual M200HP mid-range drivers. While providing the outstanding dynamic range and projection expected from R SERIES, R2-MAX loudspeakers offer listeners a superior musical experience with higher output than the standard R2.
Features
- Modern stadium loudspeaker, designed to meet the needs of today's sporting venues for superb musicality, excellent speech intelligibility and very high output
- Signal aligned passive MF/HF horn coaxially mounted in front of electronically signal aligned LF drivers
- Large format 1.4" exit HF, high output M200HP, and premium high output LF drivers
- High sensitivity and very high output (134 dB max), with flat extended frequency response
Specs
- Finish: Hand-laminated multilayer fiberglass with paintable, light grey gel coat and dual-layer powder-coated steel grille
- Nominal Beamwidth (H x V): -52 (50° x 20°), -64 (60° x 40°), -66 (60° x 60°), -94 (90° x 40°)
- Continuous Max Output: LF - 134 dB (140 dB Peak); MF/HF - 133 dB (139 dB peak)
- Power Handling: LF - 1200W continuous @ 8 ohms; MF/HF - 350W continuous @ 8 ohms
- Sensitivity (1W/1m): LF: 103 dB; MF/HF: 109 dB
- Operating Range: 71Hz – 22 kHz
- Transducers (R2-64/66/94MAX):LF-2 x 12” weather-resistant cones; MF-1 x 2” exit M200HP compression driver; HF-1 x 1.4” exit compression driver; (R2-52MAX):LF-2 x 12” weather-resistant cones; MF-2 x 2” exit M200HP comp. driver; HF-1 x 1” exit comp. driver

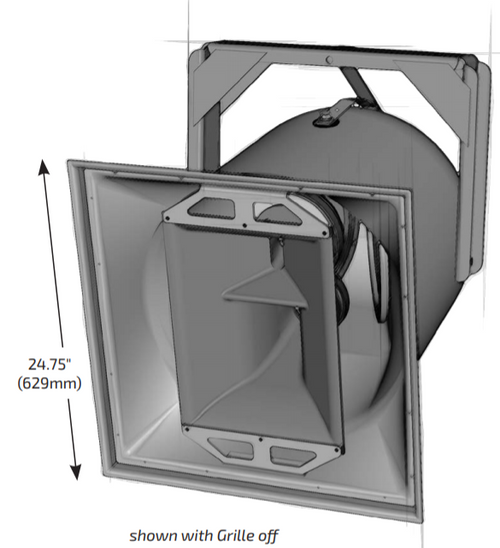

- Dimensions (H x W x D): 24.75" x 24.75 " x 30.75 " (629 x 629 x 781 mm)
