Product Description

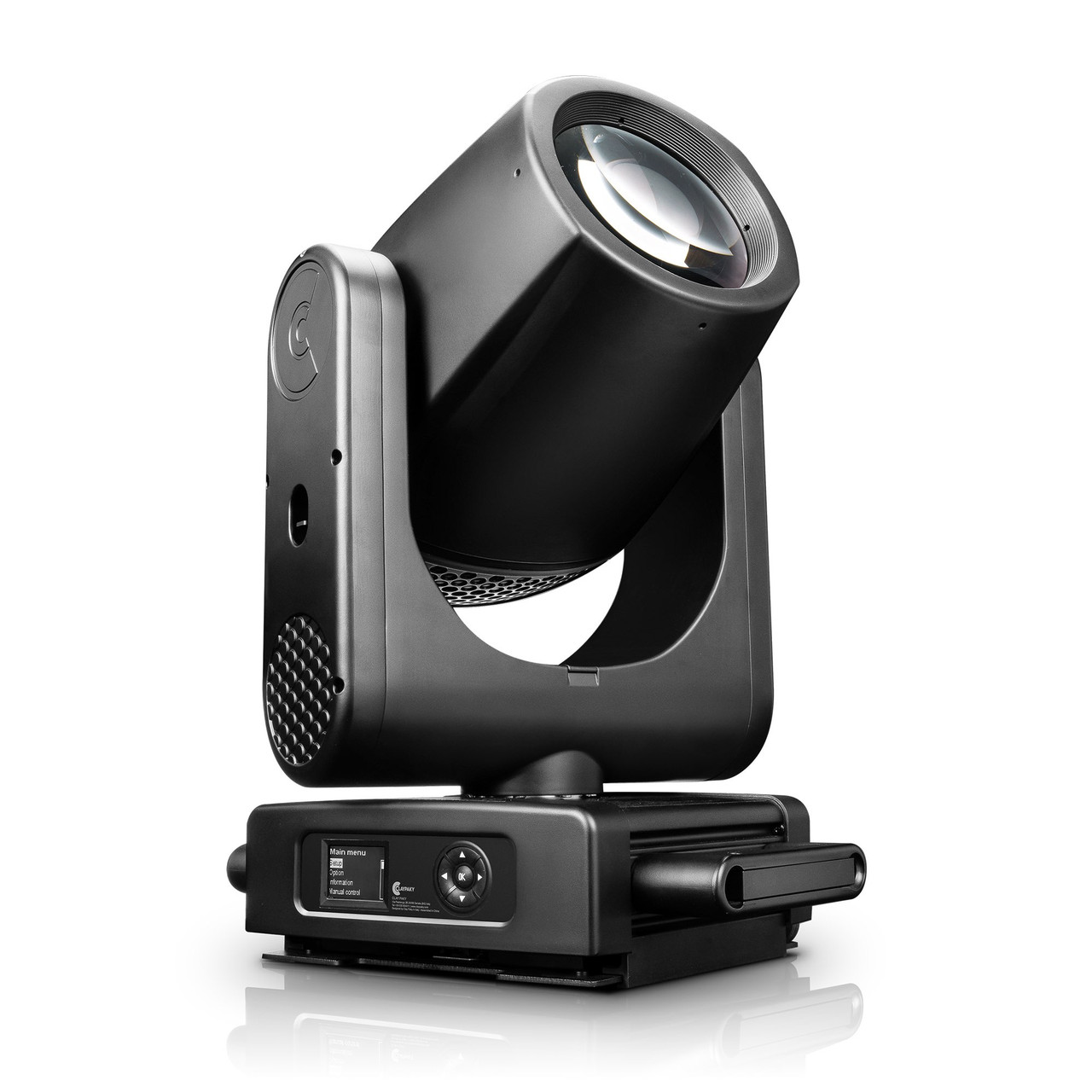

Claypaky CD3040E41100F Ultimo Sharpy IP66-Rated Beam Moving Head

Overview

Meet the new benchmark in compact beam lighting: Ultimo Sharpy.
Ultimo Sharpy is more than just a comeback — it’s a leap forward. Building on the legacy of the original Sharpy, this next-generation IP66-rated beam moving head is brighter, faster, and tougher than ever. At the heart of Ultimo Sharpy lies a custom 250W OSRAM short-arc High-Intensity Discharge (HID) lamp, designed for maximum output and sustainability.
Engineered for top-tier performance in any environment — indoor or outdoor space, a live event or a broadcast — Ultimo Sharpy delivers razor-sharp beams, ultra-smooth movement, and an unbeatable power-to-size ratio.

Ultimo Sharpy takes everything you loved about the original and levels it up with cutting-edge tech, powerful output, and weatherproof durability. Whether you’re lighting a stadium, filming a show, or touring the world, this is your go-to fixture for stunning looks, smooth performance, and long-term value.

This iconic product launch is just the beginning. Claypaky is gearing up to celebrate its 50th anniversary—a milestone that blends decades of lighting expertise, passion, and innovation. What better way to honor our legacy than by pushing boundaries once again? Get ready for more surprises, more creativity, and more light.

Features

• Compact Size, Massive Output: With an output of 100,000 lux at 20 meters (9,300+ fc at 65 feet), Ultimo Sharpy packs the punch of a much larger fixture while retaining its iconic compact shape. Its optical system ensures a crystal-clear, halo-free beam that can cut through any venue indoors or outdoors.
• LOW-NOISE Mode: You asked for a quieter Ultimo Sharpy, and we listened. This new operating mode delivers quieter, more controlled operation to the iconic Ultimo Sharpy, reducing sound levels by 7 dB while maintaining 90% of the original light output.
• Built for the Elements: Rain? Dust? No problem! Thanks to its IP66-rated housing, Ultimo Sharpy can withstand any weather or environment. Its robust yet lightweight design and ergonomic side handles make it easy to transport, rig, and maintain, making it ideal for tours, festivals, and permanent outdoor installations.
• Brilliant Colors and Beam Versatility: True CMY colour mixing gives you full creative freedom, from rich, saturated hues to soft pastels, with seamless transitions. A built-in frost filter instantly transforms tight beams into smooth washes, while dual rotating prisms and gobos enable you to create layered, dynamic aerial effects with real visual depth.
• Lightning-Fast Movement: Designed for precision and speed, Ultimo Sharpy features ultra-fast tilt and infinite pan rotation for expressive, uninterrupted motion. Whether it’s a time-coded show or a live performance, the motor control responds instantly and fluidly. And with Sharpy Emulation Mode, it can be integrated into your existing setup without reprogramming.
• Eco-Smart Performance: The OSRAM lamp lasts up to 6,000 hours, reducing replacement costs and downtime. Smart dimming technology protects the lamp during low-intensity cues. Combined with recyclable components and a lower mercury footprint, Ultimo Sharpy is a smarter, greener beam fixture.
• Perfect Fades, Zero Flicker: High-resolution electronic dimming provides smooth, cinematic fades and flicker-free output for live shows, broadcasts, and films. Whether you want to make big, dramatic changes or fine-tune subtle transitions, you can enjoy flawless control every time.
• Ready for the Open Sea: Ultimo Sharpy is available with Marine Shield, Claypaky’s specialized treatment designed for cruise ships and marine installations. Its IP66-rated housing already protects against rain, dust, and harsh weather. Marine Shield takes it further, adding targeted resistance to salt-laden air and the corrosive effects of the maritime environment. The result: Ultimo Sharpy’s signature razor-sharp beam and high-speed performance stay fully intact on board, with reduced downtime and lower maintenance costs over time, even in the most demanding marine conditions.

Specifications

Light Source

• Source type: Short-arc High Intensity Discharge (HID) lamp
• Colour Temperature: 7200K
• CRI: Up to 74
• Lamp life expectancy: 6000 hrs

• Personalities: 3 personalities with 27 / 16 / 27 control channels
• Protocols: DMX, Art-Net, RDM, sACN, CRMX (Lumen Radio)
• Connectors:
  • Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN/OUT
• Power connector: PowerCon True1 IN/OUT
• Web Server: Built In
• CloudIO: Fully compatible

Dynamic Effects

• Colours:
  • Fixed color wheel with 14 dichroic colors - True CMY color mixing system
• Gobos:
  • 1 Static Gobo Wheel with 17 gobos
• Frost:
  • 1 Linear heavy frost 10° for wash effect
• Rotating Effects:
  • 1 8 facet prism with rotation in both directions at variable speed
  • 1 6 facet linear prism with rotation in both directions at variable speed
• Movement:
  • Tilt: 275°
  • Pan: infinite rotation
  • Accuracy: Resolution ± 0.46° (±0° 27' 36")
  • Range: 0,92° (0° 55' 12")
  • Absolute position
  • Mechanical Pan/Tilt lock for safe transportation and maintenance
• Dimmer/Shutter:
  • High resolution mechaical dimmer - 24 bit, 5 curves
  • Ultra-smooth electronic dimmer with high resolution fades
• Special feature:
  • Sharpy emulation mode for plug-and-play legacy compatibility

Hardware and Software

• Long life self-charging battery
• Display Graphic LCD backlit b/w display
• Firmware upload from another fixture
• Firmware upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM

Housing

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP66 protection rate
• Marine grade protection

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

Electrical

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC
• Max Power consumption: 460W (4.6A)

Thermal Specification

• Max ambient temperature: 45°C (113°F)
• Min ambient temperature: -20°C (-4°F)
• Max temperature of the external surface: 90°C (194°F)
• Total heat dissipation: 1600 BTU/hr ±10% / 1700 kJ/hr ±10%

Safety Specs

• Minimum distance of illuminated objects 13 meters (42' 8”)
• Minimum distance from flammable materials 0.2 meters (8”)
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans
• F6.3A 250V 5x20 mm – External mains fuse
• 5A 250V 5x20 mm – External mains

Compliance

• CE Marking (in conformity to the following):
  • 2104/53/EU Radio Equipment Directive (RED)
  • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
• UKCA: conforms to UK Regulations:
  • S.I. 2017 N. 1206
  • S.I. 2012 N. 3032
  • S.I. 2021 N. 745
• cMETus Listed:
  • UL 1573:2003
  • CSA C22.2 N. 166: 2015
