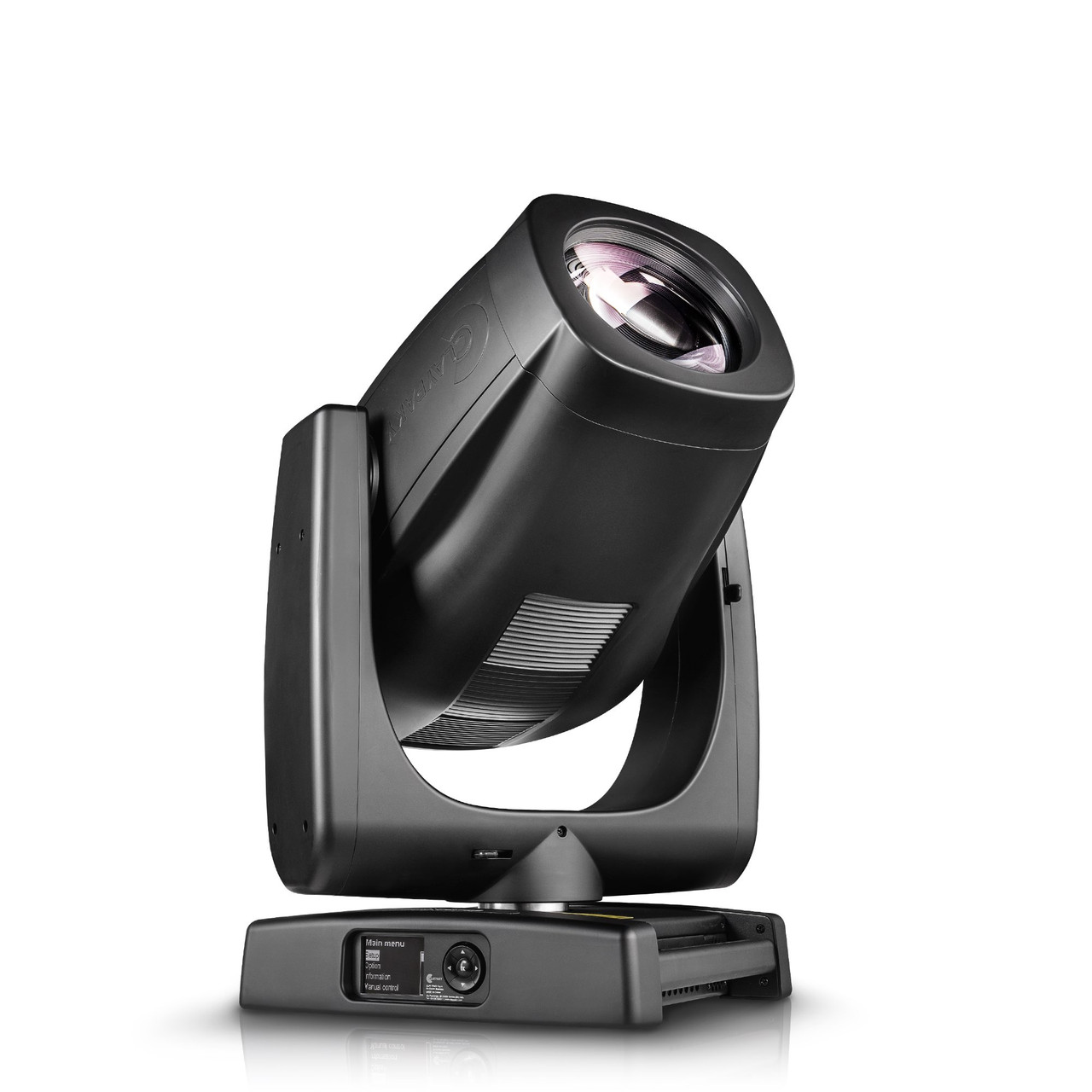

Claypaky CD3003 Sharpy X-Frame Multifunction Hybrid Luminaire

Overview

Sharpy X Frame is a groundbreaking multifunction hybrid luminaire that redefines what’s possible in lighting. It combines cutting-edge technology, including the innovative four-focal plane shutter system, with the best features of the Sharpy line. This powerful fixture is housed in a lightweight, compact design, to meet the evolving needs of modern lighting professionals, delivering exceptional performance in a versatile and portable package, with a big punch.

Features

• Unmatched Brightness and Color Quality: Sharpy X Frame features a powerful 550-Watt arc lamp for extreme brightness and vivid, uniform colors, including an unmatched deep red.
• One Fixture, Endless Possibilities: A truly hybrid, multifunction luminaire – whether designing intricate beam effects, precise spot lighting, or smooth washes, the Sharpy X Frame gives you the flexibility to achieve perfect lighting for any scenario.
• Big Impact, Small Package: It combines the power of much larger luminaires in a lightweight, compact design without sacrificing any features. Packed with advanced capabilities like a rotating gobo wheel with eight gobos, a static gobo wheel, four- and eight-facet rotating prisms, linear frost, and an innovative color system with CMY, CTO, and a separate color wheel, it’s designed to maximize your creative options.
• Precision Framing at Your Fingertips: The integrated four-focal plane shutter system allows for precise beam shaping and framing, setting new standards for creative control and making it possible to give life to “curtain effects” to introduce a performance, transition between scenes, or create a dynamic visual element during a live show.
• Achieve Stunning Visual Effects: Sharpy X Frame features a zoom range from 3° to 52° in spot mode and 2° to 29° in beam mode, delivering stunning effects across all settings. The 160mm front lens and Claypaky’s renowned optics ensure sharp images and perfectly collimated beams every time.

Specifications

Light Source Type

• Philips 25R 550W lamp
• CRI: 80+
• Colour Temperature: 8000K
• Lamp life expectancy: 1500 hrs
  *It may vary depending on various factors, as type of use and environment

Photometric Data

• Zoom range: 3° to 52° (Spot mode) – 2° to 29° (Beam mode)
• 18800 Lumen Output (Integrating Sphere)
• Front lens diameter: 160mm
• High efficiency optical system

Noise Level

• Auto fan mode: 49.3 dBA

Control and Connections

• Personalities: Single mode with 43 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1
• Built In Web Server

Dynamic Effects

• Colors:
  • Linear CMY colour mixing (brilliant and lighter Magenta in the Sharpy X Frame FD model)
  • Linear CTO
  • Fixed color wheel with 14 dichroic colorss
• Gobos:
  • 1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
  • Rotating gobo dimensions:
  • Ext diam. 19 mm
  • Image diam. 13.5 mm
  • Thickness 1.1mm
  • 1 Static Gobo Wheel with 18 gobos
• Framing system:
  • 4 blades with +/- 60° rotation of the full system
  • “Total Curtain" effect allowing the full blackout with each single blade
  • Built In macros
• Frost:
  • Linear heavy frost 5° for wash effect Sharpy X Frame
  • Linear light frost 2° for wash effect Sharpy X Frame FD
• Rotating Effects
  • Aluminum animation wheel with continuous rotation in both direction at variable speed
  • 2 prisms (4 and 8 facet) with rotation in both direction at variable speed
• Iris:
  • Motorized with variable pulse and random effects
• Movement:
  • Tilt: 270° - 16bit
  • Pan: 540° - 16bit
  • Accuracy: Resolution ± 0.27° (Range 0.54°)
  • Automatic repositioning
  • Fast/Standard speed selectable by Function channel
  • Mechanical Pan/Tilt lock for safe transportation and maintenance
• Beam:
  • Motorized Zoom and Focus
• Dimmer/Shutter:

  • High resolution dimmer 16 bit
  • Shutter and Strobe effect

Hardware and Software

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access throug

Housing

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

Working Position

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

Electrical

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC
• Max Power consumption: 750VA

Thermal Specification

• Max ambient temperature 45°C (113°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%

Safety Specs

• Minimum distance of illuminated objects 8 meters (26’ 3”)
• Minimum distance from flammable materials 0.2 meters (8”)
• Fuse T10A – 250V
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans

Compliance

• CE: conforms to the European Directives
• UKCA: conforms to UK Regulations
• EAC: conforms to EurAseC Regulations
• cMETus Listed

Packaging

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (2 positions)

Weight - Size

• 28 Kg (61.7 lbs)
• 306x350mm (base dimension) – 668 with vertical head (h)
• Distance between two fixtures 505mm
