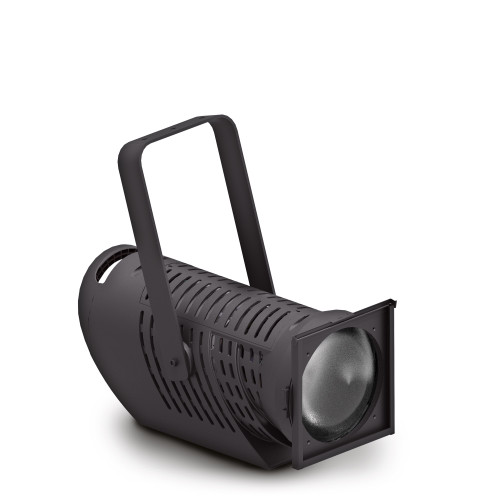

Its CRI remains stable at values of at least 97 thanks to a modern 6-color LED system and advanced software.
The Orkis’s performance really comes into its own in color production: the color range obtainable is very wide, and every shade can truly be achieved.
It faithfully reproduces the behaviour of a halogen light, making it compatible with various different light sources.
The Orkis is also an extraordinary variable white LED unit, from 8000K to 2500K: the white light it produces is extremely pure since it combines six colors, and the CRI is unaltered when the color temperature changes.
Its flexibility of use is remarkable: the fresnel version produces a flood light up to an angle of 87° (field angle), or a spot light with an angle of 15° (beam angle). Variation is continuous, smooth and linear within this range.
Alternatively, the Orkis can be modified into a Pebble luminaire, by changing the lens with the related accessory or vice-versa.
A W-DMX wireless control version of Orkis Fresnel is available.
Modern, technologically advanced, versatile and extremely quiet, the Orkis can deliver high quality light in many applications: a complete solution for your rig.

Features

• Light Source

  6-Color LED (Red, Green, Blue, Amber, Cyan, Lime)
• Zoom range

  Fresnel lens: - Beam angle: 15° to 54° - Field angle: 22° to 87° Pebble lens: - Beam angle: 15° to 56° - Field angle: 26° to 80°
• Effects

  CRI: 97 at any color temperature; Color temperature range: 2500K - 8000K; Motorized zoom; Local control: Zoom, Intensity, CTO, Green-Magenta adjustment; 16-bit ultra-smooth dimming ; IHM: color touch-screen & 3 push encoders ;Color control modes: Hue Saturation, RGB, CMY

Specifications

Light Source Type

• 6-Color LED (Red, Green, Blue, Amber, Cyan, Lime)
• CRI: 97 at any color temperature
• Color temperature range: 2500K - 8000K
• Motorized zoom
• Fresnel lens (standard):
• Beam angle: 15° to 54°
• Field angle: 22° to 87°
• PC lens (optional):
• Beam angle: 14.5° to 56°
• Field angle: 26° to 80°
• Lamp life expectancy L70: 57000 hrs
  *It may vary depending on various factors, as type of use and environment

Photometric Data

• Fresnel narrow beam @ 5m = 2375 Lux
• Fresnel wide beam @ 5m = 305 Lux
• PC narrow beam @ 5m = 1668 Lux
• PC wide beam @ 5m = 280 Lux
• Front lens diameter: 160mm
• High efficiency optical system

Noise Level

• Noise level (standard mode): 24dB(A) @ 1 m

Control and Connections

• Personalities: Four mode with 15/15/28/28 control channels
• Color control modes: Hue Saturation, RGB, CMY
• Control modes: DMX 512, RDM, ArtNET, sACN
• W-DMX wireless control version available
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1
• Control modes: DMX 512, RDM, ArtNET,sACN
• Local control: Zoom, Intensity, CTO, Green-Magenta adjustment
• Color control modes: Hue Saturation, RGB, CMY
• Built In Web Server

Dynamic Effects

• Tungsten mode, to replicate the behavior of a tungsten lamp.
• Tint correction: +/- green/magenta adjustments.
• Motorized zoom
• 16-bit ultra-smooth dimming, with different dimming curves available.
• Wide color gamut and extended spectrum, including deep blue and deep red.
• Smooth color transition through different time, cross-fade and path options, and a gamma correction system.
• Color control: Hue Saturation Luminosity (HSL), CMY, RGB and RAWmodes fully exploit the potential of the six-color system.
• 80 Digital filters (Color macros) which reproduce the spectrum of gel filters with tungsten bulbs.
• High color stability and accuracy, also in tungsten mode, thanks to a high resolution driver.
• Fixture to fixture color repeatability, thanks to tight wavelength binning selection and 100% fixture calibration.
• Flicker-free, thanks to PWM frequency adjustment from 1 KHz to 50 KHz (10 Hz steps).

Hardware and Software

• Long life self-charging battery
• IHM: color touch-screen & 3 push encoders
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM

Housing

• Aluminium & metal die-cast housing
• Color: black
• IP20 protection rate

Working Position

• Working position: Tilt angle +/-360°

Electrical

• Power consumption: 300VA at 230V 50 HZ
• Voltage range: 100-240 V
• Frequency: 50/60 Hz

Thermal Specification

• Ambient temperature (min max): -20 °C/+40° C
• Maximum surface temperature: 90°

Compliance

• CE marking: In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
• UKCA: conforms to UK legislation
•  cETLus Listed

Packaging

• Carton box + Polystyrene
• Carton box + Foam shell

Weight - Size

• 11 Kg (24.2 lbs)

Accessories

• Metal filter frame (inclueded)
• Neutrik PowerCON TRUE1 1.5 m power cable, bare ends (inclueded)
• 8 leaves barndoors 215 x 215 mm (optional)
• PC lens (optional)
