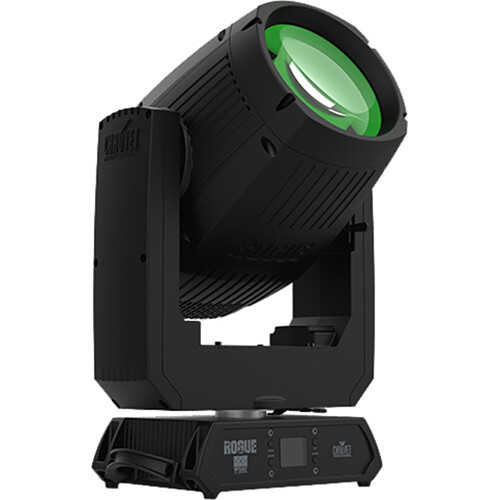

CHAUVET PROFESSIONAL Rogue Outcast 3 Spot Outdoor-Ready IP65 Moving Head
Overview
Lighting designers looking for an outdoor-ready (IP65) spot moving head will be impressed with the CHAUVET PROFESSIONAL Rogue Outcast 3 Spot, a rugged luminaire that delivers the color possibilities of dual color wheels, the dynamic morphing effects of dual gobo wheels, the beauty of smooth 16-bit fades, and a wide zoom range that adds flexibility to achieving desired coverage, well suited for theatrical, house of worship, touring, small-to-medium festivals, and event applications. The Rogue Outcast 3 Spot is powered by a single 300W cool-white LED that generates a bright beam of up to 56,916 lux at 16.4'.
The unit features dual color wheels with seven colors each plus white that are individually controllable for solid and split hues. The wheel offers continuous scroll at variable speeds. There is also a motorized 5-facet prism as well as motorized frost effects for even light distribution. There are two gobo wheels that offer even more creative options for massive visual impact (Gobo 1: 7 metal, interchangeable; Gobo 2: 8 metal, fixed). The unit can be controlled via DMX or RDM and features two personalities (20 or 25 channels). The Rogue Outcast 3 Spot ships with two Omega brackets and a Seetronic Powerkon IP65 power cord.
Features
- IP65-rated LED spot with 2 color wheels, static and rotating gobo wheels, motorized zoom, iris, 5-facet prism, encased in a lightweight aluminum and magnesium alloy
- Zoom range of 4.9° to 38.7° to easily cover stages and surfaces from a distance
- Perfect gobo morphing between gobo wheels
- Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
- Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
- Iris, 5-facet prism, and frost for beam control
- Beautiful 16-bit LED dimming for ultimate fade control
- IP65-rated power input/output connections for power linking
- 5-pin DMX input/output connections
- RDM enabled for remote addressing and troubleshooting
- Selectable PWM settings to maintain flicker free operation on camera
- Simple and complex DMX channel profiles for programming versatility
- USB-C port for uploading software
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540, 360, 180° pan / 270, 180, 90° tilt
- Colors (1): 7 + white, split colors, continuous scroll at variable speeds
- Colors (2): 7 + white, split colors, continuous scroll at variable speeds
- Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
- Motorized dimmer, shutter/strobe, zoom, focus, and frost
- 5-facet prism, motorized, rotating
Specifications
Fixture Type | Moving Head |
Light Source | 1 x White LED - 300 W / 5 |
Light Source Life Expectancy | 50,000 Hours |
Colors | Cool White Yellow Light Blue Green Red Magenta Dark Blue CTO (Color Temperature Orange) Ultraviolet Orange Pink |
Photometrics | 4.9°: 5287.5 fc / 56,916 Lux at 16.4' / 5 m 38.7°: 674.5 fc / 7260 Lux at 16.4' / 5 m |
Color Temperature | 7044K |
Lumen Output | 14,898 Lumens (Output) 20,000 Lumens (Source) |
Beam Angle | 4.9 to 33.7° |
Field Angle | 5.5 to 38° |
Shutter / Strobe | Electronic |
Iris | Yes, Mechanical |
Focus | Motorized |
Zoom Adjustment | Motorized, 4.9 to 38.7° |
Dimming | 16-Bit Electronic, 0 to 100% |
Prism | 5-Facet Linear (Rotating) |
Operating Modes | Automatic, Color Change, Color Dimmer, DMX, Move-in-Black, Static Color |
Macros / Programs | None |
Effects | Light Beams Strobe Move-in-Black Shapes Color Scroll Color Split Color Strobe |
Strobe Rate | 0 to 20 Hz |
Gobos | 7 x Removable Metal Gobo 8 x Fixed Metal Gobo |
Gobo Size | Metal Gobo: Outer Diameter: 1" / 25.5 mm Max Image Size: 0.6" / 14.8 mm Max Thickness: 0" / 0.6 mm Metal Gobo: Outer Diameter: 0.9" / 24 mm Max Image Size: 0.6" / 16 mm Max Thickness: 0" / 0.6 mm |
Tilt Ranges | 270° / 180° / 90° |
Pan Ranges | 540° / 360° / 180° |
Pan/Tilt Inversion | Yes |
Control Protocols | DMX512, RDM |
DMX Channel Modes | 2 Mode(s): 20 / 25-Channel |
Display / Controls | OLED / 4-Button |
Remote Control | None |
Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output 1 x USB-C Service Input |
AC Input Power | 100 to 240 VAC, 50/60 Hz |
AC Power Connector | Input: 1 x Seetronic IP-Rated Output: 1 x Seetronic IP-Rated Cord Length: 5' / 1.5 m |
Power / Current Consumption | 120 VAC, 60 Hz: 506 W / 4.24 A 208 VAC, 60 Hz: 493 W / 2.43 A 230 VAC, 50 Hz: 494 W / 2.19 A |
Power Linking | 3 Units at 120 VAC 5 Units at 208 VAC 6 Units at 230 VAC Total Current: 12 A |
IP Rating | IP65 |
Mounting | Omega Bracket |
Included Accessories | 1 x Power Cable |
Duty Cycle | None |
Exterior Color | Black |
Certifications | CE, MET, UKCA *as per Manufacturer |
Dimensions | 25.16 x 14.41 x 9.61" / 63.91 x 36.6 x 24.41 cm |
Weight | 51 lb / 23.1 kg |
