Product Description

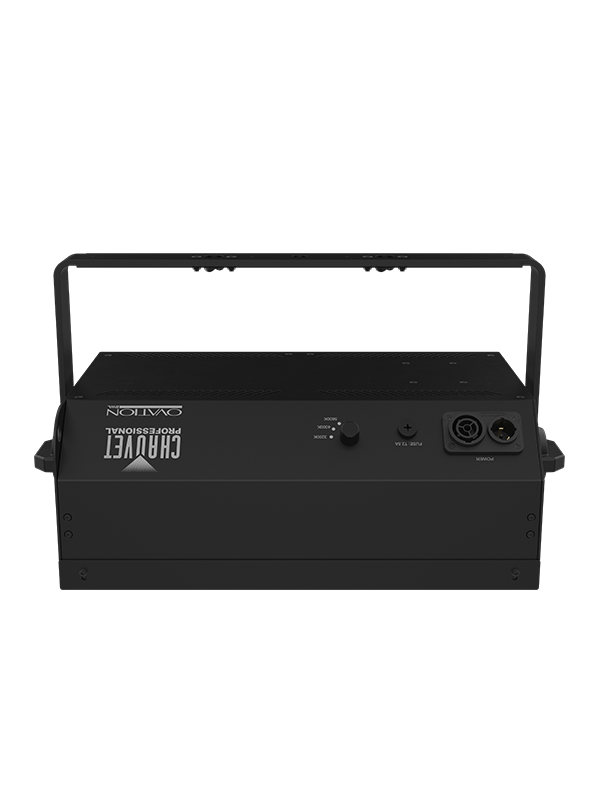

Chauvet Pro OVATION2WL Ovation 2wl Utility Light
Overview
Useful for times when DMX lighting isn’t needed, this effective utility light is powered by direct line voltage and can be dimmed via off-the-shelf phase-cut or triac dimmers. Projecting a soft flood light that minimizes shadows, Ovation 2WL offers selectable 3200K, 4000K, and 5600K color temperatures that provide wide-spectrum, high-CRI lighting.
Features
- Effective utility light for use when DMX lighting isn’t needed.
- Three selectable color temperatures (3200, 4000, 5600K) providing wide-spectrum, high-CRI lighting
- Soft, flood lighting minimizes shadows
- Use with direct line voltage and can be dimmed via off-the-shelf phase cut or triac dimmers
Includes
- Ovation 2WL
- Seetronic Powerkon power cable
- Omega Bracket with mounting hardware
Specifications
Optical
- Light Source: 960 LEDs (CW, WW)
- Color Temperature (3200k): 3217 K
- Color Temperature (4000k): 3960 K
- Color Temperature (5600k): 5584 K
- CRI (3200K): 95.3
- CRI (4000K): 95.2
- CRI (5600K): 94.0
- Beam Angle: 107.4°
- Field Angle: 158.7°
- Lumens (3200k): 10,564
- Lumens (4000k): 10,954
- Lumens (5600k): 11,328
- Illuminance 3200k): 158 lux @ 5 m
- Illuminance (4000k): 164 lux @ 5 m
- Illuminance (5600k): 169 lux @ 5 m
Dynamic Effects
- Dimmer: External Dimmer (phase cut or triac compatible)
- On-board Color Temperature Selection
Construction / Physical
- Dimensions: 17.51x 11.06 x 5.47 in (445 x 281 x 139 mm)
- Weight: 10.2 lb (4.6 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy
- Accessory Holder/Gel Frame Size: 14.375 x 8.50 x 0.125 in (365.125 x 216 x 3.175 mm)
Connections
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Cable Length (power): 5 ft (1.5 m)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 13 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
- Power and Current: 103 W, 0.91 A @ 120 V, 60 Hz
- Power and Current: 99 W, 0.55 A @ 208 V, 60 Hz
- Power and Current: 98 W, 0.51 A @ 230 V, 50 Hz
- Breaker Size: T2.5 A, 350 V
Certifications / Qualifications
- CE, MET, FCC, RoHs
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
