Product Description

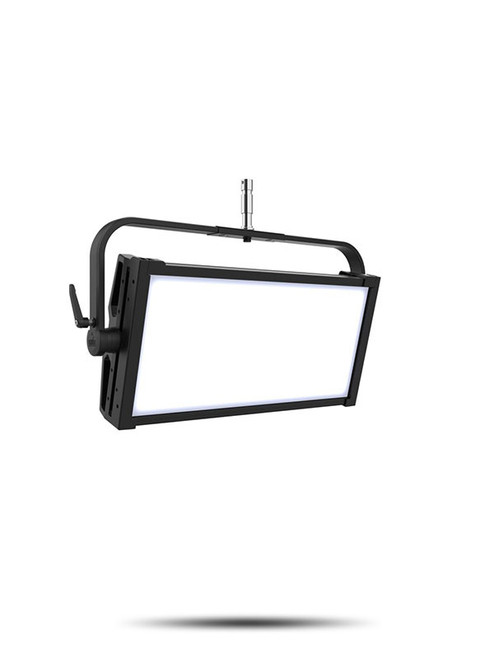

Chauvet Pro onAir IP Panel Min Full Spectrum LED Soft Light
Overview
The Chauvet Professional onAir Panel Min IP is a rugged, IP65-rated, full-spectrum soft LED light with a small and rugged format. It will withstand the elements in a wide array of shooting situations. Ready to go on location or squeeze into any studio space with a low-trim, it features a high CRI of 95, ultra smooth 16-bit dimming curves, +/- green adjustment, an emulated redshift, and built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all your remote needs
Features
- Full-Spectrum LED soft light panel for broadcast, film, and special events
- IP65 rating for all-weather use
- Easily switch mounting options
- Adjustable PWM (Pulse Width Modulation) for flicker-free performance
- Remote Device Management and CRMX Wireless Control for added flexibility
Specifications
Lumens | 22,508 |
Photometrics | 99° 383 fc / 4125 Lux at 3.3' / 1 m* 15 fc / 165 Lux at 16.4' / 5 m *Standardized Measurement Calculated Internally Based on Closest Distance |
Color Temperature | 2800 to 8000K |
Color Accuracy Standard | CRI 95 |
Expected Lamp Life | 50,000 Hours |
Max DMX Control Channels | 16 |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 28 VDC |
Power Pass-Thru | Yes |
Power Consumption | 57 W Maximum |
IP Rating | IP65 |
Operating Temperature | -4 to 113°F / -20 to 45°C |
