Product Description

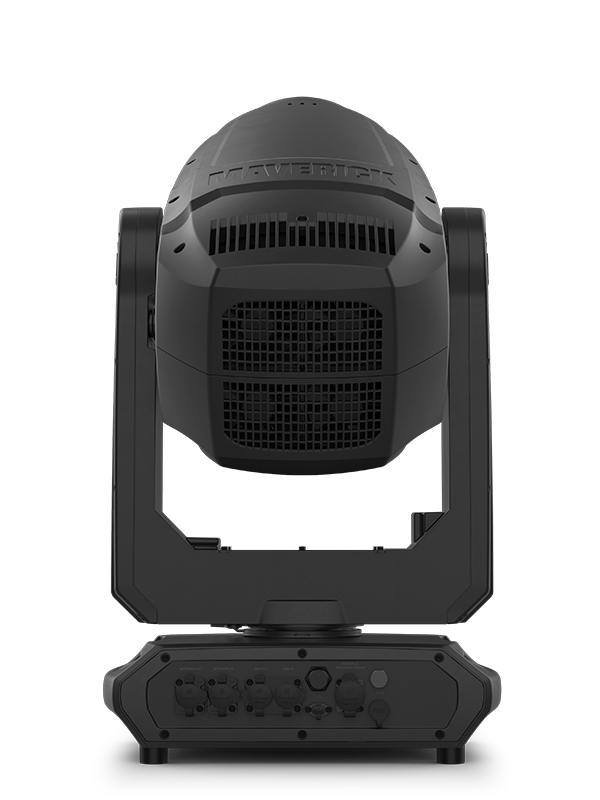

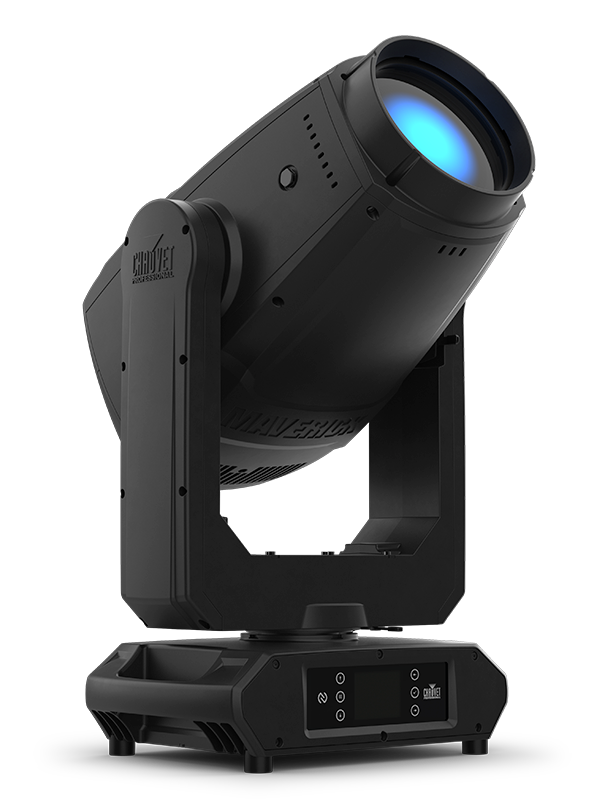

Chauvet Pro Maverick Storm 3 Profile Moving Head Fixture
Overview
With an 18:1 zoom and a full armory of features, Maverick Storm 3 Profile is a compact IP65 moving profile with incredible reach. This lightweight powerhouse combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Harness over 30,000 lumens of output as you go from a narrow 3.5° beam to a wide 57.7° spot. Freely create with its exquisitely sharp framing shutter system and a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.
Features
- 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
- Variable CMY + CTO color mixing system to create a wide pallet of colors
- CRI and CTB filters on color wheel for added flexibility
- One rotating, indexing, and interchangeable slot and lock gobo wheel
- One static gobo wheel
- DMX, WDMX, sACN, and Art-Net for full flexibility of control options
- RDM control over DMX for fixture reporting
- 3.5° to 57.7° (18:1) zoom range for variable beam sizes
- Iris, 5-facet prism and frost for beam control
- True 1 compatible power input
- Integrated sun shield for protecting the optical path from sunlight when the fixture is off
- Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
Includes
- Maverick Storm 3 Profile
- Seetronic Powerkon IP65 power cord to Edison
- Omega bracket with mounting hardware
Specifications
Optical
- Light Source: 1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
- Color Temperature (at full): 7062 K
- CRI: 72.3
- CRI with CRI Filter: 90.2
- Front Lens Diameter: 165 mm
- Beam Angle: 3.5° to 51.5°
- Field Angle: 4.1° to 54.3°
- Cutoff Angle: 4.3° to 57.7°
- Zoom Range: 3.5° to 57.7°
- Lumens – Output: 34,500 lm
- Illuminance (3.5°) 165,664 lux @ 5 m
- Illuminance (56.7°) 2,173 lux @ 5 m
- PWM Frequency: 600Hz, 1500Hz, 2000Hz, 65,000Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
- Colors: CMY wheel, CTO wheel
- Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 9 + open (glass), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
- Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
- Framing Shutter rotation: +/- 60° rotation.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Animation: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 25 Hz
- Move-in-Black: Yes
- Dim Curves: 4
Construction / Physical
- Dimensions: 15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
- Weight: 69 lb (31.3kg)
- Exterior Color: Black
- Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel
Connections
- Power Connection: Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
- DMX Channels: 34 or 50
- Art-Net Channels: 34 or 50
- Modes/Personalities: 2 personalities (34, 50)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 1020 W, 8.5 A @ 120 V, 60 Hz
- Power and Current: 1020 W, 4.82 A @ 208 V, 60 Hz
- Power and Current: 1010 W, 4.39 A @ 230 V, 50 Hz
- Fuse: F15 AL, 250 V
Certifications / Qualifications
- CE, MET, FCC, CB, UKCA
- IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
