Product Description

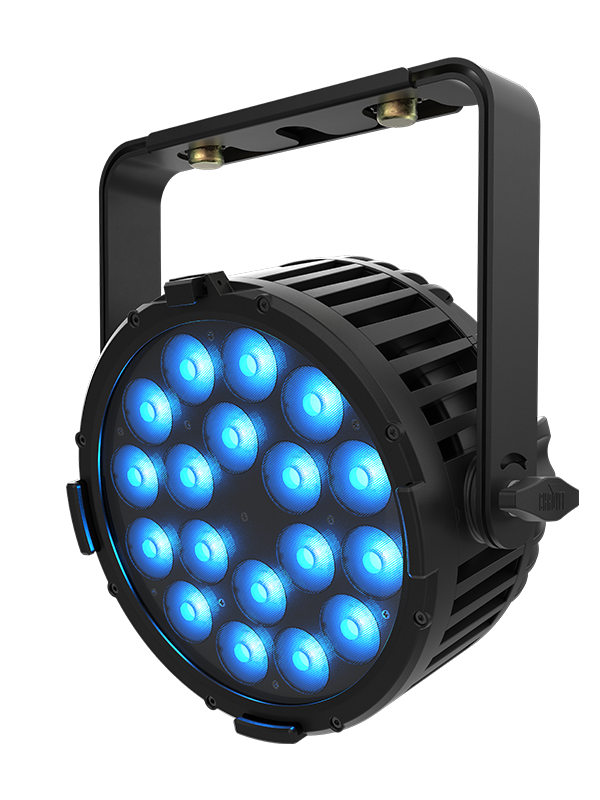

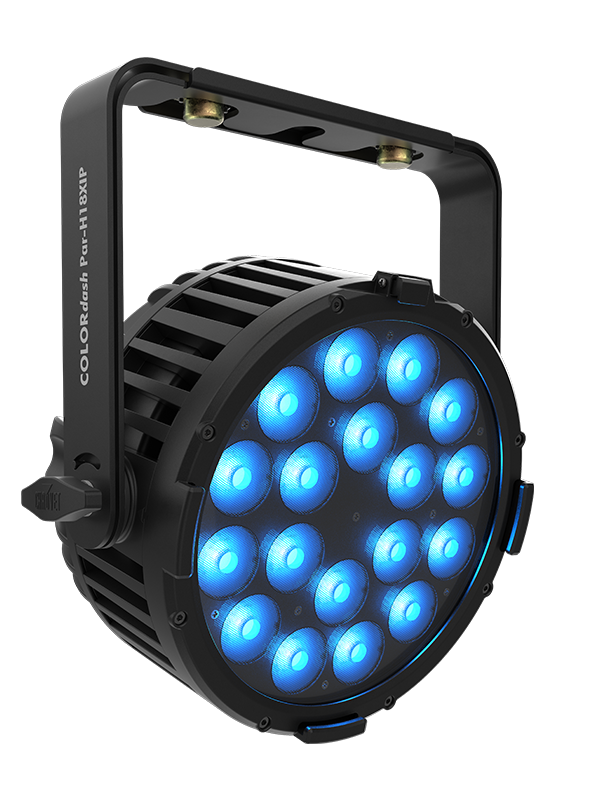

Chauvet Pro COLORdash PAR H18X IP
Overview
The rugged COLORdash PAR H18X IP RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H18X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.
Features
- Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
- At home in any weather conditions with IP-rated power and DMX connections
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- RDM (Remote Device Management) for added flexibility
- Selectable, smooth dimming curves for eliminating flicker and choppiness in fades
- Easy-to-read OLED display with password protection and touchscreen interface
- Advanced optics provide exceptional color mixing and high efficiency
- Double-bracketed yoke with omega bracket doubles as floor stand
Includes
- COLORdash PAR H18X IP
- Seetronic Powerkon IP65 power cord
- Gel frame
- Omega bracket
- Quick Reference Guide or User Manual
Specifications
Optical
- Light Source: 18 LEDs (HEX-color RGBAWUV)
- Color Temperature (range): 2,800 to 10,000 K
- Color Temperature (at full): 8,439 K
- Beam Angle: 25.4°
- Field Angle: 39°
- Lumens: 5,567 lm
- Illuminance (total): 1,106 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 13.58 x 12.89 x 6.23 in (344.8 x 327.4 x 158.2 mm)
- Weight: 14.4 lb (6.6 kg)
- Exterior Color: Black
- Housing Material: Aluminum diecast
- Accessory Holder/Gel Frame Size: 9.5 in (241.3 mm)
Connections
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
- Software Update: USB-C
Control
- Control Protocol: DMX, RDM
- DMX Channels: 6, 8, 9, 13 or 14
- Modes/Personalities: 5 personalities (6ch, 8ch, 9ch, 13ch, 14ch)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
- Power and Current: 154 W, 1.25 A @ 120 V, 60 Hz
- Power and Current: 148 W, 0.72 A @ 208 V, 60 Hz
- Power and Current: 150 W, 0.66 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
