Product Description

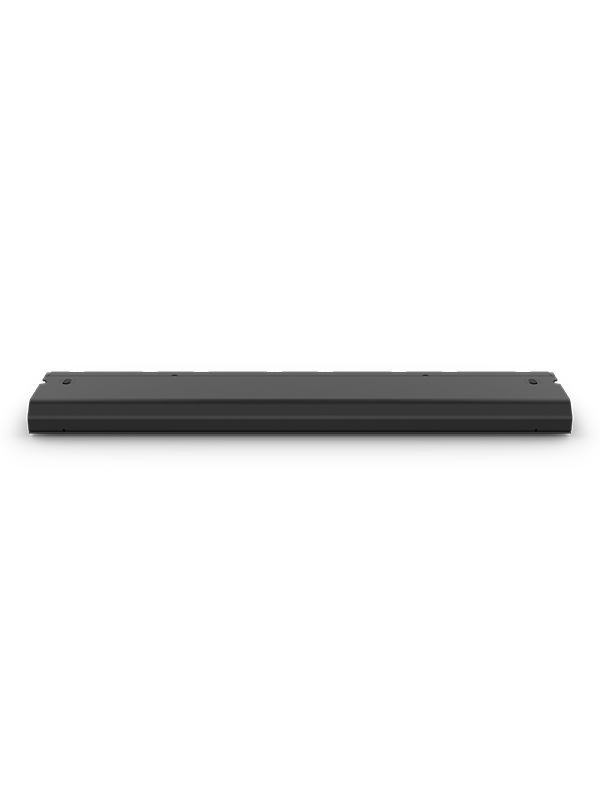

Chauvet Pro COLORado Solo Edge 3
Overview
This low-profile 1-meter IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.
Features
-
Low-profile, 1m, IP65 rated footlight with full-color and high-quality white light
-
Single-source lens for smooth, even output with no distracting points of light and an additional “stealth” filter to help the fixture disappear when off
-
Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
-
Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen.
Includes
- COLORado Solo Edge 3
- Seetronic Powerkon IP65 power cord
- Power and Data linking cables
- Stealth Filter
- Omega bracket with mounting hardware
Specifications
Optical
- Light Source: 112 LEDs (Quintuple-color-RGBWL) , K 20,000 hours life expectancy
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 6600 K
- CRI (2800): 93
- Beam Angle: 111° (Horizontal)
- Beam Angle: 120° (Vertical)
- Field Angle: 134° (Horizontal)
- Field Angle: 161° (Vertical)
- Lumens: 17,698
- Illuminance (total): 221 lux @ 5 m
- PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
- Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Framing Shutters: No
- Strobe Rate: 0 to 30Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: Yes
- Recall Custom Programs: Yes/No
Construction / Physical
- Dimensions: 39.37 x 8.85 x 2.51 in (1000x 225 x 64mm)
- Weight:22 lb. (10 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy and Aluminum diecast
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, sACN
- DMX Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69 - Art-Net Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69 - Modes/Personalities: personalities (32)
- Frequency (operating): 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz or 25KHz
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 ; 6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
- Power and Current: 242 W, 2.03 A @ 120 V, 60 Hz
- Power and Current: 237 W, 1.18 A @ 208 V, 60 Hz
- Power and Current: 236 W, 1.06 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, ROHS
- IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): 4 °F to 113 °F (-15 °C to 45 °C)
