Product Description

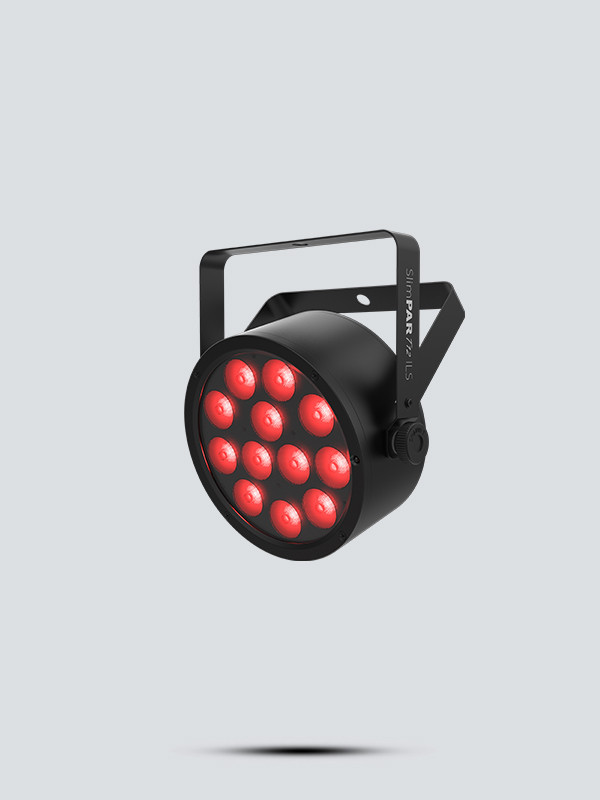

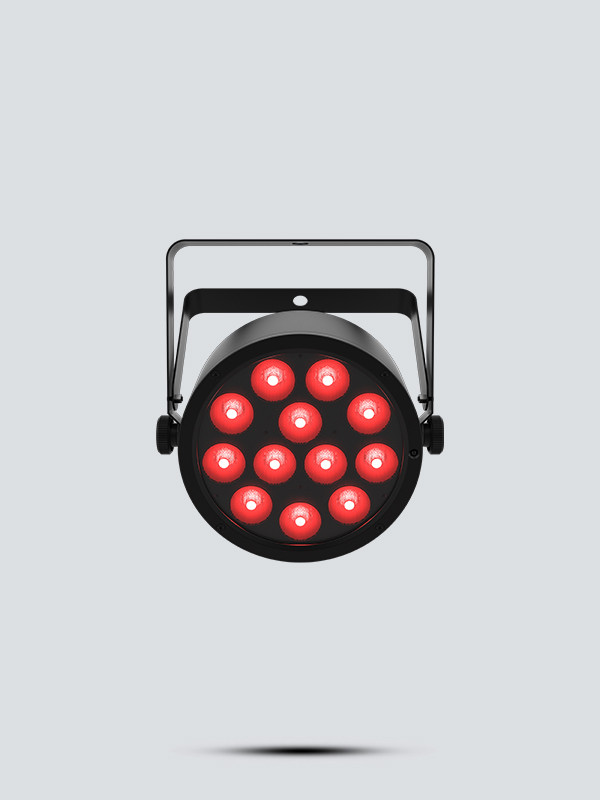

Chauvet DJ SLIMPART12ILS SlimPAR T12 ILS Low-Profile Tricolor LED PAR Light
Overview
Mobile entertainers and lighting technicians in need of a wash light will be impressed with the CHAUVET DJ SlimPAR T12 ILS, a low-profile LED PAR that's powered by twelve 4.9W tricolor LEDs (red, green, blue) and lets you generate a broad spectrum of colors, well suited for clubs, bars, concerts, special events, parties, and more. The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, allowing any ILS-enabled fixture to be controlled wired or wirelessly.
The SlimPAR T12 ILS allows you to create custom colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves. The fixture is flicker-free, making a great choice for on-camera work. The SlimPAR T12 ILS is equipped with a universal, auto-sensing power supply and is compatible with the IRC-6 wireless remote (available separately) and the optional D-Fi USB for wireless master/slave and DMX applications.
Features
- Integrated Lighting System (ILS)
- Generates a Broad Spectrum of Colors
- D-Fi USB Compatibility for Wireless DMX
- Static Color Mixing + Auto Programs
- DMX and Power Linking Capable
- Compatible with Optional IRC-6 Remote
- Flicker-Free Operation for Cameras
- Built-In Dimming Curves
- DMX, Sound Reactive, Master/Slave Modes
Specifications
| Fixture Type | PAR |
| Light Source | 12 x Color LED - 4.9 W / 1.19 A |
| Expected Lamp Life | 50,000 Hours |
| Colors | Red, Green, Blue |
| Photometrics | 312 fc / 3362 Lux at 6.6' / 2 m |
| Lumen Output | 1415 Lumens |
| Beam Angle | 17° |
| Field Angle | 29° |
| Iris | No |
| Zoom Adjustment | None |
| Dimming | Electronic, 0 to 100% |
| Operating Modes | DMX, Primary/Secondary, Standalone |
| Macros / Programs | Auto-Program Sound-Active Color Macro |
| Effects | Strobe (Variable Speed) |
| Strobe Rate | 0 to 11 Hz |
| Gobos | None |
| Control Protocols | DMX512 |
| DMX Channel Modes | 2 Mode(s): 3 / 8-Channel |
| Remote Control | IR Remote (with Optional Equipment) D-Fi USB (with Optional Equipment) |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x Edison Plug Type: NEMA 5-15 |
| Power / Current Consumption | 120 VAC, 60 Hz: 43 W / 0.6 A 230 VAC, 50 Hz: 43 W / 0.3 A |
| Power Linking | 13 Units at 120 VAC 23 Units at 230 VAC |
| Environmental Protection | None |
| Mounting | Dual/Scissor Yoke |
| Included Accessories | 1 x Power Cable |
| Exterior Color | Black |
| Cooling | Convection |
| Dimensions | 9.7 x 8.8 x 8.8" / 24.6 x 22.4 x 22.4 cm |
| Weight | 3.6 lb / 1.6 kg |
