Product Description

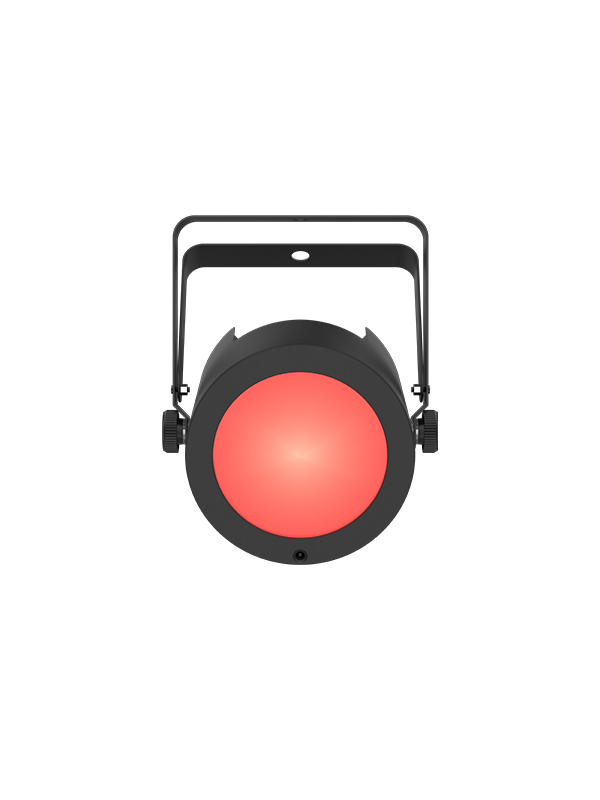

Chauvet DJ COREpar Q60 ILS COB LED PAR (RGBA)
Overview
Mobile entertainers and lighting technicians in need of a wash light will be impressed with the CHAUVET DJ COREpar Q60 ILS, a low-profile LED PAR powered by a 60W quad-color COB LED (red, green, blue, amber) and lets you generate a broad spectrum of colors well suited for clubs, bars, concerts, special events, parties, and more. The Integrated Lighting System (ILS) is a complete lighting technology ecosystem that provides an advanced coordinated light show across multiple fixture types, allowing any ILS-enabled fixture to be controlled wired or wirelessly. The COREpar Q60 ILS allows you to create custom colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves. The fixture is flicker free, making it a great choice for on-camera work. The fixture is equipped with a universal autosensing power supply and is compatible with the IRC-6 wireless remote (available separately) and D-Fi USB (available separately) for wireless primary/secondary and DMX applications.
Features
- COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
- Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
- D-Fi USB compatibility for wireless primary/secondary or DMX control
- Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
- Withstand the harshness of traveling from gig to gig with a robust housing
- Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
- Achieve flicker-free video operation with high-frequency LED dimming
- Save time running cables and extension cords by power linking multiple units
- Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
- Create customized colors using the built-in LED display
- Achieve smooth LED fading with built-in dimming curves
- Easily transports in the optional CHS-40 VIP Gear Bag
Specifications
| Fixture Type | PAR |
| Light Source | 1 x Color LED (COB) - 60 W / 2.8 A |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Red, Green, Blue, Amber |
| Photometrics | 29.7 fc / 320 Lux at 6.6' / 2 m 259.7 fc / 2796 Lux at 78.7" / 2 m |
| Color Temperature | 2700 to 6000K |
| Beam Angle | 74° 20° (with Installed Lens) |
| Field Angle | 100° 30° (with Installed Lens) |
| Shutter / Strobe | Electronic |
| Dimming | Electronic, 0 to 100% |
| Operating Modes | DMX, Primary/Secondary, Sound-Active |
| Macros / Programs | None |
| Effects | Strobe |
| Strobe Rate | 0 to 29 Hz |
| Gobos | None |
| Control Protocols | DMX512 |
| DMX Channel Modes | 2 Mode(s): 4 / 9-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | D-Fi USB, IR Remote (with Optional Equipment) |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x USB-A Remote Input |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x Edison |
| Power / Current Consumption | 120 VAC: 59 W / 0.8 A 230 VAC: 57 W / 0.5 A |
| Power Linking | 9 Units at 120 VAC 17 Units at 230 VAC |
| IP Rating | None |
| Mounting | Dual/Scissor Yoke |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Certifications | CE, RoHS, *as per Manufacturer |
| Dimensions | 8.3 x 7.6 x 7.6" / 21 x 19.2 x 19.2 cm |
| Weight | 3.3 lb / 1.5 kg |
