  • ChamSys CHAMMMSDI4 MediaMaster VisionSC-SDI4 (4 x SDI) (CHAMMMSDI4)
  • ChamSys CHAMMMSDI4 MediaMaster VisionSC-SDI4 (4 x SDI) (CHAMMMSDI4)
  • ChamSys CHAMMMSDI4 MediaMaster VisionSC-SDI4 (4 x SDI) (CHAMMMSDI4)
  • ChamSys CHAMMMSDI4 MediaMaster VisionSC-SDI4 (4 x SDI) (CHAMMMSDI4)

    • ChamSys CHAMMMSDI4 MediaMaster VisionSC-SDI4 (4 x SDI)

    MSRP: $4,995.00
    $4,500.00
    (You save $495.00 )
    SKU:
    CHAMMMSDI4
    UPC:
    781462231279
    Availability:
    Typically ships in 3-5 business days.
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

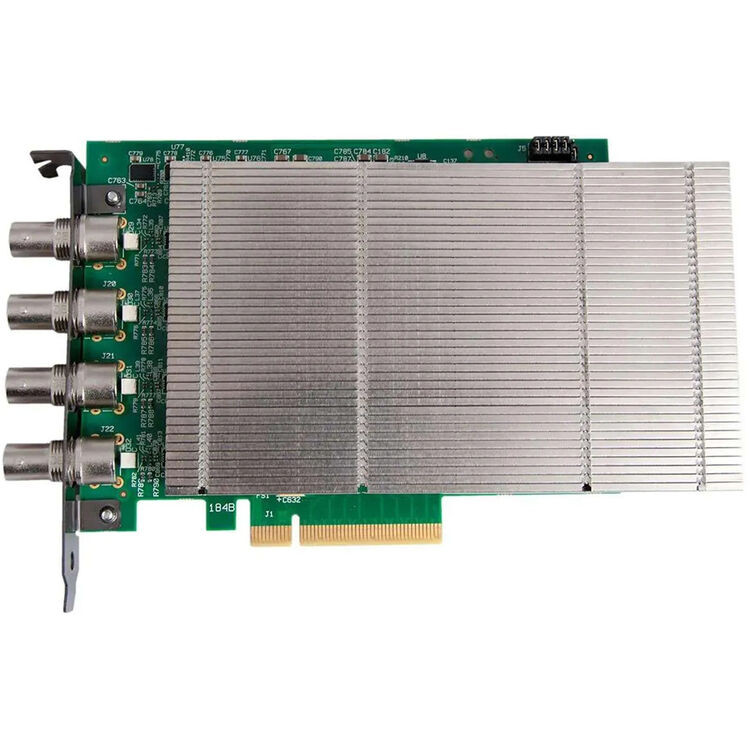

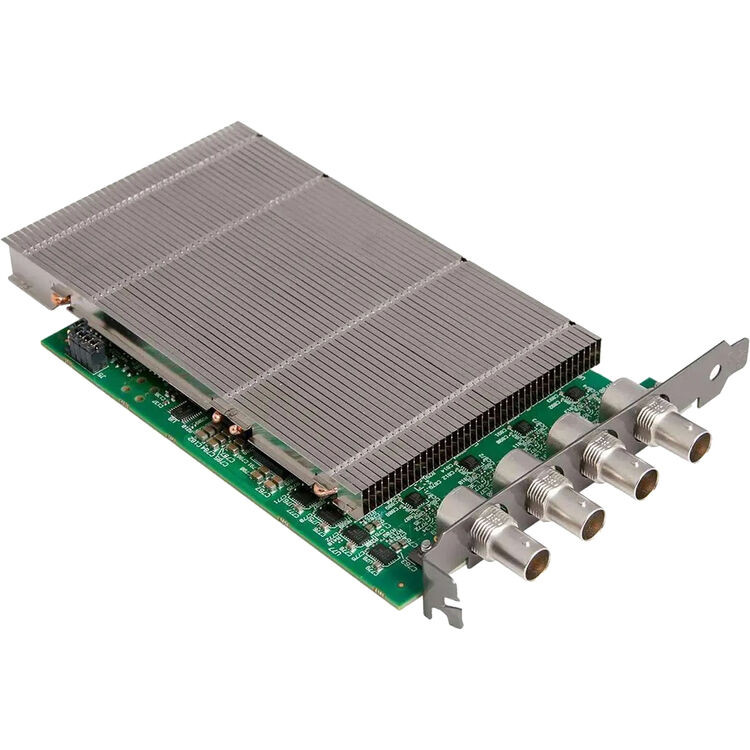

    ChamSys CHAMMMSDI4 MediaMaster VisionSC-SDI4 (4 x SDI)

    Overview

    Add dual SDI input to your MediaMaster VS2+ or VS4+ system with the MediaMaster VisionSC-SDI4 PCIe Card from ChamSys. This PCIe card allows you to add four 3G-SDI inputs to the system using a standard PCIe slot for use with MediaMaster software. It supports 3G-SDI format, up to 1920 x 1080p60 capture resolution, and a per-channel data rate up to 2.97 Gb/s capture bandwidth.

    Features

    • Add 4 x 3G-SDI Inputs to VS2+/VS4+
    • Import SDI Video into MediaMaster
    • PCIe x8 Gen 3, 768MB Frame Buffer
    • Capture up to 1920 x 1080p60 Video
    • 2.97 Gb/s Capture Bandwidth

    Specifications

    General
    Compatibility
    CHAUVET Professional MediaMaster VS4+ / MediaMaster VS2+
    Type
    PCIe x8 Gen 3
    Maximum Resolution
    1920 x 1080p60
    Buffer
    Frame Buffer: 2.97 Gb/s per Channel
    Inputs/Outputs
    Video I/O
    4x BNC (3G-SDI) Input
    Power
    Power Source
    Proprietary Interface
    DC Input Power
    3.3 to 12 VDC at 0.45 to 0.85 A
    Power Consumption
    18 W
    Physical
    Operating Conditions
    32 to 95°F / 0 to 35°C at 5 to 90% Humidity
    Storage Conditions
    -4 to 158°F / -20 to 70°C at 5 to 90% Humidity
    Dimensions
    7 x 4.3" / 177 x 110 mm

    Other Details

    All products except consumables and input devices, are covered by our own 24 month return to base warranty. If you wish to return any faulty item you must first contact our Support Department and obtain a RMA Number. The warranty is non-transferable. Any warranties for defects shall become void if the Seller’s operating and maintenance instructions are not complied with, if modifications are made to the goods delivered, or if replacement parts or consumables are used that do not meet the original specifications.
