Product Description

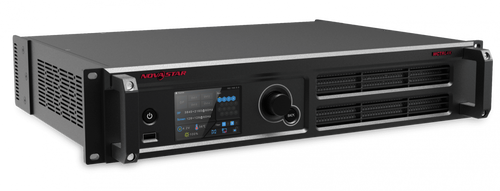

Blizzard NovaStar-MCTRL4K Independent Controller
With up to 3840×2160@60Hz loading capacity of a single unit, MCTRL4K can support any custom resolution within this range as required, thus meeting the on-site configuration requirements of super-long or super-large LED displays. In multi-card mode, the MCTRL4K can be used as two independent controllers, making the images of two input sources perfectly displayed on the screen.
Features
• Product Type: Independent Controller
• Input Resolution: Up to 3840x2160 @ 60Hz
• Capacity: 8.3 million pixels
• Control Method: USB/TCP/IP
• Video Interface: DP1.2 x 1, HDMI2.0 x 1, dual-link DVI x 2
• Audio Interface: HDMI
• Video Format: RGB, YCrCb4:4:4, YCrCb4:2:2, YCrCb4:2:0
• Output Interface: Neutrik EtherCON × 16 / OPT Ports × 4
• Bit Depth Of Video Resource: 8/10/12bit
Specs
Connectors
- Input: DP 1.2, HDMI 2.0, DUAL DVI-D1, DUAL DVI-D2
- Output: 16 ×Neutrik (NE8FBH) Gigabit Ethernet outputs, OPT1–4
- Genlock In/Loop
Control
- ETHERNET (PC)
- USB IN/OUT (PC, cascading)
Power & Current
- 100-240VAC, 50-60 Hertz
- Power Consumption: 30W
Thermal
- Max. Operating Temp.: -20°C–60°C
- Operating Humidity: 10% RH–90% RH
Weight & Dimensions
- Dimensions: 482.6 × 372.0 ×96.0 mm
- Weight: 4.6 kg
Included in the box:
- Each MCTRL4K unit is equipped with a suitcase, an accessory box and a large carton.
