Product Description
Blizzard Lighting KOMPLY-WW5050 5-Meter RGB 12v LED Ribbon Roll, 60 LEDs Per Meter (warm white)
Komply™ LED ribbon is a wonderful architectural LED lighting solution for numerous indoor or outdoor applications. We have it readily available in RGB (30 or 60 LEDs per meter) and also single color cool white, warm white and ultraviolet. Our Komply™ LED ribbon has successfully met the stringent UL standards for product safety.
With Komply™ LED ribbon, you'll need to give it power, and our Komply™ POW150 is the perfect match. The Komply™ POW150 will power up to 4 full rolls LED ribbon, or 3 full rolls with longer cabling runs of more than a few feet. If your installation is in need of a power supply with even more wattage output, we also offer a 300 watt version with the POW300 power supply.
The RGB5050 (30 LEDs per meter) or 5050-RGB-HP RGB (60 LEDs per meter) color changing LED strips require either the Komply™ DMX-24 controller, which will give you a wide array of creative lighting options for any situation, the Komply™ Remote, which gives you wireless remote ability with 11 built-in programs, or the Komply™ Knob 3, which simply puts precise RGB color mixing at your fingertips. No controller is necessary for single color ribbon, just install it with the supplied mounting clips and give it some power!
Komply™ ribbon flex is cuttable between every 3 LEDs, which means no matter what length your application calls for, you're sure to get a perfect fit. If the total length of your project has nearly maxed the output of the power supply, the Komply™ Amp will give you the boost you need. It's capable of increasing the PWM (pulse width modulation) more than double.
Other single colors are available for special order only including: red, green, blue, and amber.
Readily available Komply™ ribbon models:
• 5050-RGB-HP: R/G/B 12v LED Ribbon, IP65, 5-Meter Roll, 60 LEDs per meter
• RGB5050: R/G/B 12v LED Ribbon, IP65, 5-Meter Roll, 30 LEDs per meter

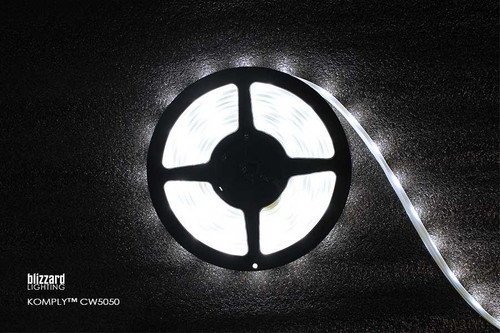

• CW5050: Cool White 12v LED Ribbon, IP65, 5-Meter Roll, 30 LEDs per meter
• Warm White 12v LED Ribbon, IP65, 5-Meter Roll, 30 LEDs per meter
• UV5050: Ultraviolet 12v LED Ribbon, IP65, 5-Meter Roll, 30 LEDs per meter
And of course, all Komply™ products are backed by our 2-year warranty!
Product Specifications
Available in RGB, and single color cool white, warm white, or UV
150 SMD LEDs per 5m roll, or 300 SMD LEDs per 5m roll (KOMPLY™ 5050-RGB-HP)
Single color red, green, blue, and amber available through special order
IP65, outdoor rated
Easy to install
Can be trimmed to custom lengths
Each roll includes its own mounting clips
Rugged and well-built (It hits the gym regularly)
LED Type: SMD 5050
Luminous Flux: 16Lm per LED (150 SMD rolls)
Reel Length: 5m (16.4ft)
Usage: Indoor/Outdoor
Cuttable Section Length: every 3 LEDs/10cm (150 SMD rolls)
LED chip manufacturer: Taiwan Epistar
PCB Thickness：0.2CM
Power Consumption: 7.2w per meter (150 SMD rolls)
Beam angle: 120°
Working Voltage: 12V
Working Temperature:-4°F (-20°C)~ 122°F (50°C)
Lifespan: 50,000+ hours
Low heat emission
Short circuit and overload protection
Constant voltage output
Waterproof, IP67
Input voltage: AC 100-130V, 3.2A
Output voltage: DC 12V, 12.5A
Power: 150W
Material: aluminum alloy
Size: 240(L) x 68(W) x 40(H)mm / 9.45(L) x 2.68(W) x 1.57(H)inch
Weight: 2.7 lbs / 42.28 oz
Low voltage DMX Decoder (12/24VDC). The Kontrol™ DMX converts to the universal standard DMX512/1990 signal into analog signal. Uses 4 channels and can also be used to dim single color with 256 shades of brightness.
Operating temperature: -20 to 50 C Indoor (dry location)
Supply voltage: 5V to 24VDC
Output: 4 channels
Grayscale: 256/channel
External dimension: 6.5 x 2.7 x 1.6 inches (165 x 68 x 40 mm)
Weight: .71 lbs. (320g)
Static power consumption: <1W
Output current: each channel 3 Amps (max)
Maximum Input: 5 Amps 12VDC / 8 Amps 24VDC
Output power: 5VDC:60W, 12VDC:108W, 4VDC192W (maxmum)
Certifications: CE, Rohs
The 4-button RF remote control features button A: Built-in programs, B: Speed Up, C: Speed Down, and D: On/Off.
Working temperature: -4 to 140°F
Supply voltage: 12V
Output: 3 channels
Connecting mode: common anode
Reception frequency: 315 Mhz
Dimension: L88 Χ W45 Χ H26 mm (3.5 x 1.8 x 1.1 inches)
Weight: 195g
Power consumption: <1W
Output current: 4A (each channe)
Output power: 12V
Stepless RGB dimming controller.
Working Temperature:-4°F (-20°C)~ 140°F (60°C)
Supply voltage: DC12V
Output: 3 channels
Dimensions: 5.2 x 1.58 x 2 inches (130 Χ 40 Χ 51 mm)
Max load current: 3A each color
Weight: 95g
The Komply™ RGB amplifier is designed to receive and amplify PWM (Pulse Width Modulation). With the addition of an RGB amplifier, the number of connected LEDs can more than double.
Working temperature: -4-140ºF
Supply voltage: DC12V
Output: 3 channels
Connection: common anode
External dimension: 4.14 x 2.26 x 1 inches (105 x 65 x 25mm)
Weight: 145g
Static power consumption: <1W
