Product Description

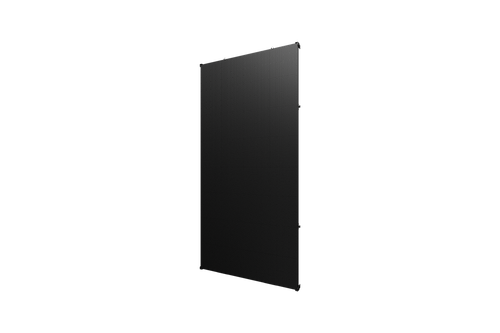

Blizzard IRiS Icon 2.9 2.9mm Outdoor IRiS LED Panel
Faster, Lighter, Stronger
IRiS® ICON™ panels are in the perfect locking position as soon as you take them out of the case, and lock together with a quick flick of the thumb. We also added one-touch retractable metal corner protectors, blackout gaskets & ground support locks all within its ultra lightweight frame.
Adaptive Advanced Technology
The panels feature NovaStar® A8S receiving cards, which offer HDR10 & HLG support, automatic module calibration, image rotation and more. As the US' largest NovaStar® distributor, we work hand-in-hand with them to develop custom firmware solutions to handle virtually any application.
Ready to Hit the Road
With room for eight 500x500mm IRiS® ICON™ 2.6 or eight ICON™ 2.9 panels each, even our ATA-spec roto-molded road cases are better than ever. Experience the simple bliss of self-aligning magnetic casters, which makes stacking cases for transport a breeze.
No Fears for 7 Years
IRiS® ICON™ panels are now covered by the industry's only seven-year limited warranty, with coverage designed specifically to keep your panels in the field, not in a repair shop. Check out the full details of our rock-solid "No Fears for 7 Years" warranty.
Specs
Overview
- IP40 (front) / IP21 (rear)
- Installed receiving card: Novastar® A8S
- Die cast aluminum
- Front or back maintenance
- Corner protectors
- Ground support locks
- Blackout gaskets
- Quick-thumb locking
- Certifications: FCC, ETL, CE, RoHS
Tech Specs
- Curvature: ±9°
- Viewing angle: 140° / 140°
- Optimal viewing distance: 2.9 - 29.0 meters
- Working temp: -10°~+40° C
- Working humidity: 10% - 90% RH
Module Specs:
- Module quantity: 2 x 2
- Resolution: 84 x 84
- Pixel quantity: 7,056
- Dimensions: 250 x 250 mm
Optical
- Nationstar® 1515 LEDs
- Pixel pitch: 2.9 mm
- Resolution: 168 x 168
- Pixel quantity: 28,224
- Pixel density: 112,896 dots/m2
- Scan mode: 1/21
- Brightness: 1000 nit
- Contrast: 5,000:1
- Color depth: 14 bit
- Grayscale: 22 bit+ / Clearview
- Refresh rate: 3,840 Hz
- HDR: HDR10-Optima / HLG
Power
- 110~220VAC, 50/60 Hz
- Input power: 662.5 W/m2
- Avg. power consumption: 176 W/m2
- Max. power consumption: 530 W/m2
Warranty
- 7-year limited warranty
Dims & Weight
- 19.7" L x 19.7" W x 2.84" H
- 14.6 lbs
