Product Description

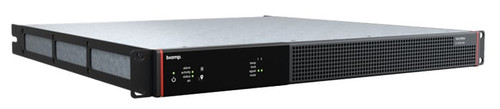

Biamp Voltera D 1200.8 8-Channel Amplified Loudspeaker Controller, 1200 Watt Total Power
Overview
biamp's Voltera D series amplified loudspeaker controllers are versatile, high-performance units available with 1200 or 2400 Watts in 4 or 8-channel configurations that deliver exceptional audio, efficient performance, flexibility, and user-friendly control to any installation.
Supporting AVB, Dante (with dual redundancy), and AES67 audio, these controllers offer impressive power-sharing, allowing up to 75% of the total output on any channel and accommodating both Lo-Z and Hi-Z for hybrid systems and seamless integration. With powerful onboard DSP, wide dynamic range, high peak voltage output (up to 160Vpk), and low idle power consumption, they are engineered for maximum efficiency, reliability, and dynamic performance.
Configurable via Tesira or VenueTune software, the Voltera D series is ideal for environments from houses of worship to large-scale venues, meeting the requirements of the U.S. federal government through TAA compliance, and backed by a 5-year warranty.
Features
- Powerful onboard DSP
- Lo-Z or Hi-Z per channel to support hybrid systems
- Configurable with Tesira or VenueTune software
- Power sharing up to 75% (4-channel models) of the total power into any channel
- Wide dynamic range
- Low power consumption during use, idle, and standby
- Limiting for maximum reliability and zero clipping
- High peak voltage output capability (up to 160Vpk)
- High power and channel density
- 5-year warranty
- Compliant with the US Trade Agreement Act (TAA)
Includes
- Voltera D Series device
- Rear Rack support brackets
- Logic IO mating plugs
- Audio input mating plugs â« 4 plugs for 4 channel amps â« 8 plugs for 8 channel amps
- Detachable IEC power cord
- 2x M6x15mm mounting screws
- Cable ties
- Product Documents
- Euroblock connector plugs for the amplified outputs (yellow) â« 4 plugs for 4 channel amps â« 8 plugs for 8 channel amps
Specifications
- GENERAL
- Height: 1.7 inches (44 mm) rack rail to rear panel
- Width: 17.5 inches (444 mm) rack rail to rear panel
- Depth: 16.9 inches (430 mm) rack rail to rear panel
- Weight: 18.1 lbs (8.2 kg)
- Accessories: Rear support kit for 19" 1 RU mount
- ENVIRONMENTAL
- Ambient Operating Temperature Range: 32-104F (0-40C)
- Humidity: 0-95% non-condensing altitude 0 - 2000 m (0-6562 ft)
- POWER
- Power per channel all channels driven: Hi-Z (70 / 100 V), 16 ohm, 8 ohm, 4 ohm, 2.7 ohm: 150 W
- Max power per channel using power sharing (available on any channel)
- Hi-Z (70 / 100 V): 600 W
- 16 ohm: 600 W
- 8 ohm: 600 W
- 4 ohm: 600 W
- 2.7 ohm¹: 430 W
- Power Consumption: 100-240 VAC, 50/60 Hz
- Power Output: Total output all channels driven: 1200 W
- Maximum output voltage: 145 Vpk
- Maximum output current: 24 Apk
- Cooling: Variable speed fans, front to back airflow
- NETWORK
- Network Connection(s): Ports 2 1000Base-T ports
- Networked media formats supported: Dante, AES67 and AVB
- Network modes supported Converged, split: PoE+ support If port 1 is connected to a PoE+ switch with a UPS, then the Voltera D will not reboot when mains power is lost
- Network latency AVB: 2 ms, Dante : 1 / 2 ms
- Sample rates supported: 96 and 48 kHz
- Remote interface: Tesira, VenueTune
- Third party interface: TTP
- CONTROLS & INDICATORS
- Front Panel Indicator(s): System status indicator: Shows if there are faults within the greater system
- Device status indicators: Status, activity and faults
- Channel status indicators: Mute, signal, limit and temp
- AMPLIFIER
- Channels: 8 Channels
- Signal Processing
- Latency (analog input to output): 2.5 ms (includes look-ahead delay in zero overshoot peak limiters)
- Default gain (analog input to output): 32 dB
- Per input: Supports input redundancy and failover to analog sources
- Multilayered group control of raised cosine EQ, gain, delay (≤2 s), polarity and mute
- Per output: Very comprehensive processing supporting loudspeaker profiles including
- 2048 tap FIR, 24 biquads
- Dynamic EQ
- Peak, program and thermal limiters with side chains
- Startup time with PoE+: <1 s
- AUDIO
- THD+N
- THD+N (1000 Hz, at 1 dB below max output) <0.05%
- THD+N (20 - 20000 Hz for 1 W) <0.05%
- Frequency Response: +/-0.5 dB (20 - 20000 Hz, 8 ohm, unweighted)
- Dynamic Range: 117 dB
- Crosstalk: >70 dB
- THD+N
- CERTIFIED SOLUTIONS
- TAA Compliant: TAA Compliant
