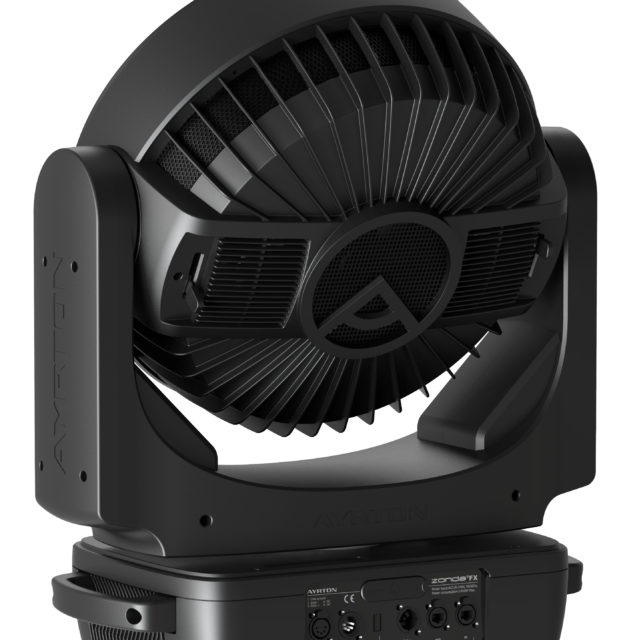

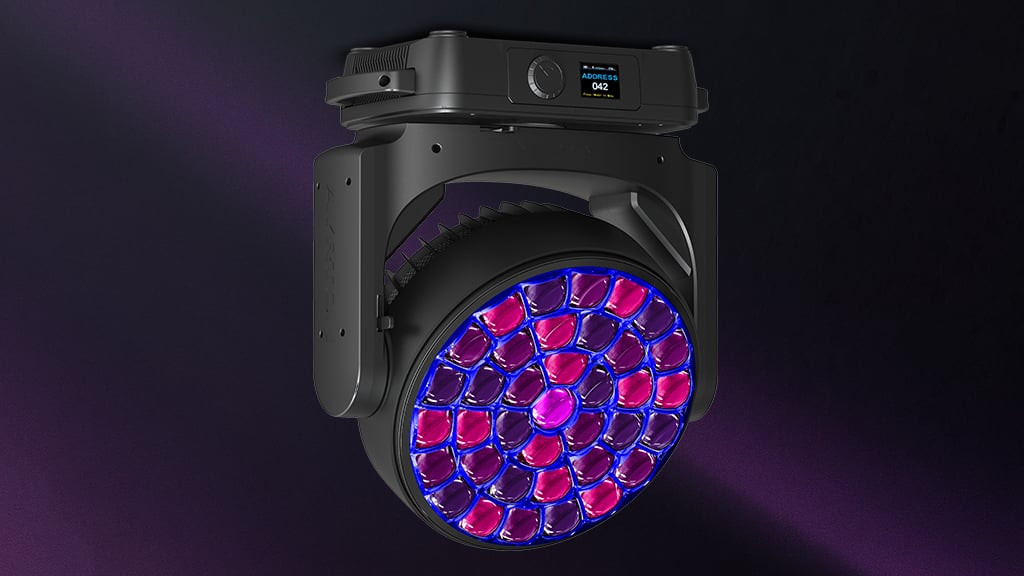

Ayrton AY017350 Zonda 9 FX IP20 LED Wash
Overview
ZONDA 9 FX is the first luminaire in a new family of products devised for stage lighting, equipped with a high-performance 40 W LED source with RGB+W additive colour synthesis.
This fixture offers a proprietary optical system consisting of a wide dial of 37 lenses in PMMA, 384 mm in diameter, combined with 37 glass light guides with an output surface made of an optical micro-structure. This LED/optical system combination can produce powerful light output of 25,000 lumens and a perfectly homogeneous mixture of pastel and saturated colours, regardless of the colour mix chosen. The perfectly crisp separation between the light sources helps to reinforce the level of contrast. Endowed with a 50 mm truncated transmitting lens with an optical surface equivalent to that of a 70 mm round lens, ZONDA 9 FX can obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4.0° to 56°.
A new optimised cooling system, simplified lens guidance systems, and ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM.
ZONDA 9 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version and offers infinite continuous rotation on the pan & tilt axes I.R.S.TM. Individual control of each LED allows you to achieve 3D volumetric effects. ZONDA 9 FX can produce a high-definition liquid effect from between its main lenses to create complex graphic effects LiquidEffectTM. This effect can be used alone or in combination with the main LED matrix. ZONDA 9 FX is a marvel of technology geared for creativity.
Performance
- 9 Series - Source: 37 RGB-W LED
- Lumens: 25,000
- Zoom aperture: 4° to 56°
- Frontal Lens: 37 x 50 mm
Specifications
Optics
- 2-element 14:1 zoom high-resolution optic system
- Beam aperture: 4° to 56°
- Fast motorised linear zoom
- 37 truncated edges 50 mm frontal lenses
- 384 mm front lens cluster
Light Source
- 37 x 1,000 lumens RGB-W High-Power LED sources
- Total luminaire output: up to 25,000 lumens
- CRI: up to 86
- Rated life (L70): up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
Movement
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
- PAN and TILT automatic repositioning
- Moving-head range: infinite pan & tilt rotation
Colors
- Sophisticated 4 colours RGB-W mixed, reaching high Colour Rendering Index
- Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
- 4.29 billion colours (8-bit resolution)
- Virtual colour wheel, including most usuals white colour temperature presets
Effects
- 2D & 3D graphical effects capabilities
- Effects can be coupled with beam, wash or matrix applications
- Built-in pattern effects with speed and fade controls for scenic applications
- LiquidEffectTM
Dimmer / Strobe
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
Software Features
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
Hardware Features
- Graphic LCD display for addressing and special functions settings, with flip function
- Clicking jog wheel to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- XLR 5 pin male and female connectors for DMX connection
- ethercon RJ45 IN / OUT connectors for ArtNet™ connection
- powerCON TRUE1 male connector for power connection
Control
- DMX 512 protocol, through DMX cable or wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- ArtNet™ & sACN protocol through Ethernet cable
- Local control panel, with LCD display
- Choice of 3 DMX modes (from 26 to 199 DMX channels)
Power Supply
- Electronic supply with active PFC
- 120 to 240 Volts – 50/60Hz
- Power 1,400 W maximum
Cooling System
- Advanced cooling system
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable auto, stage & studio ventilation modes
- Safety protection against temperatures excesses
Housing
- Moving-head skeleton made of aluminium and steel metal plates
- Base in die-cast aluminium
- Heatsinks in aluminium
- Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Two-side handles for transportation
- Four heavy-duty feet for better stability
- IP20 protection rating
- Exterior finish: black (Carbon)
Installation
- Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
- Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
Operating Parameters
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45 °C (113°F)
- Minimum permitted ambient temperature (Ta min): -10 °C (14°F)
- Minimum usage distance: 3 m (9.84 ft)
Compliance
EU (EMC & LVD)
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
US (Safety & EMC)
- UL 1573
- FCC Part 15, Subpart B: 2018
Size
- Product: 530 x 625 x 280 mm (l x h x d)
- Flight-case foam: 580 x 611 x 345 mm (l x h x d)
Weight
- Product: 29.2 kg
Product Codes
- 013750: ZONDA 9 FX – MULTI SOURCES 9 SERIES
