Product Description

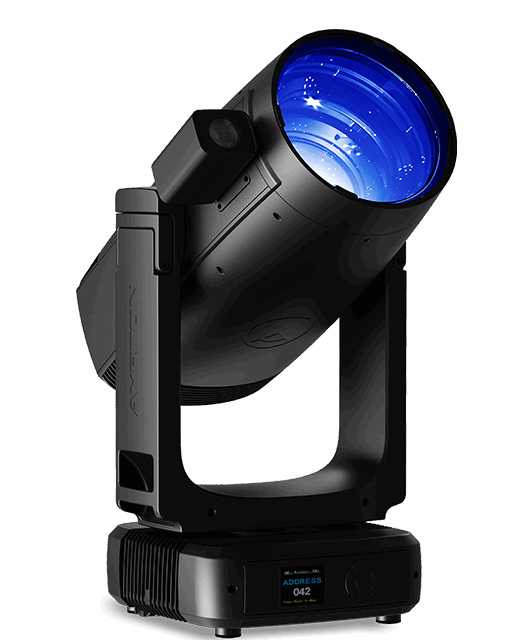

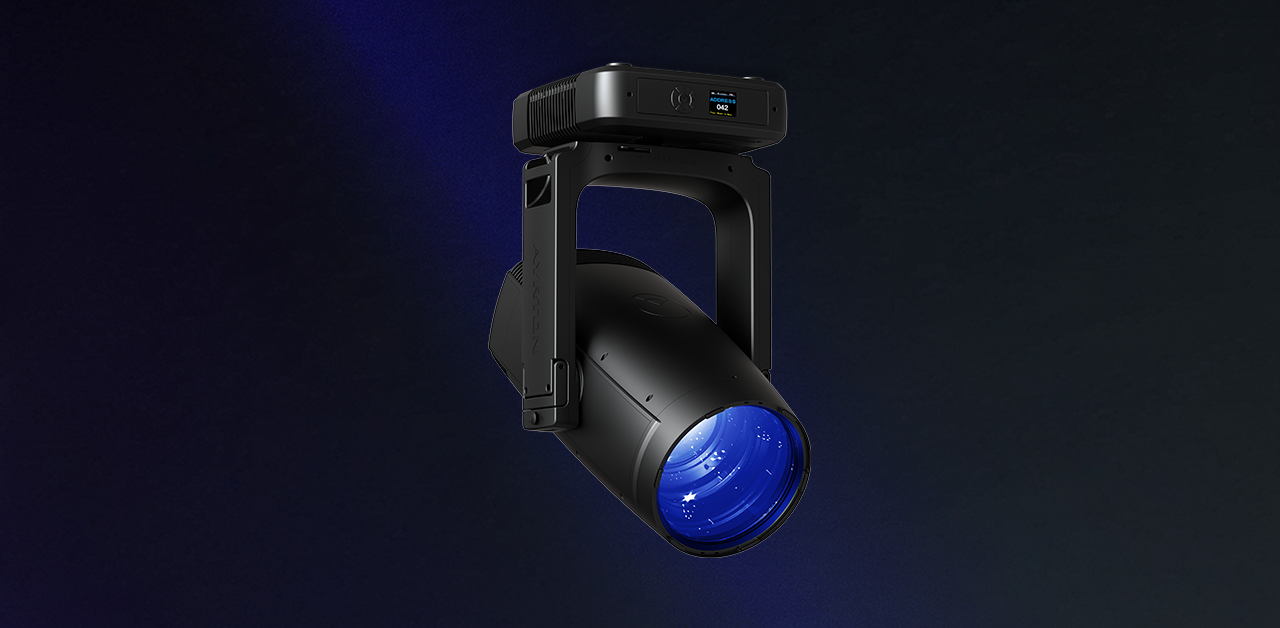

Ayrton AY012840 1,200W LED Profile Followspot, 2.9 to 43 Degree
Overview
An optional camera enables EagleStrike to function as a remotely operated tracking spotlight. To create this uncompromising and unmatched extreme-luminaire, Ayrton developed an oversized 270 mm front lens weighing 7.7 kg, delivering an ultra-intense 2.9° beam. Its proprietary 13-lens optical system offers a 15:1 zoom ratio and a working range of 2.9° to 43°, with the ability to narrow the beam to 0.9° or 2.5° using dedicated gobo reducers. Equipped with a brand-new high-efficiency 1,200-watt LED module, EagleStrike outputs a luminous flux of 55,000 lm at a colour temperature of 6500 K, and achieves a record-breaking illuminance of over 100,000 lux at 10 metres. The fixture introduces an entirely new ultra-fast CMY flag-based colour mixing system, capable of matching the speed of Ayrton’s ‘ultimate’ series luminaires. A progressive CTO offers subtle tuning from 2900 K to 6500 K. The colour section includes six complementary colour filters, two CRI enhancement filters, one minus green, one gobo correction and one multi-colour filters.
Specifications
OPTICS
- 13-element 15:1 zoom high-resolution optic system
- Beam aperture: 2.9° to 43°
- Beam reducer : 0.9° & 2.5°
- Tempered anti-reflective coated lenses
- Oversize 270 mm frontal lens for greater performance
LIGHT SOURCE
- 82,000 lumens white light engine
- Total luminaire output: up to 55,000 lumens (integrating sphere measurement, Stage Fan mode)
- Lux at 10 m: over 100,000 lx (narrow angle)
- Colour temperature output: 6500 K
- CRI: greater than 70
- Rated life (L70): up to 40,000 hours
- Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- Pan and tilt automatic repositioning
- Moving-head range: infinite (pan), 270° (tilt)
COLOURS
- Sophisticated colour mix system providing CMY colour mixing
- Variable CTO colour temperature correction
- Fixed colour wheel with six complementary colours
- Fixed colour wheel with two CRI optimisation filters, a minus green, a gobo correction and multicolour filters
GOBOS
- Indexable rotating gobo wheel with five high precision glass gobos, 2 beam reducers plus open position
- Indexable rotating gobo wheel with five metal gobos, 2 multicolor filters, plus open position
- Adjustable-speed rotating gobo in both directions
- Gobo diameter: 30 mm
- Image diameter: 19 mm
- Gobo thickness: 1.1 mm (Glass gobo), 0.5 mm (Metal gobo), 2.2 mm (Multicolour gobo)
FRAMING SYSTEM
- 4 individually positionable shutter blades on a 100% surface area in all positions
- Rotation of the shutter blades module: +/- 90°
IRIS DIAPHRAGM
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
FROST
- Light frost (1°) to soften the edge of the beam
- Heavy frost (5°) for Wash effects
EFFECTS
- Focusable graphic animation effect-wheel with continuous rotation in both directions
- 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
HARDWARE FEATURES
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo RDM receiver from LumenRadio
- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ArtNet and sACN connection
- IP65 RJ45 for optional NDI Camera
- IP65 PowerCON TRUE1 TOP male connector for power connection
- Option for an IP65 NDI Camera holder
CONTROL
- DMX 512 protocol, through IP65 DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Main/Follow modes
- ArtNet & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Choice of 2 DMX modes (from 44 to 66 DMX channels)
POWER SUPPLY
- Electronic power supply with active PFC
- 120 to 240 Volts – 50/60Hz
- Power: 1,450 W maximum
- Power: 1,295 W typical consumption at 230 V
COOLING SYSTEM
- Advanced high-performance cooling system
- IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes including Super Silent Mode
- Safety protection against excess temperature
HOUSING
- Moving-head skeleton made of aluminium metal plates
- Head in die-cast aluminium
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Arms moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Four-side handles for transportation
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
