    • Ayrton AY012341 Ayrton Rivale IP65 LED Wash, 4 to 57 Degree

    MSRP: $12,158.33
    $9,118.75
    (You save $3,039.58 )
    SKU:
    AY012341
    Availability:
    Typically ships in 3-5 business days.
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

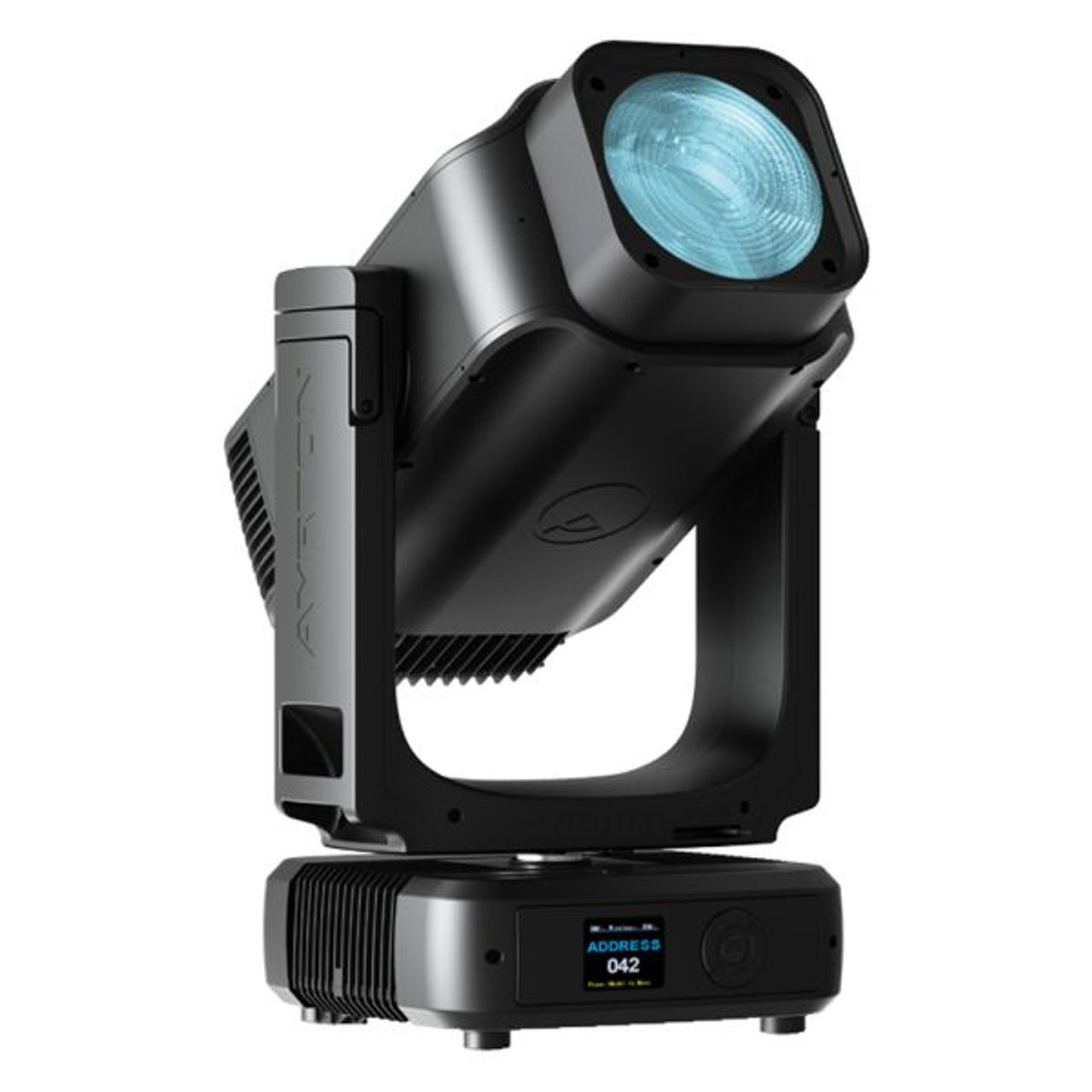

    Ayrton AY012341 Ayrton Rivale IP65 LED Wash, 4 to 57 Degree

    Overview

    The Ayrton Rivale Wash is a high-performance LED moving head wash luminaire that stands as the first ultra-equipped fixture in Ayrton's "ULTIMATE" series. Designed for mixed indoor and outdoor use, including in harsh, salty environments, the Rivale Wash offers a unique visual signature and versatility that is unmatched in its category. Weighing only 29.7 kg, it delivers exceptional output and performance, with a luminous flux of 28,000 lumens, making it an ideal solution for large-scale events, installations, and performances.

    The Rivale Wash is equipped with an advanced optical system featuring 12 high-quality lenses and a 14:1 zoom ratio, with a zoom range from 4° to 57°. This allows the fixture to project both ultra-tight beams and wide, soft washes, making it versatile for a variety of lighting designs. The 170 mm front lens enhances the performance of the system, ensuring that the luminaire delivers consistent and uniform light without any hot spots. The fixture is also designed with a high-definition Fresnel optical structure, which significantly improves colour mixing and delivers 10% more light output compared to conventional lenses, making it an incredibly efficient fixture in terms of light output and energy consumption.

    At the heart of the Rivale Wash is a 430W high-efficiency sealed mono-block LED module calibrated at 6500K, delivering perfect light neutrality with a total output of up to 28,000 lumens. The module's rated life (L70) extends to 40,000 hours, ensuring that the fixture performs reliably for years, even under intensive use. The sophisticated CMY colour-mixing system, combined with a variable CTO (Color Temperature Orange) filter, allows for smooth, continuous transitions between colours and precise control over the light's colour temperature, ranging from 2700K to 6500K. A seven-position colour wheel with special filters further enhances the fixture's ability to produce a wide palette of vivid pastels and saturated colours, ensuring that it can meet the demands of any creative lighting application.

    In addition to its colour-mixing system, the Rivale Wash features a highly flexible framing system that allows precise control over the light output. The four positionable shutter blades provide full 100% surface area control and can be rotated up to +/- 90° to shape the light exactly as needed. The fast 15-blade iris diaphragm enhances the fixture's ability to fine-tune the light beam, while two frost filters - light and heavy - allow for seamless adjustment of the diffusion, from sharp and focused to soft and hazy. These features make the Rivale Wash ideal for creating subtle atmospheres or dramatic lighting effects, depending on the designer's needs.

    The Rivale Wash also includes a wide array of gobo and effect capabilities. It features six high-precision rotating glass gobos and a scrim filter that can be used for reducing light intensity at shallow angles. The gobo system is complemented by an effect wheel with continuous rotation in both directions, enabling graphic animation effects. Additionally, the two rotating prisms (5-facet circular and 4-facet linear) offer even more creative possibilities for volumetric effects. Whether used for stage productions, concerts, or installations, the Rivale Wash provides designers with the tools to create stunning visual effects and lighting designs that captivate audiences.

    Designed with both versatility and durability in mind, the Rivale Wash is housed in an IP65-rated, rugged, yet lightweight frame constructed from aluminium and steel plates. It features a die-cast composite alloy base and moulded covers made from self-extinguishing fire-retardant ABS PC. The fixture's housing ensures that it can withstand the rigors of outdoor environments while maintaining excellent heat dissipation, thanks to its aluminium and copper heatsinks. The fixture is also equipped with IP65 connectors for power and DMX, ensuring reliable operation even in demanding environments.

    The Rivale Wash also boasts an advanced liquid cooling system with self-adjusting variable-speed fans for silent operation. The selectable ventilation modes, including a "Super Silent Mode," ensure that the fixture runs quietly in noise-sensitive environments, such as theater productions or broadcast events. With its combination of advanced technology, flexible features, and durable construction, the Rivale Wash is the perfect choice for professionals who demand exceptional performance in both indoor and outdoor lighting applications.

    Features

    • 12 high-quality lenses with 14:1 zoom ratio and beam range of 4° to 57° for versatile wash effects
    • 430W high-efficiency LED module calibrated at 6500K delivering up to 28,000 lumens
    • CMY colour-mixing system with variable CTO for smooth transitions between colours
    • Seven-position colour wheel and special filters for a wide colour palette
    • High-definition Fresnel optical structure for improved colour mixing and light output
    • Four individually positionable shutter blades for precise control of light shapes
    • Fast 15-blade iris diaphragm for beam optimization and fine control
    • Two frost filters (light and heavy) for seamless diffusion adjustments
    • Six high-precision rotating glass gobos and an effect wheel with continuous rotation
    • Two rotating prisms (5-facet circular and 4-facet linear) for volumetric effects
    • IP65 rating for protection against dust and water, ideal for outdoor use
    • Self-adjusting variable-speed fans for quiet operation with selectable ventilation modes
    • Rugged construction with aluminium and steel housing, and fire-retardant ABS PC covers
    • Advanced liquid cooling system for efficient heat management and silent operation
    • Compatible with DMX 512, ArtNet, and sACN protocols for easy integration
    • Suitable for use in extreme environments with a wide operating temperature range from -4°F to 113°F

    Specifications

    Optics

    • 12-element 14:1 zoom high-resolution optic system
    • Beam aperture: 4° to 57°
    • Fast motorised linear zoom
    • Tempered anti-reflective coated lenses
    • 170 mm frontal lens

    Light Source

    • 35,000 lumens white light engine
    • Total luminaire output: up to 28,000 lumens
    • Colour temperature output: 6500 K
    • CRI: greater than 70
    • Rated life (L70): up to 40,000 hours
    • Flicker-free source management suitable for TV applications and video-recorded events

    Movement

    • Extremely accurate positioning
    • Moving-head operated via either 8- or 16-bit resolution
    • High-resolution stepper motors for smooth movement
    • Pan and tilt automatic repositioning
    • Infinite pan and tilt rotation

    Colours

    • Sophisticated CMY colour mixing system
    • Variable CTO colour temperature correction
    • Variable CRI improvement filter
    • Fixed colour wheel with seven complementary colours

    Gobos

    • Indexable rotating gobo wheel with six high-precision glass gobos and a scrim filter
    • Progressive scrim filter for reducing light intensity at shallow angles
    • Adjustable-speed rotating gobo in both directions
    • Gobo diameter: 25.5 mm
    • Image diameter: 18 mm
    • Gobo thickness: 1.1 mm

    Framing System

    • Four individually positionable shutter blades on a 100% surface area
    • Rotation of shutter blades module: +/- 90°

    Iris Diaphragm

    • Fast iris diaphragm with adjustable dynamic effects
    • Iris range: 15% to 100% open

    Frost

    • 0% to 100% variable linear frost

    Effects

    • Focusable CMY & RGB graphic animation effect-wheel with continuous rotation
    • Beam ovalising filter, indexable and rotatable

    Dimmer / Strobe

    • Electronic dimmer for light adjustment from 0 to 100% without colour variation
    • Strobe effect with speed adjustment from 1 to 25 flashes per second

    Software Features

    • Local DMX addressing and optional parameters through built-in LCD control panel
    • Remote DMX addressing through RDM controller
    • Information menu with hour counter, temperature, and software version

    Hardware Features

    • Graphic LCD display with flip function
    • Five menu buttons for function settings
    • Excess temperature protection
    • Integrated wireless CRMX TiMo RDM receiver
    • IP65 XLR 5-pin male and female connectors
    • IP65 RJ45 IN/OUT connectors for ArtNet
    • IP65 PowerCON TRUE1 TOP male and female connectors

    Control

    • DMX 512 protocol, via DMX cable or wireless system
    • DMX-RDM compatible
    • Stand-alone mode and Master/Slave modes
    • ArtNet & sACN protocol through Ethernet cable
    • Local control panel with IP65 LCD display
    • Footprint of 60 DMX channels

    Power Supply

    • Electronic supply with active PFC
    • 100 to 240 Volts - 50/60Hz
    • Power: 700 W maximum

    Cooling System

    • Advanced liquid cooling system
    • IP68 self-adjusting variable speed fans
    • Selectable ventilation modes including Super Silent Mode
    • Safety protection against excess temperature

    Housing

    • Skeleton made of aluminium and steel plates
    • Base in die-cast composite alloy
    • Heatsinks in aluminium and copper
    • Moulded covers in fire-retardant ABS PC (V0 class)
    • Four-side handles for transportation
    • Four heavy-duty feet for stability
    • IP65 protection rating
    • Exterior finish: black (Carbon)

    Installation

    • Two Omega 1/4 turn brackets for standard clamps
    • Four 1/4 turn locking fittings for Omega brackets
    • Safety cable attachment point

    Operating Parameters

    • Suitable for all operating positions
    • Maximum ambient temperature: 113 °F
    • Minimum ambient temperature: -4 °F
    • Minimum usage distance: 6.56 ft

    Compliance

    • EMC Directive 2014/30/EU
    • LVD Directive 2014/35/EU
    • UL 1573
    • FCC Part 15, Subpart B:2018

    Physical

    • Product Dimensions: 14.17 x 26.61 x 12.44 inches (l x h x d)
    • Flight-case Foam Dimensions: 19.09 x 22.05 x 22.24 inches (l x h x d)
    • Product Weight: 65.5 lbs

    Other Details

    1. Warranty a. Ayrton only warrants its products against defects in material or workmanship. b. Product which is under warranty and is faulty out of the box or within 100 hours of use (as defined on the fixture’s Total Life Hours counter) can be advanced replaced for a new fixture or spare parts can be sent out, depending on the customer’s preference. i. The customer should call or email Ayrton with the following information: 1. Contact name and details. 2. Product serial number. 3. Date of purchase. 4. Vendor name. 5. Description of fault. 6. Shipping address. 7. Preference for replacement or repair. ii. Ayrton will provide the customer with a Return Material Authorisation number which should be placed clearly on the package which is returned. c. Product which is under warranty and is faulty after 100 hours of use (as defined on the fixture’s Total Life Hours counter) will have advanced replacement spare parts sent out. i. The customer should call or email Ayrton with the following information: 1. Contact name and details. 2. Product serial number. 3. Date of purchase. 4. Vendor name. 5. Description of fault. 6. Shipping address. ii. Ayrton will provide the customer with a Return Material Authorisation number which should be placed clearly on the package which is returned. d. Ayrton will provide economy shipping, one way, for all warranty related items. e. Although all warranty parts are free of charge, Ayrton will issue an invoice for advanced replacement fixtures or parts and a credit will be applied to the account when the faulty unit (fixture or part) is received back at Ayrton. Occasionally and at Ayrton’s sole discretion, Ayrton may waive the requirement to return the faulty part or fixture. f. At any time, the customer is able to return a fixture, under warranty, to Ayrton, for repair. This repair will be carried out free of charge and Ayrton will pay economy shipping one way. All additional charges, such as import duties, should they be payable, will be the customer’s responsibility. i. The customer should call or email Ayrton with the following information: 1. Contact name and details. 2. Product serial number. 3. Date of purchase. 4. Vendor name. 5. Description of fault. ii. Ayrton will then provide the customer with a Return Material Authorisation number which should be placed clearly on the package which is returned. This will allow us to track the incoming repair and deal with it appropriately. g. Warranty Period for repair of fixtures under warranty. i. All repairs made to fixtures under warranty will fall under the fixture’s original warranty period or benefit from a 90 day warranty period, whichever is more beneficial to the customer. ii. An exception to this rule is for White Light Engines which will benefit from a 2 year warranty period, starting from date of repair. h. LED Engine warranty covers physical failure of the LED engine itself. It does not extend to: i. Any electronic circuits driving, controlling or monitoring the LED engine. ii. To the maintenance of lumen (l70) levels or colour stability. iii. To units deployed in applications where they are in continuous use of more than 14 hours per day. iv. To units deployed in areas where the ambient temperature falls outside the stated temperature operating ranges for said unit. v. To units which have had engines replaced by anyone other than an Ayrton certified/ trained technician. vi. To units deployed in permanent outdoor installations. vii. To units used contrary to the instructions to be found in the manual. i. Warranty Exclusions. i. Damage caused by the sun, not limited to lens and cover damage. In daylight circumstances Ayrton lights must always be pointed away from the sun. Internal damage may occur even when the lens of the fixture is at an angle offset to the sun. It is best practice to point the fixture lens to a position opposite the sun. ii. Damage caused by other fixtures (including lasers) when said external light source is directed into the lens of the fixture. iii. Damage caused by storing fixtures when wet or dirty. iv. Damage caused by using abrasive cleaning agents on covers. v. Damage by improper use and improper or incorrect installation. vi. Damage caused by neglect or abuse. This includes accidental dropping, penetration of water, incorrect mounting or exposure to excessive temperatures or humidity. vii. Damage due to wear and tear sustained during normal use. viii. Using the fixture contrary to the instructions provided in the user manual. 2. Service a. Product which is no longer under warranty can have spare parts purchased from Ayrton or your Distributor. b. Customers are also able to send product in to Ayrton for repair. i. The customer should call or email Ayrton with the following information: 1. Contact name and details. 2. Product serial number. 3. Date of purchase. 4. Vendor name. 5. Description of fault. 6. Instruction on whether or not the customer would like a repair estimate (25 Euros exc. VAT) prior to the start of the repair. ii. Ayrton will then provide the customer with a Return Material Authorisation number which should be placed clearly on the package which is returned. This will allow us to track the incoming repair and deal with it appropriately. iii. Ayrton charges 70 Euros an hour (exc. VAT) for repair work excluding parts. c. Ayrton does not cover freight costs for non-warranty repairs or parts shipments. These are solely the responsibility of the customer. d. Warranty Period for repair of fixtures not under warranty. i. All repairs made to fixtures not under warranty will benefit from a 90 day warranty period, from date of repair. ii. An exception to this rule is for White Light Engines which will benefit from a 2 year warranty period, starting from date of repair.
